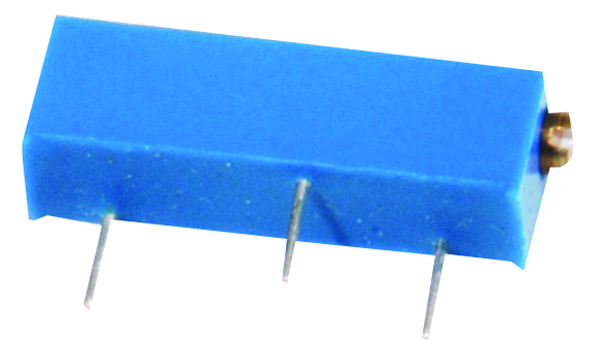

MULTICOMP PRO MCWIW10121103LF Trimmer Potentiometer
The MCWIW1012-1-103-LF is a 10kΩ, 500mW, 22-turn through-hole trimmer potentiometer with infinite resolution. It features ±10% resistance tolerance and dielectric strengths of 101.3kPa at 600VAC and 8.5kPa at 350VAC. The component offers a 200-cycle rotational life and operates within a temperature range of -55°C to +125°C. It has a maximum torque of 15nN-m, adjustable voltage of 0.05%, and power ratings up to 0.5W at 70°C. Suitable for industrial, sealed, and cement applications, it provides precise fine-tuning for control systems.
MULTICOMP PRO MCWIW10121103LF Trimmer Potentiometer Specifications:
- Resistance: 10kΩ ±10% tolerance
- Power Rating: 0.5 Watt at 70°C, 0 Watt at 125°C
- Adjustment: 22 turns minimum, infinite resolution
- Dielectric Strength: 101.3kPa at 600VAC, 8.5kPa at 350VAC
- Rotational Life: 200 cycles
- Temperature Range: -55°C to +125°C
- Torque: Max 15nN-m
- Environmental: Vibration 98m/s², Shock 390m/s², Load Life 1000 hrs
- Physical: 3/4 inches rectangular, sealed, industrial grade
- Resistance Tolerance: ±10%
- Resistance Range: 20Ω to 500kΩ
- Electrical: Max contact resistance variation 3% or 30MΩ
- Insulation Resistance: 500V DC, minimum 1000MΩ
Buy the Multicomp Series Trimmer Potentiometer Sealed Adjustment: MCWIW10121103LF
Discover the high-performance Multicomp Trimmer Potentiometer MCWIW1012-1-103-LF, featuring 10kΩ resistance, 22-turn adjustment, sealed industrial design, and infinite resolution. Perfect for precise electronic calibration, it withstands harsh environments with a temperature range from -55°C to +125°C and robust dielectric strength. Its 200-cycle rotational life and reliable dielectric insulation make it ideal for automation, control systems, and manufacturing. Quickly purchase online to enhance your projects with quality control components that deliver accuracy and durability for all industrial needs.
Order your Multicomp SeriesMCWIW1012-1-103-LF sealed trimmer potentiometer today and ensure precise calibration for industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCWIW10121103LF?
You can click on the BUY or RFQ button to purchase MCWIW10121103LF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCWIW10121103LF?
You can download the MCWIW10121103LF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCWIW10121103LF?
MULTICOMP PRO
