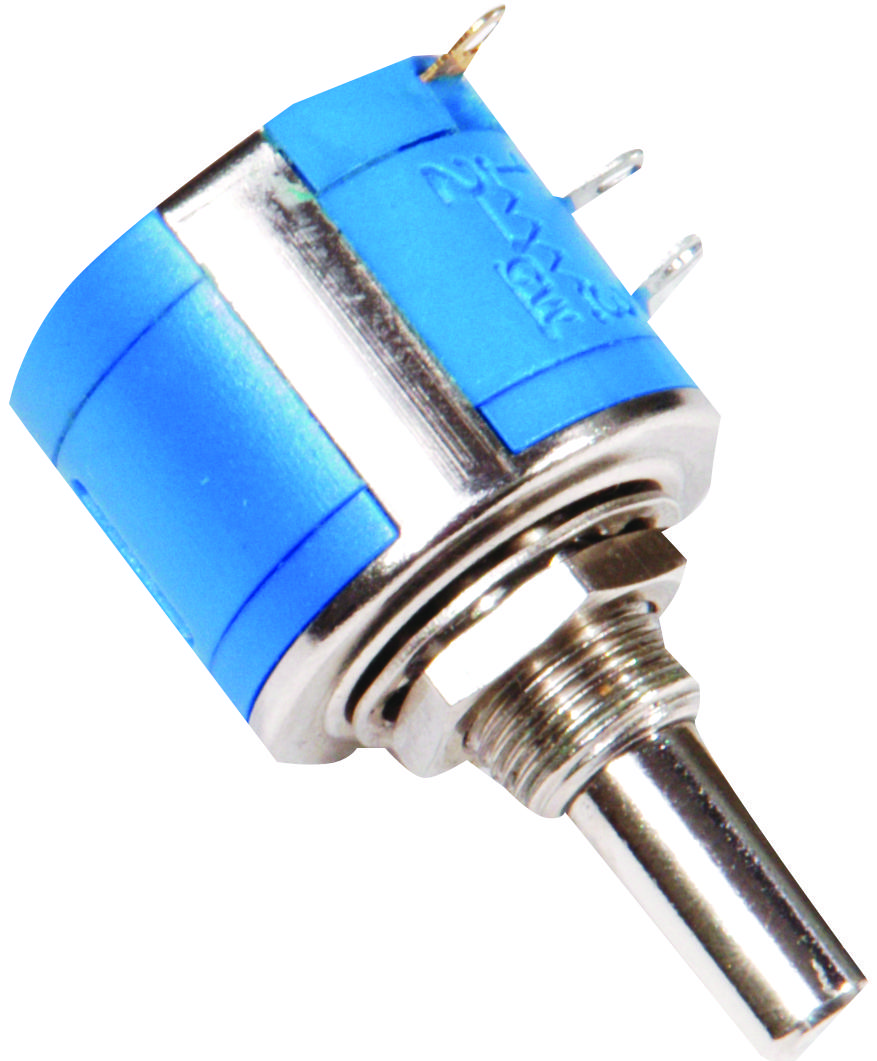

MULTICOMP PRO MCWWPT10101LF Industrial Wirewound Potentiometer
The precision wirewound potentiometer from Multicomp Pro is a durable, high-quality multiturn industrial component designed for precise resistance adjustment. Featuring a metal shaft and bushing with a 6mm diameter, it offers a resistance range from 100Ω to 100kΩ and 210 turns for fine tuning. Capable of operating within -55°C to +125°C, it provides stability with a resistance tolerance of ±5%, and an electrical angle of 360°, ensuring consistent performance in demanding environments. Its rugged construction supports high vibration, shock resistance, and long mechanical life, making it ideal for industrial automation, control systems, and instrumentation.
MULTICOMP PRO MCWWPT10101LF Industrial Wirewound Potentiometer Specifications:
- Resistance Range: 100Ω to 100kΩ
- Number of Turns: 210
- Resistance Tolerance: ±5%
- Electrical Angle: 360°
- Effective Electrical Angle: 360° -10° minimum
- Maximum Resistance Shift: 5%
- Temperature Range: -55°C to +125°C
- Power Rating: 2 Watts at 70°C
- Temperature Coefficient: ±100ppm/°C
- Vibration: 98 m/s² (1% ATR, 1% AVR)
- Shock: 490 m/s² (1% ATR, 1% AVR)
- Rotational Life: 1,000,000 shaft revolutions
- Insulation Resistance: ≥1000 MΩ at 500V DC
- Dielectric Withstanding Voltage: 900V AC at 101.3 kPa
- Mechanical: Torque max 36 mN·m, Stop strength max 300 mN·m
- Material: Metal shaft, bushing for bushing mount design
- Physical Dimensions: Shaft diameter 6mm, suitable for industrial control applications
Buy the Multicomp Pro MCWWPT-10 – Reliable Industrial Wirewound Potentiometer for Precise Adjustments
Purchase the Multicomp Pro industrial wirewound potentiometer MCWWPT-10 online today for high accuracy and durability in demanding environments. Its 210 turns and resistance range from 100Ω to 100kΩ make it ideal for precise resistance adjustment in industrial automation, control systems, and instrumentation. Designed with a metal shaft and bushing for bushing mount installation, it features a rugged construction supporting high vibration, shock resistance, and long operational life. Buy online now and benefit from fast delivery, trusted quality, and excellent customer support for your industrial projects.
Order your Multicomp Pro advanced wirewound potentiometer MCWWPT-10 today and ensure reliable control in industrial automation projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCWWPT10101LF?
You can click on the BUY or RFQ button to purchase MCWWPT10101LF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCWWPT10101LF?
You can download the MCWWPT10101LF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCWWPT10101LF?
MULTICOMP PRO
