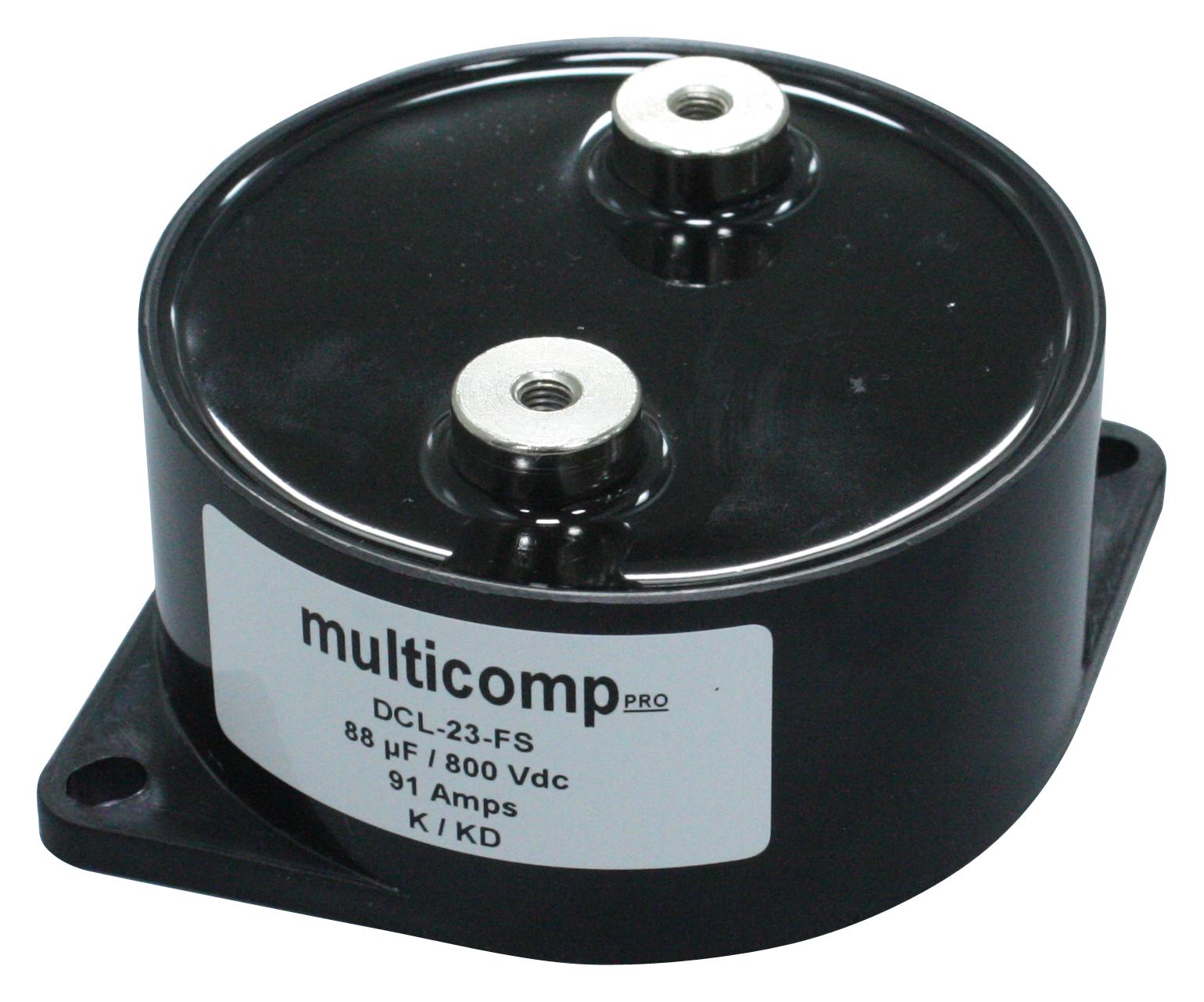

MULTICOMP-PRO MP003996 DC Link Film Capacitor
The DC Link Film Capacitor with screw/stud terminals is designed for high-performance energy storage and filtering applications in power electronics. Constructed with metallized polypropylene film and featuring a UL 94-VO flame-retardant enclosure, it offers low inductance, low ESR, and high thermal conductivity for reliable operation in inverter and motor drive systems. Capable of handling voltages up to 1600V DC and capacitance values between 30µF and 265µF, it ensures longevity with a life expectancy of up to 100,000 hours, making it ideal for wind, solar, and electric vehicle applications.
MULTICOMP-PRO MP003996 DC Link Film Capacitor Specifications:
- Electrode material: Metallised polypropylene film
- Winding construction: Polypropylene film, metallised polypropylene film
- Enclosure: Preformed UL 94-VO plastic case with thermosetting resin-fill
- Terminals: Nickel plated brass
- Capacitance range: 30µF to 265µF
- Capacity tolerance: ±10%
- Rated voltage V DC: 700V, 800V, 900V, 1000V, 1200V, 1400V, 1600V, 1800V
- Test voltage: 1.3x rated voltage V DC for 60 seconds, terminal to case KV AC at 50Hz for 60 seconds
- Dissipation factor (Tan d): 0.0015 at 100Hz and 25°C
- Temperature range: 0°C to +105°C
- Insulation resistance: 1000 MΩ × µF at 25°C
- Markings: Grade, capacitance in pF, rated voltage, max current, tolerance, manufacturing code, part number
- Dimensions: 85x40mm to 85x79mm, various sizes specified
Buy the Buy Multicomp DC Link Film Capacitor Part Number MP003996 Online
Purchase the high-performance Multicomp DC Link Film Capacitor MP003996 online today. Featuring metallized polypropylene construction, low ESR, and voltage ratings up to 1600V, it’s ideal for wind, solar, and electric vehicle inverters. Designed with flame-retardant UL 94-VO casing and capable of handling capacitance from 30µF to 265µF, its robust design offers a life expectancy of 100,000 hours. Enhance your power electronics with this reliable, efficient capacitor suited for demanding energy storage and filtering applications.
Order your Multicomp Series MP003996 high-voltage DC link film capacitor today and ensure your inverter and motor drive systems operate with dependable reliability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP003996?
You can click on the BUY or RFQ button to purchase MP003996 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP003996?
You can download the MP003996 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP003996?
MULTICOMP-PRO
