MULTICOMP PRO ME03050812 Pluggable Terminal Block
The pluggable terminal block offers a reliable connection solution for industrial wiring with a 5.08 mm pitch and various pole configurations from 2 to 12. Constructed with insulating polyamide 66 bodies and steel zinc-chromate plating, it withstands voltages up to AC300V and temperatures from -40°C to +105°C. Its wire range spans 14-24 AWG, with easy screw torque of 7 lb-inch. Suitable for PCB mounting, these lead-free components ensure safety, durability, and RoHS compliance for automation or control applications, making them ideal for reliable electrical connections in industrial environments.
MULTICOMP PRO ME03050812 Pluggable Terminal Block Specifications:
- Pitch: 5.08mm (0.200 inches)
- Voltage Rating: AC300V, Min 2000V insulation withstand
- Current Rating: 16 Amps
- Operating Temperature: -40°C to +105°C
- Wire Range: 14AWG to 24AWG
- Material: Polyamide 66 insulating body and cover
- Contacts: Tin plated phosphor bronze
- Screw Torque: 7 lb-inch
- Dimensions: Varying by pole number, e.g., 2-pole length 11.76mm, 12-pole length 62.56mm
- Lead-Free: Yes, RoHS compliant
- Installation: PCB mounting
- Material Plating/Finish: Steel Zicc+Cr+*
- Insulation Resistance: >2000MQ
- Insulation Withstand Voltage: AC2000V min

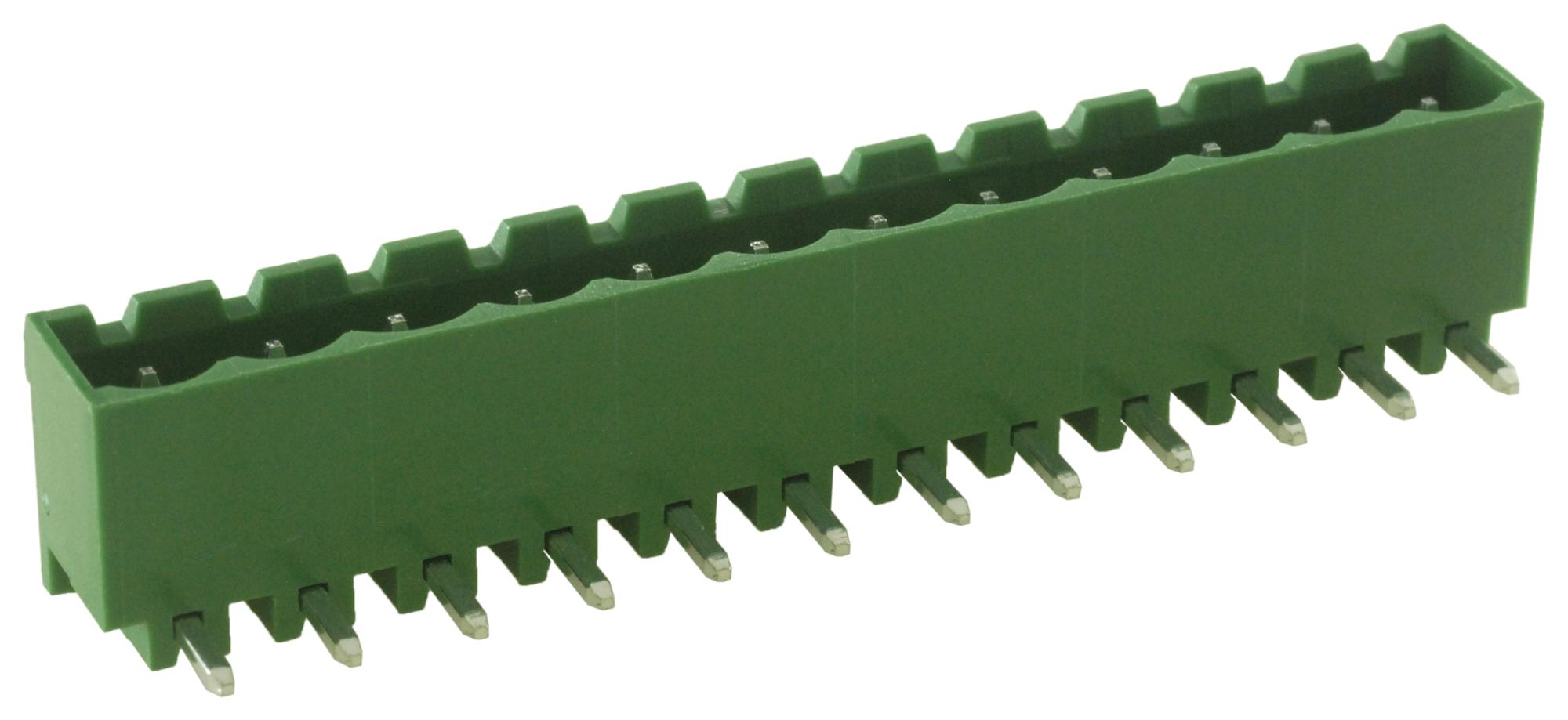

Buy the multicomp U03050812 – Reliable Terminal Blocks for Industrial Applications
Purchase the multicomp U03050812 terminal block online today for your industrial wiring needs. With a 5.08mm pitch, 12 poles, and RoHS compliance, this high-quality component guarantees reliable connections, ease of installation, and durability in automation, control systems, and manufacturing environments. This component features a wire range of 14-24 AWG, withstands voltages up to AC300V, and operates effectively within -40°C to +105°C temperature range. Secure your electrical connections with this versatile and lead-free terminal block designed for PCB mounting and industrial use.
Get multicomp U03050812 today—designed for secure and long-lasting industrial wiring connections with high current capacity.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ME03050812?
You can click on the BUY or RFQ button to purchase ME03050812 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ME03050812?
You can download the ME03050812 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ME03050812?
MULTICOMP PRO
