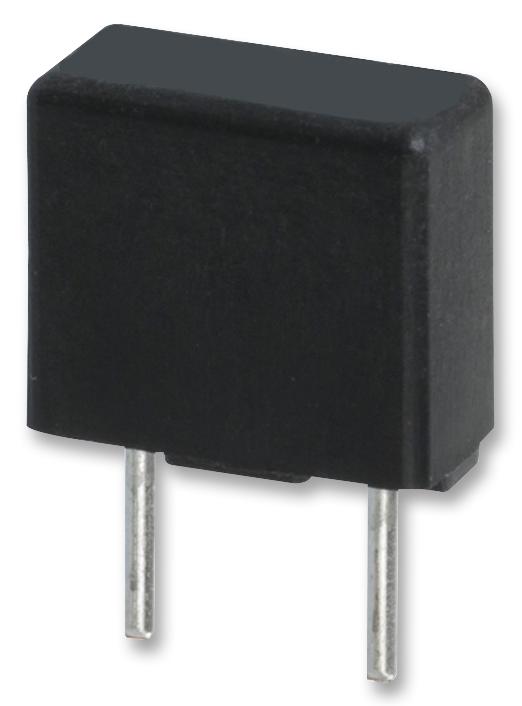

MULTICOMP PRO MCMSF63A250V Radial Fuse
This radial fuse by Multicomp Pro is designed for fast-blow operation, rated at 250V AC, and features a thermoplastic case with radial lead mounting. It offers a compact external size with a length of 7.7mm, width of 8.35mm, and depth of 4.3mm, suitable for circuit protection in various electrical devices. The fuse has a lead diameter of 0.62mm and lead length of 222mm, with a spacing of 5.08mm, supporting temperatures from -55°C to +125°C. Its high interrupting rating ensures safe operation in short-circuit conditions.
MULTICOMP PRO MCMSF63A250V Radial Fuse Specifications:
- Voltage Rating: 250V AC
- Blow Characteristic: FastActing
- Fuse Case Style: Radial Leaded
- Case Material: Thermoplastic
- External Depth: 4.3mm
- External Length / Height: 7.7mm
- External Width: 8.35mm
- Fuse Mounting: Through Hole
- Lead Diameter: 0.62mm
- Lead Length: 222mm
- Lead Spacing: 5.08mm
- Operating Temperature: -55°C to +125°C
- Interrupting Ratings: 35 amperes or 10 x rated current, whichever is greater at 250V AC
- Materials: Black Thermoplastic body, Tin-lead plated alloy pin
- Shock & Vibration Resistance: MIL-STD-202, Method 213 & 201
- Salt Spray Resistance: MIL-STD-202, Method 101
- Solder Heat Resistance: MIL-STD-202, Method 210
- Physical Durability: MIL-STD-202, Method 302 & 107
Buy the Multicomp Series Radial Fuse: MCMSF63A250V
Purchase the reliable Multicomp SeriesMCMSF63A250V radial fuse online today for your electrical protection needs. With a fast-blow characteristic rated at 250V AC, this fuse features a thermoplastic case, radial lead mounting, and high interrupting ratings, ensuring safety and durability. Its compact size with 7.7mm length and 8.35mm width makes it suitable for various circuit configurations. Protect your electrical devices effectively by ordering this high-quality fuse online and enjoy quick delivery, competitive prices, and authorized support for your project success.
Order your Multicomp SeriesMCMSF63A250V fast-acting radial fuse today and ensure reliable circuit protection in your electrical systems.
