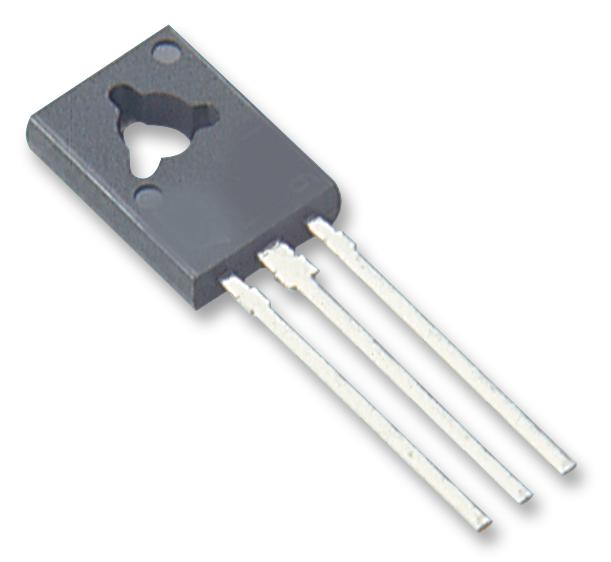

MULTICOMP PRO MJE172 Bipolar Transistor
This bipolar transistor from Multicomp Pro is rated for 3A collector current and 80V collector-emitter voltage, housed in TO-126 package, ideal for low power audio amplifiers and switching applications. Designed for reliable performance in low power and high speed switching, it features a collector-emitter saturation voltage of 0.9V at 1.5A. The device's maximum junction temperature is +150°C, with a total dissipation of 1.5W. Suitable for various electronic circuits requiring robust, high-speed switching with excellent gain and switching characteristics.
MULTICOMP PRO MJE172 Bipolar Transistor Specifications:
- Collector - Base Voltage: 100V
- Collector - Emitter Voltage: 80V
- Emitter - Base Voltage: 7V
- Continuous Collector Current: 3A
- Base Current: 1A
- Total Device Dissipation: 1.5W
- Operating Junction Temperature Range: -65°C to +150°C
- Storage Temperature Range: -65°C to +150°C
- Collector - Emitter Breakdown Voltage: 80V
- Collector Cut-off Current: 0.1 pA
- Emitter Cut-off Current: 0.1 pA
- DC Current Gain hFE: 30 to 250
- Collector - Emitter Saturation Voltage: 0.9V at 1.5A
- Base - Emitter Saturation Voltage: 2V at 3A
- Current Gain - Bandwidth Product: 50 MHz
- Output Capacitance: 60 pF
- Package: TO-126
- Max Junction Temperature: +150°C
Buy the Multicomp MJE172 – Reliable Bipolar Transistor for Industrial Applications
Upgrade your electronic projects with the reliable bipolar transistor designed for high-speed switching and amplification. With a maximum collector current of 3A and collector-emitter voltage of 80V, the MJE172 in TO-126 package offers excellent performance in low power audio amplifiers and switching circuits. Its robust construction ensures durability up to 150°C junction temperature, with minimal saturation voltage for efficient operation. Purchase online now to enhance your electronic hardware with this proven component, ensuring longevity and consistent performance for your applications.
Get Multicomp MJE172 today—built for low power switching and high-speed amplification in industrial electronics.
