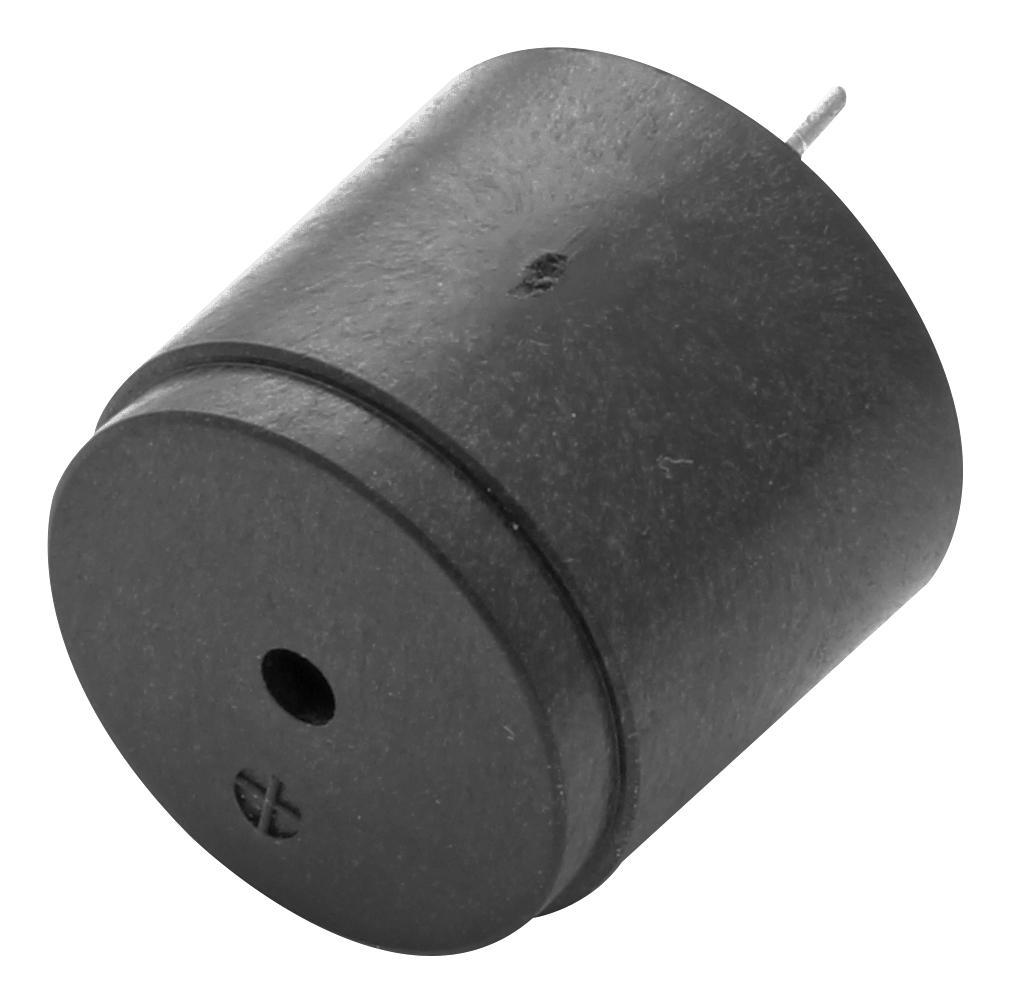

MULTICOMP PRO MP000297 Piezo Buzzer
This compact piezo buzzer features an internal drive circuit, making it ideal for space-constrained applications. It has a 15mm diameter with a pin spacing of 7.6mm, operating at a voltage range of 1-18V DC and resonating at approximately 4000Hz. The buzzer produces a high sound output of 85dB at 10cm, suitable for alert systems. Made with a Noryl housing and red copper lead pins, it is designed for continuous tone operation, withstanding temperatures from -40°C to +85°C. Its lightweight construction weighs 12.59 grams and complies with RoHS standards.
MULTICOMP PRO MP000297 Piezo Buzzer Specifications:
- Rated Voltage :12V DC
- Operating Voltage :1-18V DC
- Rated Current :20mA
- Sound output at 10cm :85dB
- Resonant Frequency :4000 ±500Hz
- Operating Temperature :30°C to +70°C
- Storage Temperature :-40°C to +85°C
- Weight :12.59 grams
- Housing Material :Noryl
- Lead Pin Material :Red Copper
- Dimensions :15mm diameter, pin spacing 7.6mm, tolerance +0.5mm
- Wave soldering and washing not allowed
- Tone : Continuous
Buy the Buy Multicomp Piezo Buzzer Part Number MP000297 Online
Get the high-performance Multicomp Piezo Buzzer MP000297 online today. This compact 15mm diameter component offers a loud 85dB sound output at 10cm, resonating at around 4000Hz. With a versatile operating voltage of 1-18V DC and continuous tone, it is perfect for alert and signaling applications in various environments. Made with durable Noryl housing and red copper pins, it withstands temperatures from -40°C to +85°C. Designed for easy integration into your projects, this RoHS compliant buzzer is a reliable and efficient choice for your electronic needs.
Order your Multicomp Piezo Buzzer MP000297 today and enhance your alert systems with reliable sound output and compact design.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP000297?
You can click on the BUY or RFQ button to purchase MP000297 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000297?
You can download the MP000297 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP000297?
MULTICOMP PRO
