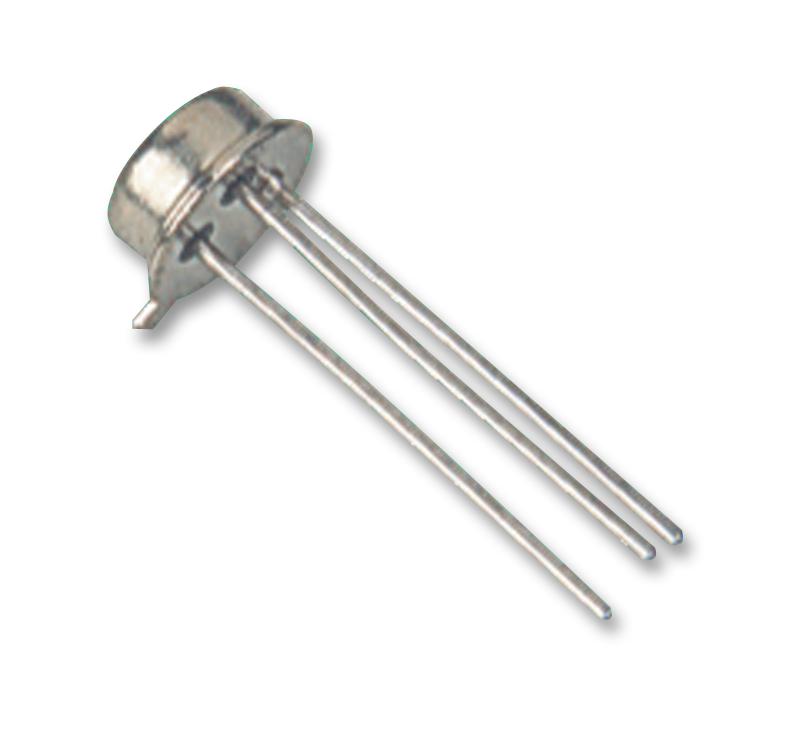

MULTICOMP-PRO MP001166 NPN Switching Transistor
This NPN silicon planar switching transistor supports a collector-emitter voltage of 40V and a collector current of 800mA, making it ideal for high-speed switching and amplifier applications. It features a TO-39 metal can package, ensuring durability and efficient heat dissipation. The transistor’s electrical and dynamic characteristics include a power dissipation of 800mW at 25°C, a high current gain exceeding 50 at 25°C, and fast switching times with a fall time under 60ns. Its compact physical dimensions and RoHS compliance make it suitable for various industrial and electronics projects.
MULTICOMP-PRO MP001166 NPN Switching Transistor Specifications:
- Collector-Emitter Voltage Vceo: 40V
- Collector Current Ic: 800mA
- Power Dissipation Po: 800mW at 25°C
- Power Derating: 4.57mW/°C above 25°C
- Operating Junction Temperature Tj: -65°C to +200°C
- Collector Base Voltage VcBo: 75V
- Emitter-Base Voltage VEBO: 6V
- Collector Cutoff Current: 10pA at 150°C
- Collector-Emitter Saturation Voltage Vce(sat): 0.6-1.2V at 150mA
- Base Emitter Saturation Voltage VBE(sat): 2V
- DC Current Gain hFE: 35 to 300, typical 100-300
- Frequency Response ft: >300MHz
- Package: TO-39 metal can, dimensions approximately 8.71mm x 4.82mm
- RoHS Compliant: Yes
Buy the Multicomp Series NPN Transistor: MP001166
Enhance your electronic designs with this robust NPN switching transistor featuring 40V collector-emitter voltage and 800mA current capacity. Packaged in a durable TO-39 metal can, it offers excellent heat dissipation, high current gain, and fast switching times suitable for industrial automation, amplifiers, and switching circuits. Its RoHS compliance ensures environmentally friendly manufacturing. Easily integrate this versatile transistor into your projects for reliable operation, outstanding performance, and long-term durability, making it a must-have component for electronics enthusiasts and professionals.
Order your Multicomp Series NPN transistor MP001166 today and give your electronic projects the dependable switching performance they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP001166?
You can click on the BUY or RFQ button to purchase MP001166 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001166?
You can download the MP001166 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP001166?
MULTICOMP-PRO
