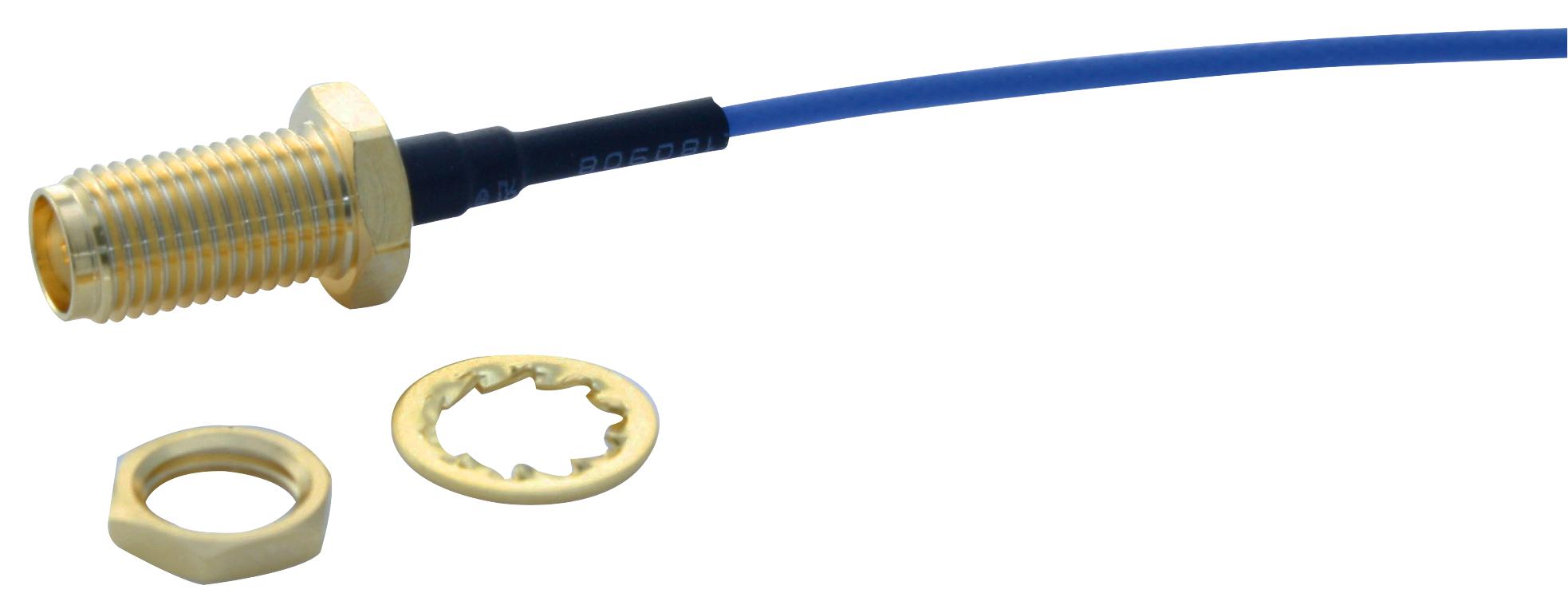

MULTICOMP-PRO MC001483 RF Coaxial Connector
This SMA Bulkhead Jack to SMA Plug multicomp provides reliable RF connections with impedance of 50Ω, supporting frequencies from DC up to 6 GHz. Designed for high performance, it features a maximum working voltage of 335 Vrms and dielectric withstanding voltage of 750 Vrms. The assembly includes a blue 100mm cable, crimped connectors, and black heat shrink tubing for secure installation. Suitable for RF applications requiring low insertion loss of -1.1 dB and VSWR of 1.65:1, it ensures excellent signal integrity and durability in various measurement and communication systems.
MULTICOMP-PRO MC001483 RF Coaxial Connector Specifications:
- Impedance: 50Ω
- Frequency Range: DC ~ 6 GHz
- Working Voltage: 335 Vrms Max
- Dielectric Withstanding Voltage: 750 Vrms Max
- Insulator Resistance: 5000MQ Min
- VSWR: 1.65:1 Max
- Insertion Loss: -1.1 dB Max
- Connector Type: SMA Bulkhead Jack to SMA Plug
- Cable Diameter: 1.37mm
- Color: Blue cable with black heat shrink tubing
- Dimensions: Length of cable 100mm, heat shrink tube diameter 2.5mm, length 15mm
Buy the Buy Multicomp SMA Bulkhead Jack to SMA Plug Part Number MC001483 Online
Purchase the Multicomp SMA Bulkhead Jack to SMA Plug MC001483 online today to ensure high-quality RF connections for your communication or measurement systems. This reliable connector set features 50Ω impedance, DC to 6 GHz frequency range, and low insertion loss, making it ideal for professional industrial and laboratory applications. The included blue cable, crimped connectors, and heat shrink tubing provide secure, durable, and stable connections. Enjoy quick delivery and trusted performance directly from our online store.
Buy Multicomp SMA Bulkhead Jack to SMA Plug MC001483 now and experience unmatched RF performance with durable connectors and low loss capabilities.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC001483?
You can click on the BUY or RFQ button to purchase MC001483 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001483?
You can download the MC001483 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC001483?
MULTICOMP-PRO
