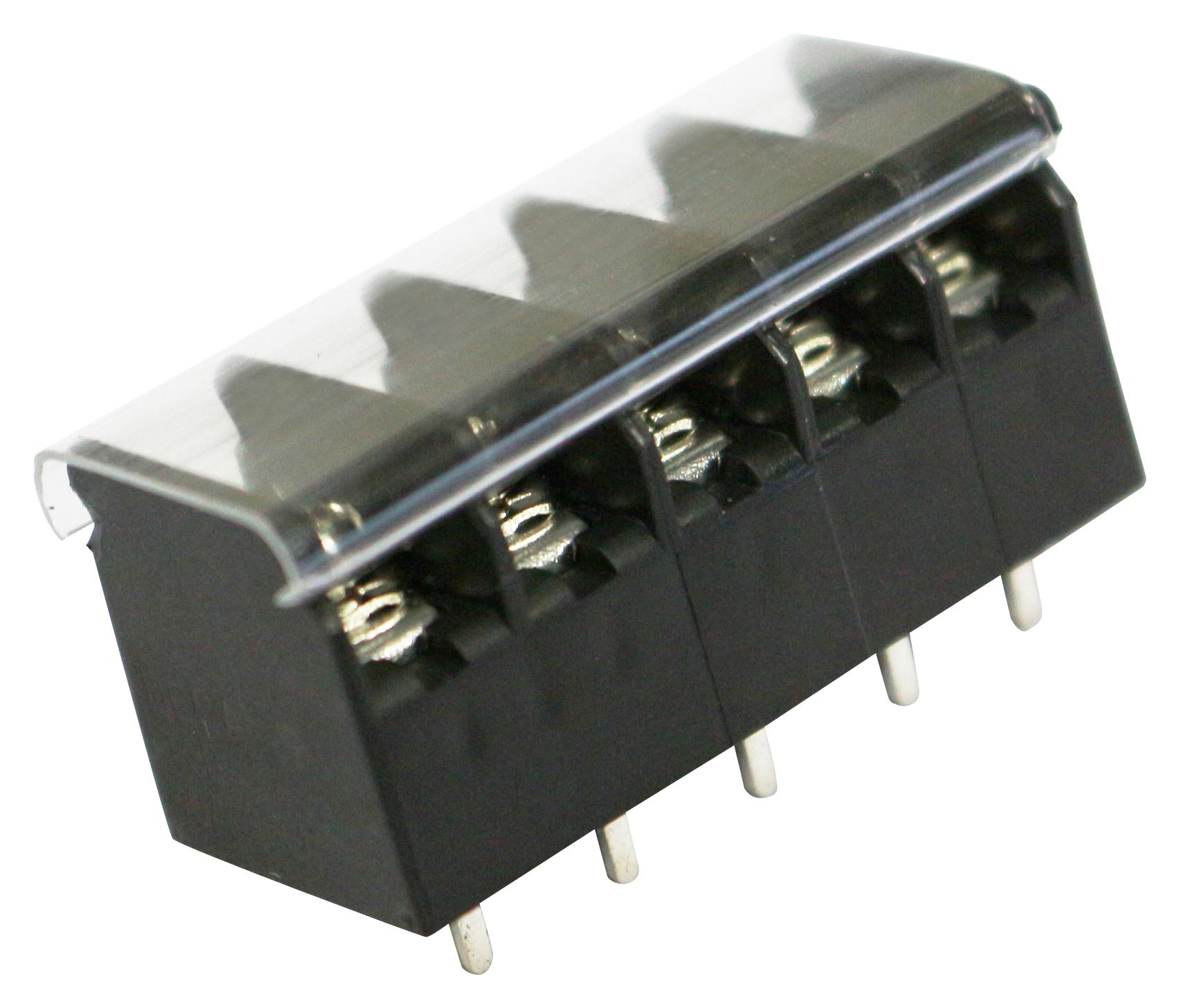

MULTICOMP-PRO MC002081 Modular Barrier Terminal Block
The barrier terminal block from Multicomp Pro features a modular design for easy connection in electrical systems, with 6.35mm pitch and 2 or 3 poles options. Rated for 10A at 300V AC, it withstands insulation voltage of at least 2000V AC and offers durable brass tin-plated terminals with steel nickel-plated screws. Made with insulating polyamide 66 in black, it operates from -40°C to +105°C. Its compact dimensions and screw torque of 10 lb-in ensure reliable connections for industrial wiring and control panels, complying with RoHS standards.
MULTICOMP-PRO MC002081 Modular Barrier Terminal Block Specifications:
- Current Rating: 10 Amp AC300V
- Insulation withstands Voltage: AC2000V min.
- Insulation Resistance: >2000MQ DC500V
- Operation Temperature: -40°C to +105°C
- Wire Range: 16AWG to 30AWG
- Screw Torque: 10 lb-inch
- Dimensions: Poles: 2 or 3, Pitch: 6.35mm, Body Material: Polyamide 66, Body Finish: UL94V-0, Terminal Material: Brass Tin Plated, Screw Material: Steel Ni Plated, Cover: PVC
- Poll Pitch: 6.35mm
- Poles: 2 or 3
- Overall Length: 13.7mm for 2-pole, 20.05mm for 3-pole
- Operating Temperature Range: -40°C to +105°C
Buy the Multicomp Pro MC002081 – Reliable Modular Barrier Terminal Block for Industrial Applications
Purchase the Multicomp Pro barrier terminal block online and ensure secure electrical connections in your industrial systems. This high-quality component features a 6.35mm pitch, 10A current rating, and durable construction with brass and steel components. Its UL94V-0 polyamide body guarantees safety, while the cover provides added protection. Suitable for wiring in control panels, automation systems, and machinery, this terminal block is RoHS compliant. Quickly order online for reliable performance and seamless integration into your electrical projects.
Buy Multicomp Pro MC002081 now and experience reliable modular wiring solutions for industrial automation and control panels.
