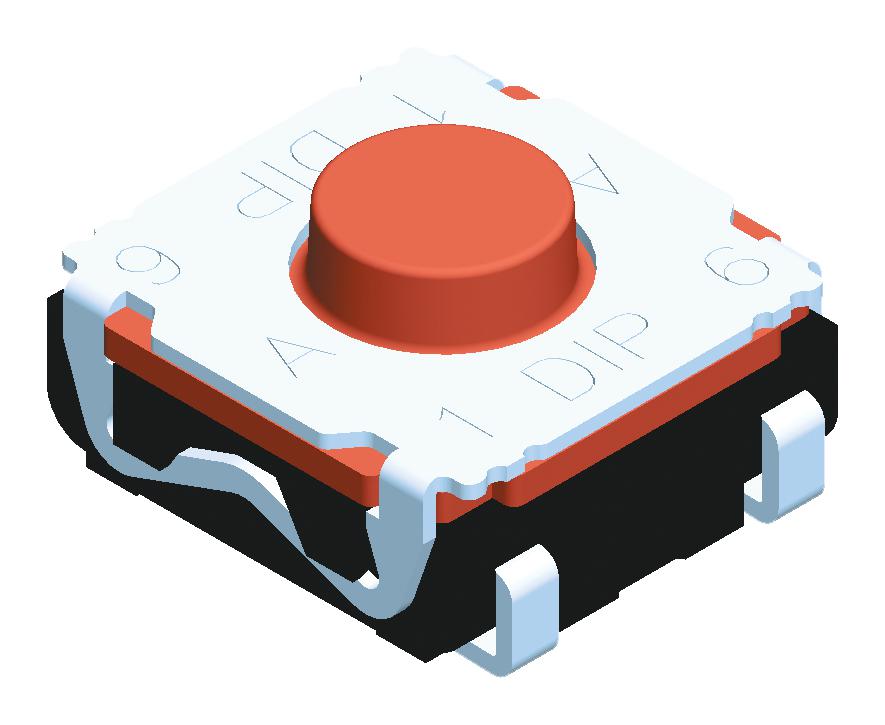

MULTICOMP-PRO MP000715 Surface Mount Tactile Switch
This surface mount tactile switch is designed for durable applications requiring water and dust resistance, with an IP67 rating. It features long travel and high operation cycles suitable for automotive, industrial electronics, cellular phones, network infrastructure, and elevator controls. The switch supports operating voltages up to 32V DC and current ratings up to 50mA. Available in different force options (160gf, 200gf, 350gf) with long-lasting operation life, it offers reliable performance under temperature ranges from -40°C to +85°C, making it ideal for demanding environments.
MULTICOMP-PRO MP000715 Surface Mount Tactile Switch Specifications:
- Contact Rating: 20mV DC to 32V DC / 1mA to 50mA
- Contact Resistance: > 100mΩ max.
- Insulation Resistance: > 10MΩ min. 100V DC
- Dielectric Strength: 250V AC/1 minute
- Operating Force: 160+50gf, Brown(N); 200-250gf, Rad(R); 350-2100gf, Salmon(S)
- Travel: 0.3mm (160gf); 0.35mm (200gf); 0.5mm (350gf)
- Operating Life: 3,000,000 cycles for 160gf; 500,000 cycles for 200gf; 300,000 cycles for 350gf
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +85°C
- IP Rating: IP67
- Mounting Style: Surface Mount (SMT)
- Material: Halogen Free, RoHS Compliant
Buy the Multicomp Series Tactile Switch: MP000715
Order the Multicomp series tactile switch MP000715 online today and enjoy reliable, dust-tight, and water-resistant operation ideal for demanding environments such as automotive, industrial electronics, and network infrastructure. Designed for long operational lifespan, this switch features high current ratings up to 50mA, voltage support up to 32V DC, and operates efficiently across a temperature range of -40°C to +85°C. Easy to install with SMT design, it ensures durability for millions of cycles, making it the perfect choice for your electronic projects and equipment upgrades.
Buy Multicomp tactile switch MP000715 now and experience unmatched reliability and performance in industrial and automotive applications.
