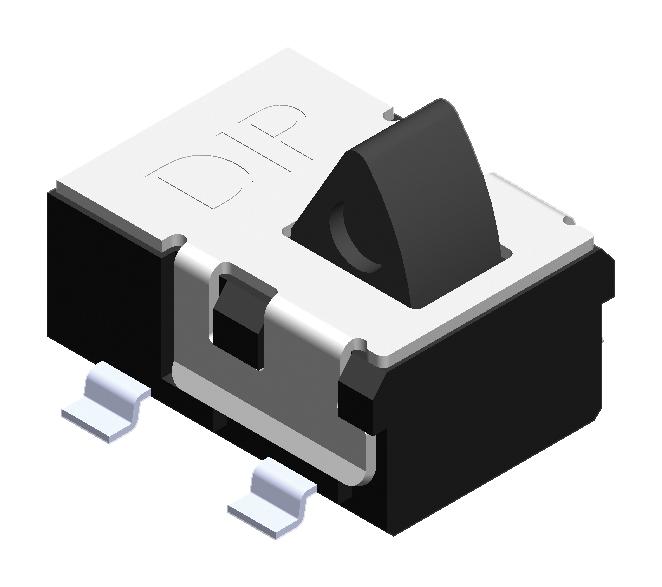

MULTICOMP PRO MP000732 Surface Mount Detector Switch

Surface Mount Detector Switches with guiding post for easy orientation, designed for open/close detection in consumer electronics and medical devices. Features include long 2.6mm travel, vertical push operation, duel RoHS compliance, halogen-free material, and a lifespan of 100,000 cycles. Suitable for applications requiring reliable open/close detection and power-off functions. The switches operate within a temperature range of -40°C to +85°C, have a contact rating of 10mA at 5V DC, and exhibit a contact resistance of max 10. Insulation resistance is at least 100MQ, with a dielectric strength of 100V AC for 1 minute. Physically, they feature a travel distance greater than 2.5mm, and are rated for operating force up to 36gf, ensuring durability and sensitivity for precise control.

View MP000732Datasheet [pdf]

Buy the Buy Surface Mount Detector Switch Online with Part Number MP000732

Enhance your electronic and medical device projects with this Surface Mount Detector Switch featuring guiding post for easy orientation. Designed for open and close detection, it offers a long travel of 2.6mm and vertical push operation for reliable performance. Rated at 10mA and 5V DC, it supports up to 100,000 cycles, ensuring durability. Operating across -40°C to +85°C, its halogen-free, RoHS compliant material makes it suitable for safety-critical applications. Easily integrated into compact device designs for sensitive open/close detection and power-off functions.

Get Surface Mount Detector Switch MP000732 today—built for reliable detection and long-lasting durability in electronic and medical applications.
