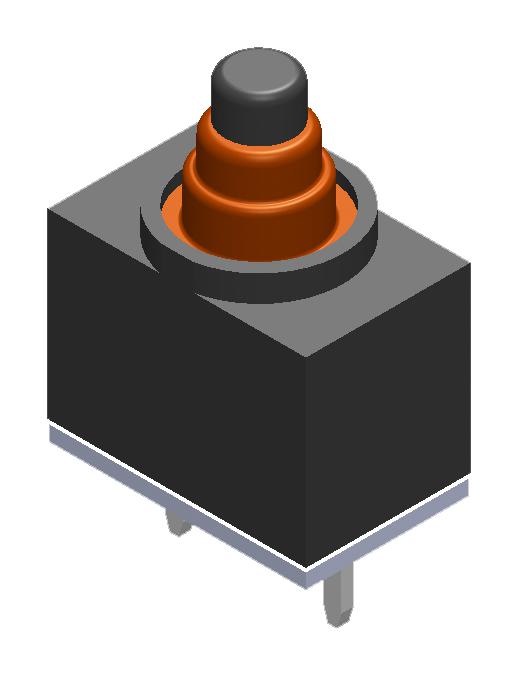

MULTICOMP PRO MP000735 Detector Switch
The detector switch is a waterproof, compact, vertical push type switch designed for white goods, automotive, and motorcycle applications. It features a contact rating of 50uA at 5V DC up to 0.1A at 12V DC, with a contact resistance of 500mΩ max. It offers insulation resistance of at least 100MQ, dielectric strength of 500V AC for 1 minute, and an operating force of 35gf max. The switch has a travel of 1.15mm, an operating life of 300,000 cycles, and operates within -40°C to +85°C, making it ideal for harsh environments.
MULTICOMP PRO MP000735 Detector Switch Specifications:
- Contact Rating: 50uA, 5V DC to 0.1A, 12V DC
- Contact Resistance: 500mΩ max
- Insulation Resistance: 100MQ min at 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Operating Force: 35gf max
- Travel: 1.15mm
- Operating Life: 300,000 cycles
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Dimensions: Compact size, water-proof design, vertical push type, PCB space-saving, halogen free
Buy the Multicomp Series Detector Switch: MP000735
Get the high-quality waterproof detector switch MP000735 online today. Ideal for white goods, automotive, and motorcycle applications, it offers long-lasting performance with 300,000 cycle lifespan. Its compact, vertical push design saves PCB space, while the halogen-free construction ensures safety and compliance. Operating in a wide temperature range from -40°C to +85°C, it withstands harsh conditions. Perfect for demanding environments requiring reliable switching with excellent insulation and dielectric strength. Purchase now for dependable performance in your projects.
Order your Multicomp Series detector switch MP000735 today and equip your projects with reliable, durable waterproof switches designed for tough environments.
