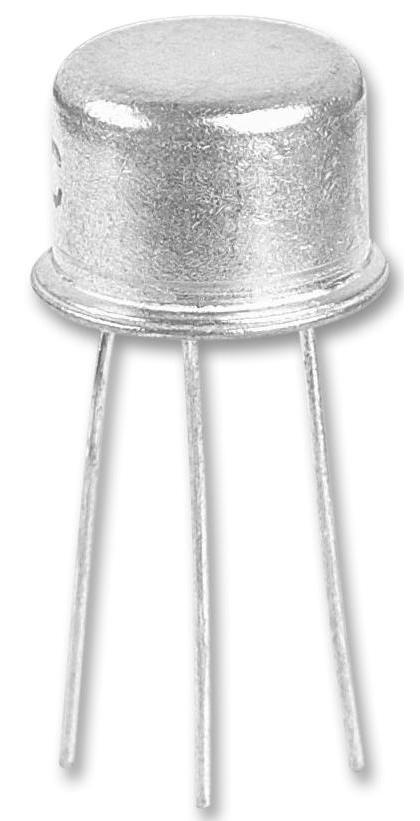

MULTICOMP PRO 2N5415 High-Voltage PNP Transistor
The 2N5415 is a high-voltage silicon PNP epitaxial planar transistor designed for consumer and industrial applications. It features a collector-base voltage of -200V and an emitter-base voltage of -4V. This transistor is particularly suitable as a driver in high-voltage, low-current inverters, switching circuits, and series regulators, making it ideal for various industrial and consumer electronic uses.
MULTICOMP PRO 2N5415 High-Voltage PNP Transistor Specifications:
- Collector-Base Voltage: -200V
- Collector-Emitter Voltage: -200V
- Emitter-Base Voltage: -4V
- Collector Current: 1A
- Total Dissipation at 25°C: 10W
- Storage Temperature: -65°C to 200°C
- Maximum Thermal Resistance Junction-case: 17.5°C/W
- Maximum Thermal Resistance Junction-ambient: 175°C/W
- Collector Cut-off Current: -50pA at -175V
- Emitter Cut-off Current: -20pA at -4V
- Collector-Emitter Saturation Voltage: -25V at -50mA
- Base-Emitter Voltage: 1.5V at -50mA
- DC Current Gain: 30 to 150
- Transition frequency: 15MHz
- Capacitance: 25pF at 1MHz
Buy the Multicomp Series High-Voltage PNP Transistor: 2N5415
Enhance your electronic projects with the high-voltage PNP transistor, perfect for switching, inverters, and regulation circuits. The 2N5415 offers reliable performance with a collector-base voltage of -200V, emitter-base voltage of -4V, and a current capacity of 1A. Its low junction capacitance and high gain make it suitable for demanding industrial and consumer applications. Available for easy online purchase, this transistor ensures durability and precision for your high-voltage applications. Trust the quality and versatility of the 2N5415 today!
Order your Multicomp Series 2N5415 high-voltage PNP transistor today and give your high-power switching and regulation projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2N5415?
You can click on the BUY or RFQ button to purchase 2N5415 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2N5415?
You can download the 2N5415 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2N5415?
MULTICOMP PRO
