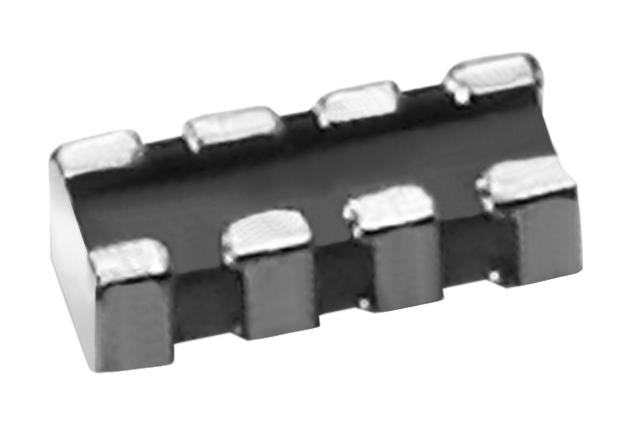

MULTICOMP-PRO MP000957 Array Chip Resistors
These thick film array chip resistors are reliable and high-quality electronic components designed for compact electronics, communication, and measuring instruments. They feature small size, light weight, and are suitable for IR reflow soldering, ensuring easy assembly and matching with placement machines. Constructed with alumina substrate and external electrodes, they offer excellent thermal stability and electrical performance. Available in various resistance values and configurations, these resistors meet RoHS compliance standards, making them ideal for industrial and consumer electronics requiring durable and precise resistor arrays.
MULTICOMP-PRO MP000957 Array Chip Resistors Specifications:
- Material: Alumina substrate with external electrodes
- Construction: Resistor layer with edge, top, and bottom electrodes, overcoats
- Dimensions: MP-21: 0.84mm x 0.62mm, MP-41: 1.4mm x 0.6mm, MP-42: 2.4mm x 1mm, MP-43: 3.24mm x 1.6mm
- Size variations: Flat and convex terminal types, resistance values ranging from 22Ω to 560KΩ, 1% or 5% tolerance
- Power Rating: 1/10W to 1/32W at 70°C, with standards for overload, insulation resistance, and thermal endurance
- Temperature Range: -55°C to +155°C, RoHS compliant, suitable for IR reflow soldering, wave, and flow soldering
- Environmental: Capable of withstanding multiple reflow cycles, damp heat, dry heat, and mechanical stress
- Packaging: Reel and tape configurations for automated placement, with specified reel diameter, width, and quantity
Buy the multicomp Series Array Chip Resistors: MP000957
Upgrade your electronic assembly with multicomp Series array chip resistors MP000957. These reliable, RoHS-compliant resistors are designed for high-quality performance, seamless integration with reflow soldering, and durability across various environmental conditions. Perfect for industrial, communication, and measurement applications, they offer precise resistance values, compact size, and easy handling. Purchase online today and secure dependable resistor arrays for your manufacturing or repair projects, ensuring optimal circuit performance and durability.
Order your multicomp Series chip resistor array MP000957 today and enhance your electronic projects with reliable, high-performance resistor components.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP000957?
You can click on the BUY or RFQ button to purchase MP000957 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP000957?
You can download the MP000957 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP000957?
MULTICOMP-PRO
