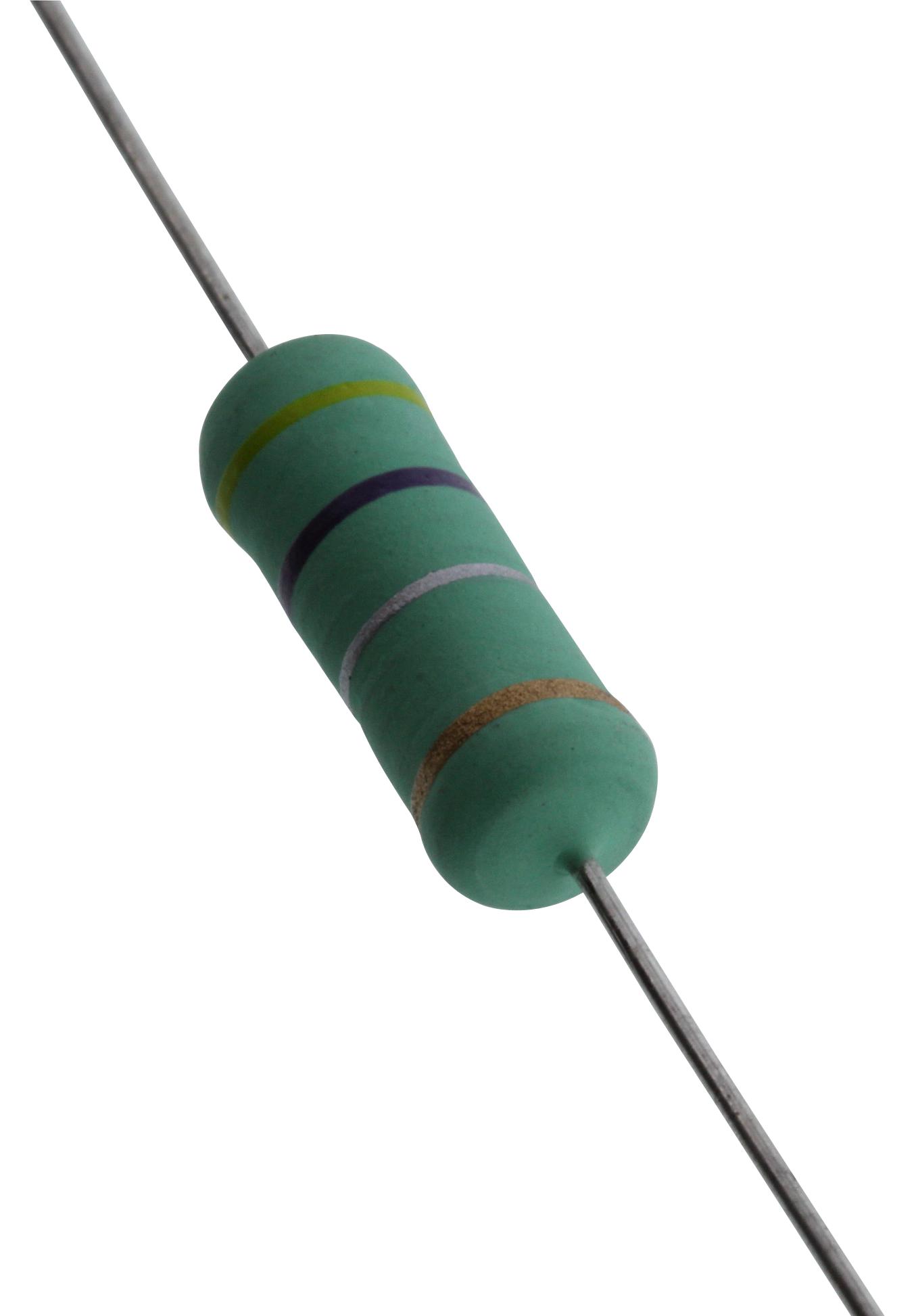

MULTICOMP PRO MCKNP05SJ047KAA9 Power Resistor
High-quality wire wound fixed resistor designed for precise current control and power dissipation. Features a green insulating coating and a non-flammable construction with excellent flame resistance. Suitable for various applications requiring stable resistance values and durability, with power ratings up to 5W and resistance options from 0.1 ohms to several kilo-ohms. Constructed with ceramic rod bodies, Cu-Ni/ Ni-Cr alloy resistors, tin-plated steel end caps, and annealed copper lead wires. Features include resistance to soldering heat, dielectric strength, and temperature cycling robustness, ensuring reliability in demanding environments.
MULTICOMP PRO MCKNP05SJ047KAA9 Power Resistor Specifications:
- Power Rating: 5W
- Resistance Range: 0.1Ω to 470kΩ
- Resistance Tolerance: ±5%
- Material: Ceramic rod body
- Resistor Material: Cu-Ni Alloy / Ni-Cr Alloy
- End Cap Material: Tin-plated steel
- Lead Wire: Annealed Copper Wire, Tin-coated
- Coating: Green, non-flame epoxy resin
- Operating Temperature: -55°C to +155°C
- Dimension (mm): D1 6.5, L#1 17.5, d#0.05 0.75, H43 0.10 to 4700pack
- Features: Flame resistant, non-inductive, resistor withstands soldering heat, resistant to temperature cycling, dielectric withstand voltage, overload and pulse overload capacity.
Buy the Multicomp Series Resistors: High Power Wire Wound Resistor 5W: MCKNP05SJ047KAA9
Purchase the Multicomp Series high power wire wound resistor MCKNP05SJ047KAA9 online today to ensure optimal performance, durability, and precise resistance control. This 5W rated resistor features a green non-flame coating and is ideal for industrial use where reliability under high thermal stress and frequent soldering are critical. With resistance values from 0.1Ω to higher ranges and tolerance of ±5%, it guarantees consistent operation in demanding applications. Enjoy fast delivery, secure shopping, and quality assurance when ordering this resistor for your power management needs.
Get Multicomp Series MCKNP05SJ047KAA9 today—built for high power, stability, and long-lasting durability in demanding electrical environments.
