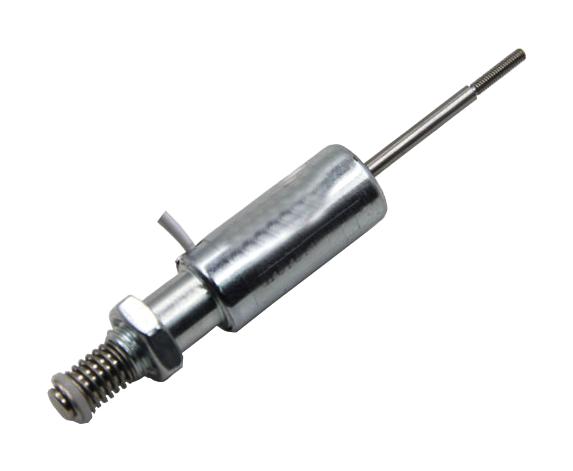

MULTICOMP-PRO MP001141 Tubular Solenoid Actuator
This tubular solenoid actuator operates on 12V DC with a power consumption of 40W, offering a stroke force of 2120gf at 4mm. It features a response time of 230ms and a work cycle with off time of 0.05 seconds and on time of 0.45 seconds, capable of continuous operation for up to 1 hour without load. Designed for applications requiring precise linear movement, it has an insulation resistance of 250MQ, dielectric strength of 700V AC, and a lifespan of 200,000 cycles, suitable for industrial automation tasks.
MULTICOMP-PRO MP001141 Tubular Solenoid Actuator Specifications:
- Operating Voltage: 12V DC
- Power Consumption: 40W
- Stroke: 4mm
- Force: 2120gf
- Response Time: 230ms
- Electrical Insulation Resistance: 250MQ at 500V DC
- Dielectric Strength: 700V AC
- Operating Temperature: -20°C to +45°C
- Store Temperature: -20°C to +65°C
- Humidity Range: Operating 5% to 95%, Storage 5% to 60%
- Work Cycle: off 0.05s / on 0.45s
- Lifespan: 200,000 cycles
- Maximum continuous energize: 1 hour
- Dimensional Length: 83mm, Diameter: 8.4mm
- Lead Length: 40mm
Buy the Buy Multicomp Pro Tubular Solenoid Actuator Part Number MP001141 Online
Experience reliable performance with the Multicomp Pro tubular solenoid actuator MP001141. Designed for precision control with a 12V DC operating voltage, 40W power, and a 4mm stroke, it offers high durability for demanding industrial applications. Its quick response time of 230ms and lifespan of 200,000 cycles ensure long-lasting efficiency. Perfect for automation, positioning, and mechanical movement tasks, this solenoid features excellent insulation resistance, dielectric strength, and operates efficiently within a wide temperature range. Order online now for fast delivery and seamless integration.
Get Multicomp Pro tubular solenoid actuator MP001141 today—built for precision, durability, and reliable linear movement in automation systems.
