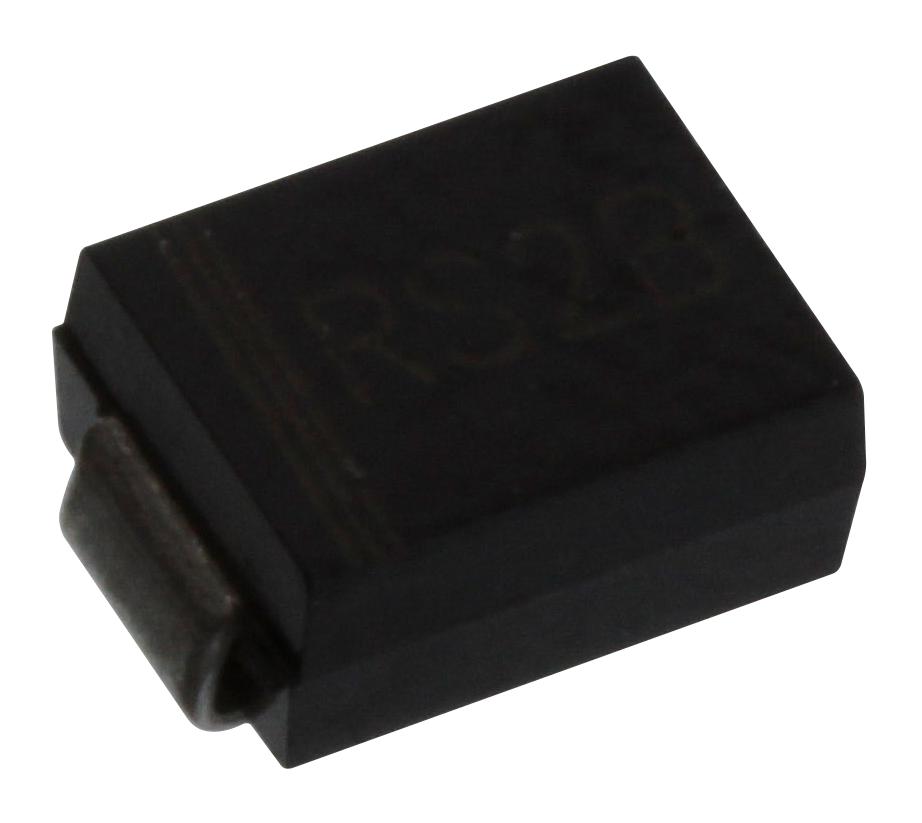

MULTICOMP PRO RS2B Fast Recovery Rectifier
The multicomp glass passivated rectifier is a high-efficiency fast recovery surface-mount diode designed for various power applications. It features a diffused junction, low reverse leakage current, and a low forward voltage drop, making it ideal for fast switching needs. Certified with UL 94V-0 plastic material, it offers high current capability and robust mechanical performance. Suitable for resistive, inductive, or capacitive loads, this rectifier operates within a temperature range of -55°C to +150°C, ensuring reliable performance in demanding environments. Compact, lightweight, and easy to mount, it is perfect for power supply, motor control, and other industrial applications.
MULTICOMP PRO RS2B Fast Recovery Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 50V to 800V
- Maximum RMS Voltage: 35V to 560V
- Maximum DC Blocking Voltage: 50V to 800V
- Peak Forward Surge Current: 60A (8.3ms single half sine-wave)
- Maximum Forward Voltage at 2A: 1.3V
- Maximum Reverse Current at 25°C: 5μA
- Reverse Recovery Time: 150 to 500 ns
- Typical Junction Capacitance: 20 to 30 pF
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Case: Molded plastic, SMB dimensions: 0.185 inches (4.70 mm) length
- Polarity: Denoted by color band (cathode)
- Weight: 0.003 ounces (0.093 grams)
- Mounting Position: Any
- Dielectric Material: Glass passivated junction
- Certifications: UL Recognized 94V-0
- Reverse Voltage Rating: 50V to 800V
- Forward Current: 2A
Buy the Multicomp RS2B+ – Reliable Fast Recovery Rectifier for Industrial Applications
Purchase multicomp RS2B+ online today for high-efficiency, reliable power rectification. With fast recovery, low leakage, and high current capacity, this surface-mount rectifier is perfect for industrial and power supply applications. Easy to install, compact, and certified with UL 94V-0 plastic material, it ensures durability and consistent performance across a wide temperature range. Improve your power systems with this dependable diode designed for resistive, inductive, and capacitive loads, delivering optimum efficiency and longevity in demanding operational environments.
Get multicomp RS2B+ today—built for reliable high-speed switching and durability in industrial power systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO RS2B?
You can click on the BUY or RFQ button to purchase RS2B from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part RS2B?
You can download the RS2B datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of RS2B?
MULTICOMP PRO
