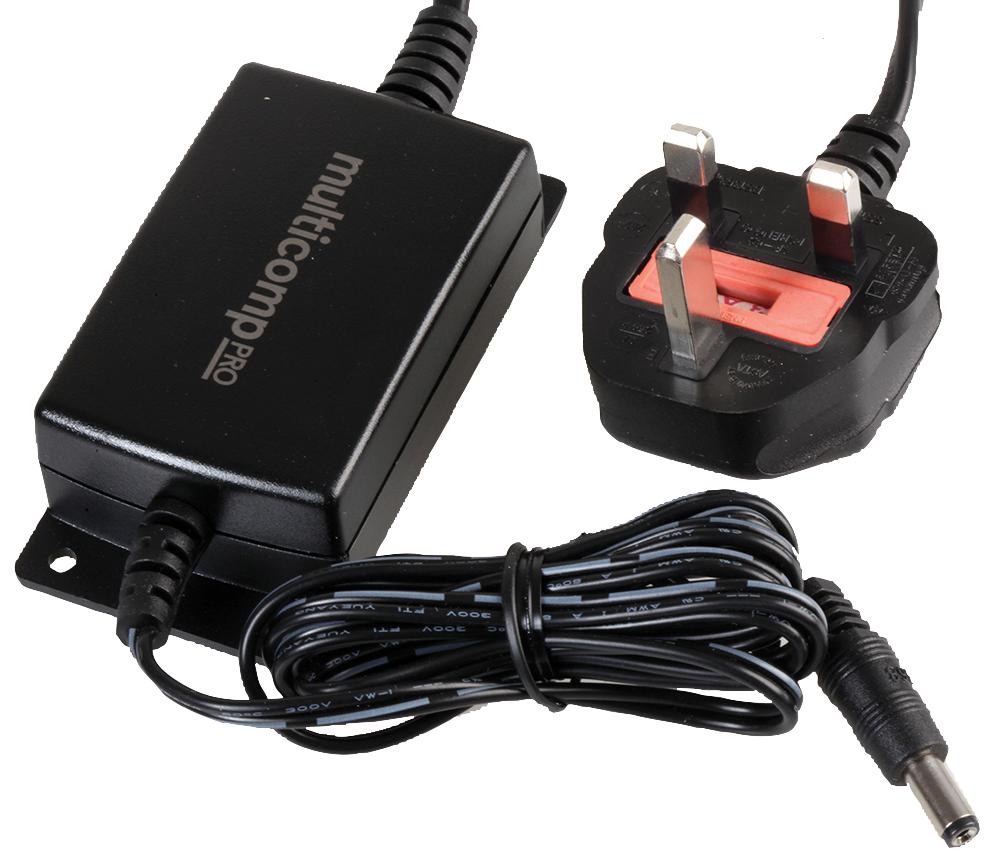

MULTICOMP PRO MP001983 Power Supply
This compact 10-watt AC-DC power supply delivers a stable 5V DC output at up to 2A current, ideal for indoor applications such as CCTV, access control, and building management systems. Featuring universal full-range input from 90V AC to 264V AC, it boasts high efficiency, low ripple, and multiple protections including over-voltage, short circuit, and temperature. Its small, low-profile design includes a fixed AC mains lead, DC output cable, and four mounting tabs, making it suitable for space-constrained environments with reliable performance and safety certifications.
MULTICOMP PRO MP001983 Power Supply Specifications:
- Voltage: 5V DC
- Current Max: 2A
- Power: 10W
- Line Regulation: 45%
- Ripple & Noise: 100mV
- Protections: Over Voltage, Short Circuit, Temperature
- Case Size: 93.7mm x 47mm x 26mm
- Weight: 240g
- DC Cord Length: 1.5m
- DC Plug: Straight 2.1 mm C+ve
- Rated Input Voltage: 100V DC to 240V DC
- Full Input Voltage Range: 90V AC to 264V AC
- Full Frequency Range: 47Hz to 63Hz
- Efficiency: 73.36%
- Input Current RMS Max: 300mA
- Inrush Current: 115V AC = 30A Max, 230V AC = 60A Max
- Leakage Current: <0.25mA
- Input Power (No Load): <0.3W Max
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -10°C to 70°C
- Operating Humidity: 20% to 80%
- Storage Humidity: 10% to 90%
- Safety Approvals: GS & CE
- EMI Standards: FCC Class B, CE & VCCI
- MTBF: 50,000 hours
Buy the multicomp MP001983 – Reliable 5V Power Supply for Industrial Applications
Order the multicomp power supply MP001983 online today to ensure a reliable 10W power source with 5V DC, 2A current capacity, and full-range universal input, suitable for CCTV, access control, and building automation. Its small, compact design includes a fixed AC mains lead and four mounting tabs, making installation easy in space-limited environments. Enjoy high efficiency, multiple protections, and safety certifications like GS and CE for secure operation. Purchase now for dependable power in your industrial or security setups.
Get multicomp MP001983 today—built for reliable 5V DC output and indoor installation versatility in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP001983?
You can click on the BUY or RFQ button to purchase MP001983 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP001983?
You can download the MP001983 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP001983?
MULTICOMP PRO
