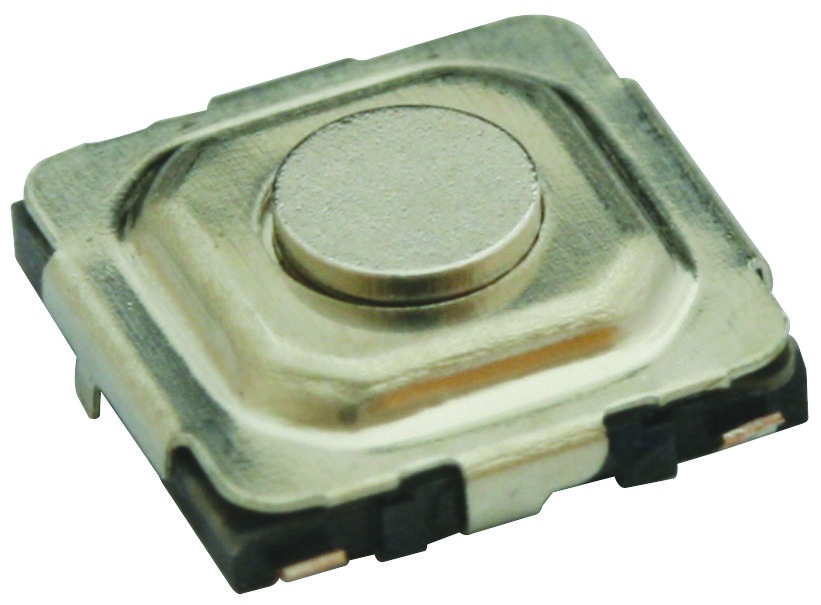

MULTICOMP PRO MC32840 Tactile Switch
This tactile switch features a round button and a through-hole mounting design, rated at 50mA and 12V DC. Constructed with high-quality nickel silver cover, stainless steel contact disc with silver cladding, and brass terminal with silver plating, it offers excellent electrical performance and durability. The switch operates with a force of 260gf, with a stroke of 0.25mm, and withstands up to 200,000 cycles. Suitable for industrial control and electronic devices, it performs reliably within -25°C to +70°C and is RoHS compliant.
MULTICOMP PRO MC32840 Tactile Switch Specifications:
- Operation Force: 260 + 50gf
- Stop Strength: Max. 3kgf vertical static load for 15 seconds
- Stroke: 0.25+0.1mm/-0.2mm
- Operation Temperature: -25°C to +70°C
- Storage Temperature: -30°C to +80°C
- Electrical Rating: 50mA, 12V DC
- Contact Resistance: 100mΩ max
- Insulation Resistance: 100MΩ min at 500V DC
- Dielectric Strength: 250V AC / 1 minute
- Electrical Life: 200,000 cycles min.
- Contact Arrangement: 1 pole 1 throw
- Materials: Cover Nickel Silver, Contact Disc Stainless Steel with silver cladding, Terminal Brass with silver plating, Base LCP thermoplastic black, Stem Brass with nickel plating, Tape PTFE
- Dimensions: Millimeters (Inches)
Buy the Multicomp Series Tactile Switch: MC32840
Order the high-quality tactile switch MC32840 online today for reliable performance in control panels, electronic devices, and industrial equipment. Known for durability, high cycle life exceeding 200,000 cycles, and rated at 50mA at 12V DC, this switch features a round button with a 0.25mm stroke and a force of 260gf. Constructed with nickel silver, stainless steel, and brass components, it is RoHS compliant and ideal for harsh environments. Convenient online purchase ensures fast delivery and excellent after-sales support.
Get Multicomp MC32840 today—built for precision and long-lasting durability in electronic and industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC32840?
You can click on the BUY or RFQ button to purchase MC32840 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC32840?
You can download the MC32840 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC32840?
MULTICOMP PRO
