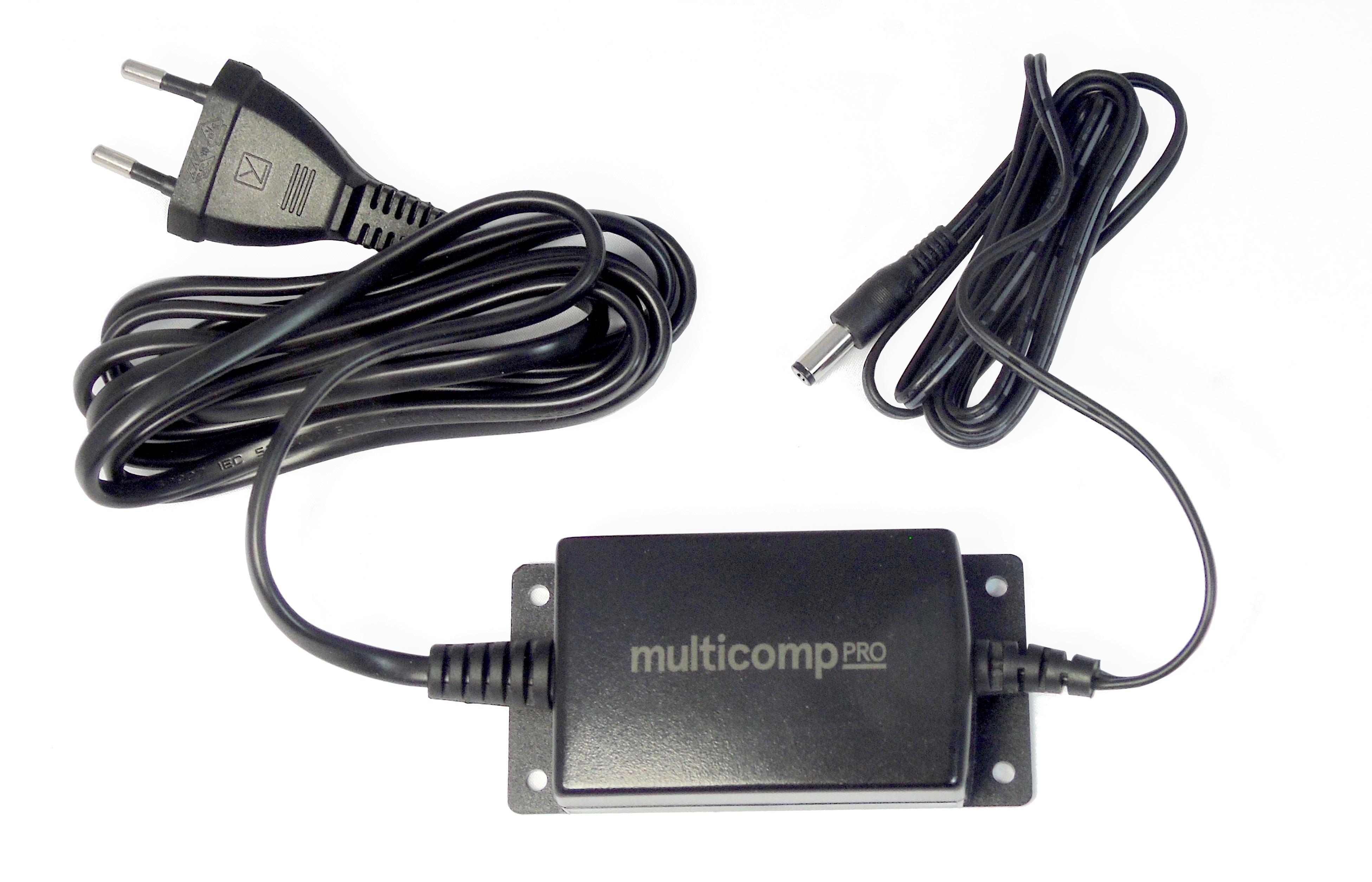

MULTICOMP PRO MP001986 12V Power Supply
This 12 watt AC/DC power supply delivers reliable 12V DC output at 1A, ideal for indoor applications such as CCTV, access control, and building management systems. With a compact, low-profile design and durable enclosure, it features a fixed EU mains lead, overvoltage, overload, and short circuit protections. It operates on 100V to 240V AC input, with high efficiency (over 83%), low ripple (150mV), and broad frequency range (47Hz-63Hz). Certified with GS, CE, FCC Class B, and VCCI, ensuring safety and EMI compliance, it offers stable power for industrial and security installations.
MULTICOMP PRO MP001986 12V Power Supply Specifications:
- Voltage: 12V DC
- Current Max: 1A
- Power: 12W
- Line Regulation: 45%
- Ripple & Noise: 150mV
- Protections: Over Voltage, Over Load, Short Circuit
- Case Size: 93.7mm x 47mm x 26mm
- Weight: 250g
- DC Cord: 1.5m
- DC Plug: Straight 2.1 C+ve
- Rated Input Voltage: 100V AC to 240V AC
- Full Input Voltage Range: 90V AC to 264V AC
- Full Frequency Range: 47Hz to 63Hz
- Efficiency: 83.26% Min.
- Input Current RMS Max: 500mA
- Inrush Current: No Damage
- Leakage Current: <0.25mA
- Input Power (No Load): <0.1W
- AC Mains Lead: 1.8m EU plug
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -10°C to +70°C
- Operating Humidity: 20% to 80%
- Storage Humidity: 10% to 90%
- Safety Approvals: GS & CE
- EMI Standards: FCC Class B, CE & VCCI-II
- MTBF: 50K hours
Buy the Multicomp Power Supply MP001986 – Reliable 12V DC Power for Industrial Applications
Purchase the Multicomp Power Supply MP001986 online today to ensure a dependable and efficient power source for your security, automation, and building management systems. Designed with a compact form factor, it features a robust enclosure, EU plug, and comprehensive protections including overload, short circuit, and overvoltage. With high efficiency and broad input voltage compatibility, this 12W, 12V DC power supply guarantees stable operation even in demanding indoor environments. Order now for quick delivery and seamless integration into your project.
Get Multicomp Power Supply MP001986 today—built for precision and long-lasting durability in security and automation projects.
