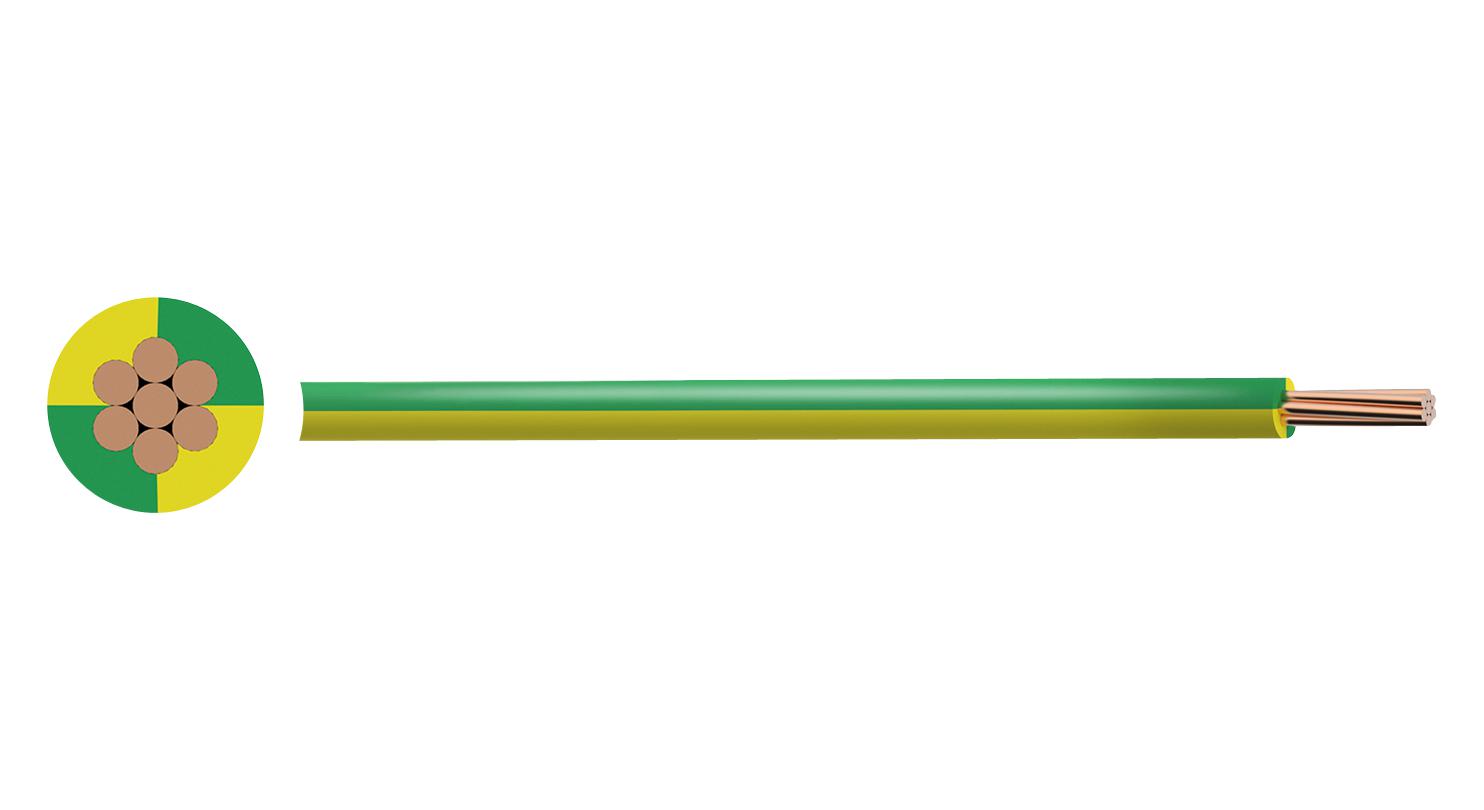

MULTICOMP PRO PP6491B150MMGY LSZH Conduit Wire
The LSZH insulated conduit wire is designed for conduit and fixed, protected installations, suitable where fire, smoke, and toxic fumes pose risks. Made with Class 2 stranded annealed copper conductors and LSZH Type EI5 insulation, it offers a voltage rating of 450/750V and a temperature range from 0°C to +90°C. Available in multiple colors including Blue, Brown, Grey, and Green/Yellow, it features a minimum bending radius of 4 times the overall diameter, ensuring flexibility and reliability in industrial wiring applications.
MULTICOMP PRO PP6491B150MMGY LSZH Conduit Wire Specifications:
- Voltage Rating: 450/750V
- Temperature Rating: 0°C to +90°C
- Conductor Material: Class 2 stranded annealed copper
- Insulation: LSZH Type EI5 according to BS EN 50363
- Bending Radius: 4 x overall diameter
- Colors Available: Black, Blue, Brown, Green/Yellow, Grey
- Cross-sectional Areas: 1.5mm², 2.5mm²
- Cross-Sectional Area Resistance: 12.1 Ω/km (1.5mm²), 7.41 Ω/km (2.5mm²)
- Physical Dimensions: Approximate overall diameters 3.4 mm for 1.5mm², 4.1 mm for 2.5mm²
- Weight: 22 kg/km (1.5mm²), 35 kg/km (2.5mm²)
- Construction: 7 x 0.53mm or 7 x 0.67mm strands
- Design Standards: BS EN 50525-3-41, BS EN 60228
- RoHS Compliant
Buy the Multicomp HO7Z-R – Reliable LSZH Conduit Wire for Industrial Applications
Purchase the multicomp HO7Z-R LSZH conduit wire online now for your industrial and protected wiring needs. Featuring high-quality annealed copper conductors and low smoke zero halogen insulation, it ensures safety and compliance with international standards. Available in multiple colors and sizes, this wire provides excellent flexibility, durability, and flame retardance. Perfect for conduit installations where fire safety is paramount, it offers reliable performance at rated voltages of 450/750V and temperature tolerance up to 90°C. Shop now for quick delivery and professional installation.
Order your multicomp HO7Z-R conduit wire today and ensure safe, flame-retardant electrical connections for industrial wiring projects.
