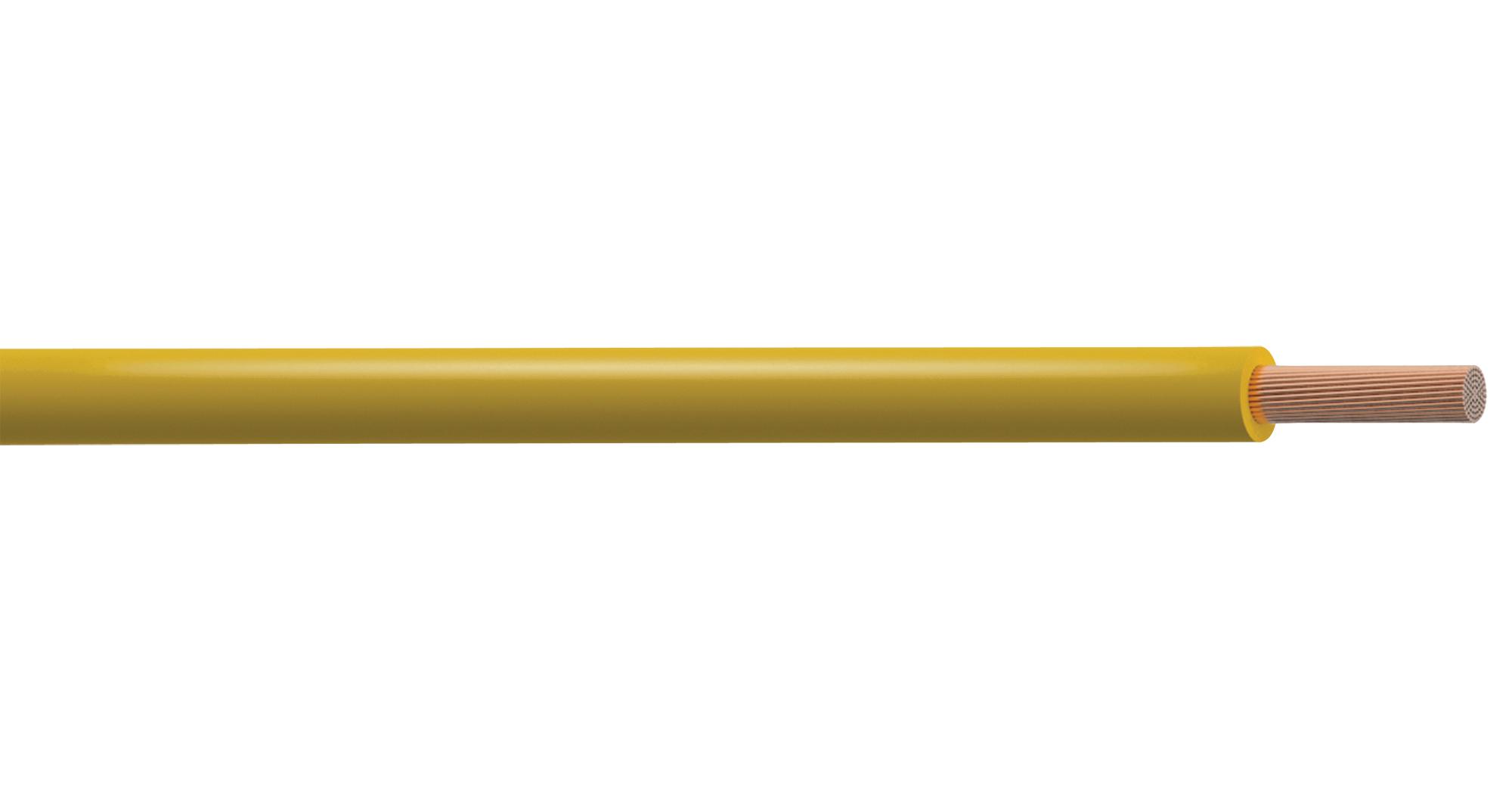

MULTICOMP-PRO PP001297 Flexible PVC Equipment Wire
Tri-rated flexible PVC equipment wire designed for high temperature, flame retardant applications in switch control, relays, instrumentation panels, and internal connectors. It complies with standards like BS EN 50525-2-31, BS 6231, UL, and CSA, providing reliable performance rated at 450/750V and temperatures up to +105°C. Suitable for use in power switchgear, motor starters, and controllers with various color options, flexible copper conductors, and insulation that ensures durability and safety in demanding environments.
MULTICOMP-PRO PP001297 Flexible PVC Equipment Wire Specifications:
- Conductor: Class 5 flexible copper conductor
- Insulation: PVC Type TI3 according to BS EN 50363
- Voltage Rating: UL, CSA 450/750V; BS 6231 600/1000V; BS EN 50525-2-31 300/500V, 450/750V
- Temperature Rating: UL, CSA +105°C; BS 6231 +90°C
- Sheath Color: Black, Blue, Brown, Dark Blue, Green, Grey, Green/Yellow, Light Blue, Orange, Pink, Red, Violet, White, Yellow
- Min Bending Radius: 6 x overall diameter
- Made according to standards BS EN 50525-2-31, BS 6231, UL, CSA
- Flexible copper conductors for single core wires with various cross-sectional areas from 0.5 mm² to 25 mm²
- Reel lengths: 50m, 100m, 150m, 250m depending on the specific part number
- Operating temperature: Up to +105°C
- Physical dimensions include insulation thickness and overall diameter specified per part number
Buy the Farnell PP001297 – Reliable Flame-Retardant PVC Wire for Industrial Applications
Order Farnell PP001297 flexible PVC equipment wire today online and enjoy fast delivery. This high-temperature, flame-retardant wire ensures safety and reliable connections within power switchgear and control panels. Crafted for high-demand industrial environments, it conforms to key standards and offers multiple color options for easy identification. The wire’s robust insulation and flexible copper conductors guarantee durability, safety, and efficiency in relays, motor starters, and instrumentation applications. Shop now to secure trusted quality for your electrical projects.
Buy Farnell PP001297 high-temperature flame-retardant PVC equipment wire now and ensure safe, durable, and compliant electrical performance in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001297?
You can click on the BUY or RFQ button to purchase PP001297 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001297?
You can download the PP001297 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001297?
MULTICOMP-PRO
