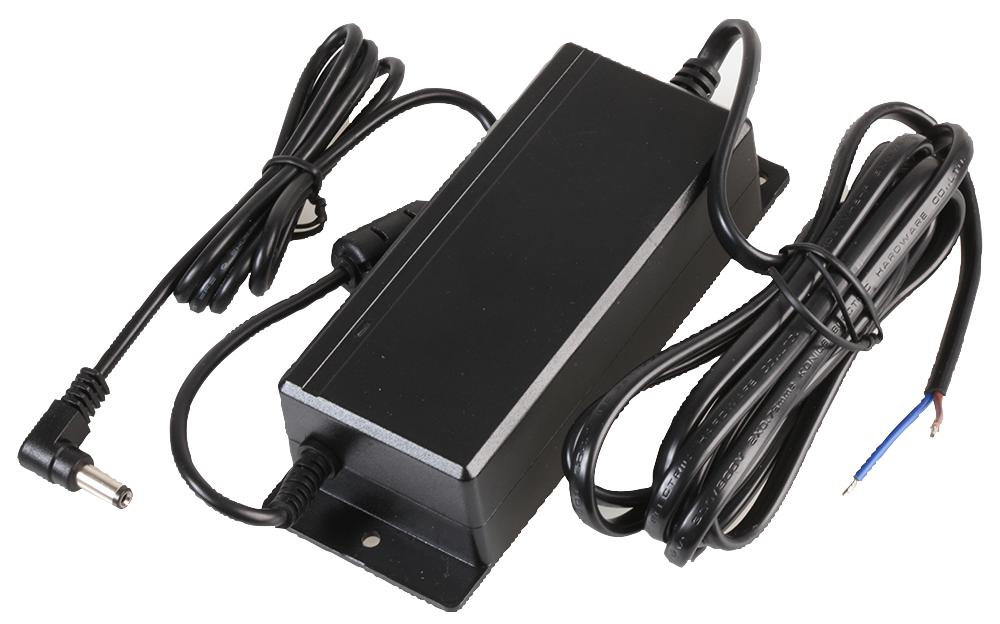

MULTICOMP-PRO MP001989 Power Supply
The 60W AC-DC installation power supply delivers a reliable 12V DC output at 5A, suitable for indoor applications such as CCTV, access control, and building management systems. Its compact, low-profile design features a fixed AC mains lead with bare ends and a DC output cable, offering universal input voltage from 90V to 264V AC, and an efficiency of at least 88%. Built with protections against over-voltage, short circuit, and temperature, it complies with RoHS, CE, and EMI standards, and operates within a temperature range of 0°C to +40°C for consistent indoor performance.
MULTICOMP-PRO MP001989 Power Supply Specifications:
- Voltage: 12V DC
- Current Max: 5A
- Power: 60W
- Line Regulation: 11%
- Ripple & Noise: 150mV
- Protections: Over Voltage, Short Circuit, Temperature
- Case Size: 144mm (L) x 51mm (W) x 32mm (H)
- Weight: 370g
- DC Cord Length: 1.5m
- DC Plug: 2.1 x 5.5 x 12 C+ve - Right Angle
- Rated Input Voltage: 100V AC to 240V AC
- Full Input Voltage Range: 90V AC to 264V AC
- Full Frequency Range: 47Hz to 63Hz
- Efficiency: 88% Min
- Input Current RMS Max: 1.5A
- Inrush Current: 40A Max @ 264V AC
- Leakage Current: <0.25mA
- AC Mains Lead: 2m Bare Ends
- Safety Approvals: CE
- EMI Standards: EN55032, EN61000-3-2
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +80°C
- Operating Humidity: 10% to 90%
- Storage Humidity: 5% to 95%
- MTBF: 50,000 hours
Buy the Buy multicomp Installation Power Supply Part Number MP001989 Online
Get the multicomp 60W 12V DC power supply online today and enjoy a stable, efficient power source designed for indoor security systems, access control, and building management. Compact and easy to install, this power supply features universal voltage compatibility, protections against over-voltage and short circuits, and high efficiency for energy savings. Its reliable operation over a wide temperature range makes it ideal for various indoor environments, ensuring continuous performance and safety for your critical infrastructure needs.
Order your multicomp series MP001989 60W 12V DC power supply today and ensure reliable, efficient indoor power for security and management systems.
