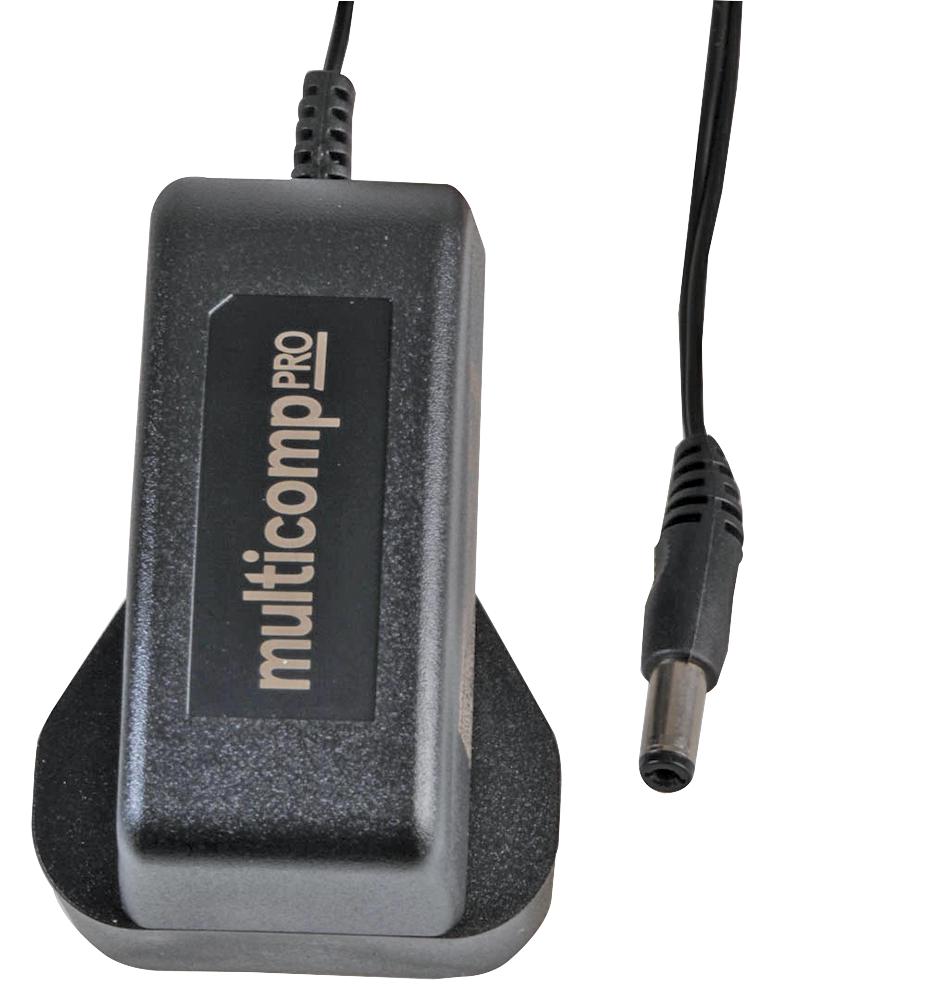

MULTICOMP PRO MP001998 Power Adapter
This 12W UK wall plug adapter provides a reliable power solution with 12 volts DC output at 1 amp, ideal for general power applications. It features a fixed UK plug, high efficiency of at least 82.96%, and meets CE and RoHS standards. With over-voltage, over-current, and short-circuit protections, it ensures safe operation in various environments. Its compact size (70mm x 49.5mm x 73.2mm) and operating temperature of 0°C to +40°C make it suitable for diverse indoor settings. Designed for durability, it boasts a long MTBF of 50,000 hours.
MULTICOMP PRO MP001998 Power Adapter Specifications:
- Input Voltage Range: 90V AC to 264V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current Rated: 0.5A Max
- Output Voltage Rating: +12V
- Output Current Range: 1A
- Output Connection: 2.1mm x 5.5mm x 12mm Centre Positive — Straight Angle
- Total Output Regulation: 45%
- Line and Load Regulation: 45%
- Ripple & Noise: 200mVp-p
- Efficiency: 82.96% Min
- Over Voltage Protection: 25V DC Max
- Over Load Protection: 2.5A max with Auto-Recovery
- Short-Circuit Protection: Indefinite Tolerance During Short Circuit
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -20°C to +60°C
- Operating Humidity: 20% to 85%
- Storage Humidity: 5% to 95%
- Safety Standard: Meets T-License BS EN60950-1
- EMI Standard: Meets CE EN55032
- MTBF: 50,000 Hours
- Size: Max 70mm (L) x 49.5mm (W) x 73.2mm (H)
- Weight: 104g approximately
Buy the Multicomp Series Power Adapter: 12W UK Wall Plug Adapter MP001998
Order the Multicomp 12W UK plug-in power supply online today and enjoy fast delivery, secure checkout, and trusted quality. This versatile adapter supplies a steady 12V DC at 1A, perfect for a variety of general and industrial applications. It features comprehensive protections including over-voltage, over-current, and short-circuit safeguards to ensure safety and durability. Compact and lightweight, it is suitable for indoor use in many settings, meeting CE and RoHS standards. Enhance your setup by purchasing this high-quality, efficient power supply online now.
Buy Multicomp 12W UK Wall Plug Adapter MP001998 now and experience reliable, safe, and efficient power supply for your devices.
