A Premier B2B Part Search

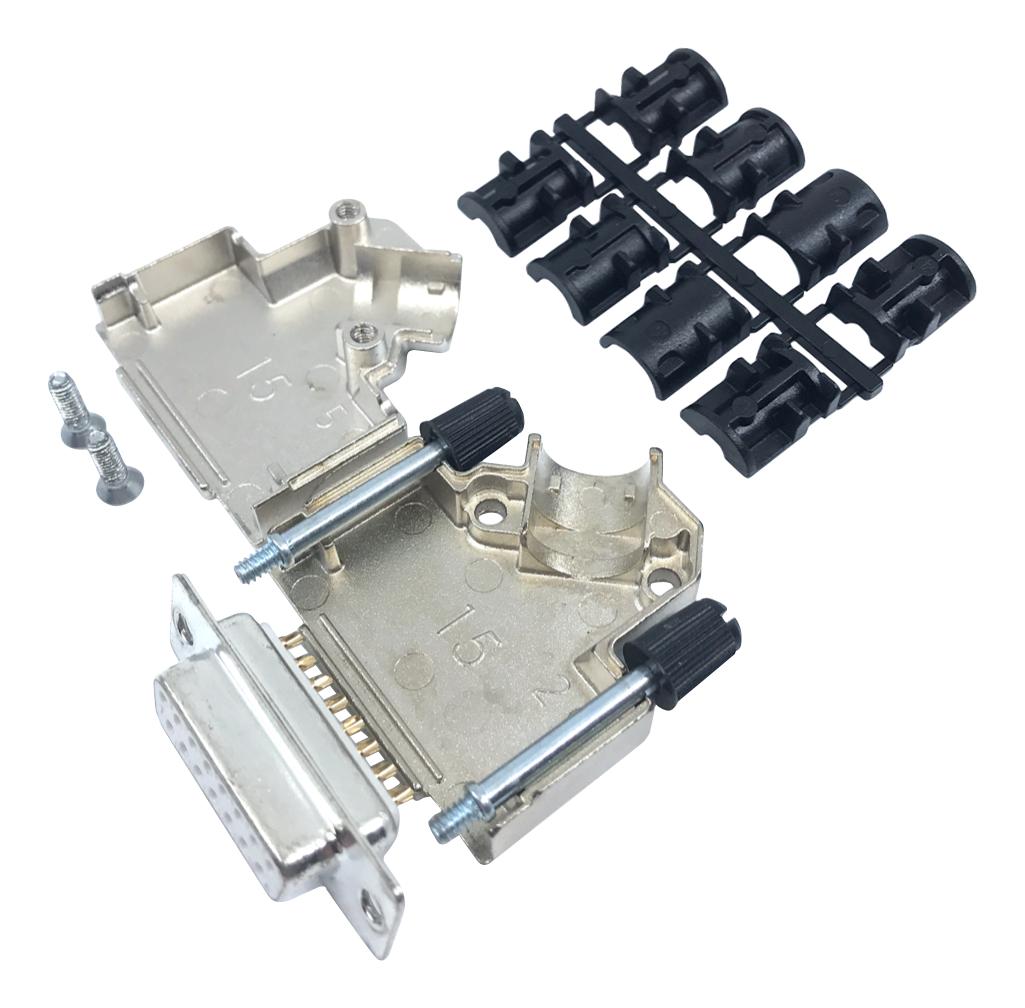

MULTICOMP-PRO MP002032 D-Sub Connector
This product is a high-quality angled D-Sub connector with backshell, designed to minimize electromagnetic and RF interference. Crafted with zinc, nickel-plated material, it supports round foil and braided cables, providing reliable strain relief with an angled outlet for easy access. Suitable for various applications, it withstands temperatures from -55°C to +105°C, with an insulation resistance exceeding 1000MO. It features long UNC 4-40 jackscrews, gold-plated copper contacts, and complies with industry standards including UL94 V-0, VDE, and FCC certifications. Ideal for durable, interference-free signal connections.
MULTICOMP-PRO MP002032 D-Sub Connector Specifications:
- Material: Zinc, Ni-plated
- Temperature Range: -55°C to +105°C
- Cable Strain Relief: Polycarbonate UL94 V-0
- Cable Diameter: 13 to 23 mm
- Locking Screws: Long jackscrews UNC 4-40
- Assembly Screws: Taptite thread forming
- Cable Outlet: Angled
- Attenuation Factor: > 40dB between 30 MHz and 1GHz
- Insulator: PBT, UL94 V-0
- Shell: Steel, Tin-plated
- Contact Pins: Copper alloy
- Contact Plating: Selective Gold over Nickel
- Insulator Resistance: > 1000MO
- Withstand Voltage: 1kV for 1 min
- Compatible with: DE-9, DA-15, DB-25, DC-37 connectors
- Approvals: VDE 0871, FCC 20780, 89/336/EU
Buy the Buy MultiComp Pro D-Sub Connector with Backshell Part Number MP002032 Online
Get your MultiComp Pro D-Sub Connector with Backshell MP002032 today online. Designed for robust, interference-free connections, this angled connector features zinc housing, gold-plated contacts, and reliable strain relief. Suitable for a variety of cables with diameters from 13 to 23 mm, it supports high-temperature operation from -55°C to +105°C, offering excellent electrical performance with insulation resistance over 1000MO, and meets industry standards like UL94 V-0 and FCC certifications. Perfect for professional electronic and industrial applications that require durable and EMI-shielded connectors.
Order your MultiComp Pro Series MP002032 angled D-Sub connector with backshell today and enhance your signal connections with reliable electromagnetic shielding.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002032?
You can click on the BUY or RFQ button to purchase MP002032 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002032?
You can download the MP002032 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002032?
MULTICOMP-PRO
