MULTICOMP PRO MP002035 D-Sub Connector
This angled D-Sub connector with backshell is engineered for secure and interference-free connections in electronic and communication systems. Made from zinc and steel, it features a temperature range of -55°C to +105°C, with a polycarbonate cable strain relief that accommodates cables from 13 to 23 mm. The connector supports high attenuation levels (>40dB between 30 MHz and 1GHz) and features gold over nickel contact plating for reliable electrical performance. Easy to assemble with long jackscrews and no special tools required, it is ideal for professional electronic applications requiring durability and high-quality shielding.
MULTICOMP PRO MP002035 D-Sub Connector Specifications:
- Material: Zinc, Ni-plated backshell; Steel shell, Tin-plated; PBT insulator, UL94 V-0; Copper alloy contact pins with gold over nickel plating
- Temperature Range: -55°C to +105°C for connector; -40°C to 120°C for backshell
- Cable Strain Relief: Polycarbonate, UL94 VO, suitable for 13-23 mm diameter cables
- Cable Outlet: Angled, compatible with round foil and braided cables, cable diameter 17 mm max
- Locking Screws: Long jackscrews with UNC 4-40 threads, no special tools needed
- Attenuation Factor: > 40dB from 30 MHz to 1GHz, ensuring EMI/RFI interference reduction
- Electrical Ratings: Withstand Voltage 1kV for 1 min, Insulator Resistance > 1000MΩ
- Dimensions: Part MP002035 measures approximately 69.7 x 40.2 mm, other models have different sizes as specified

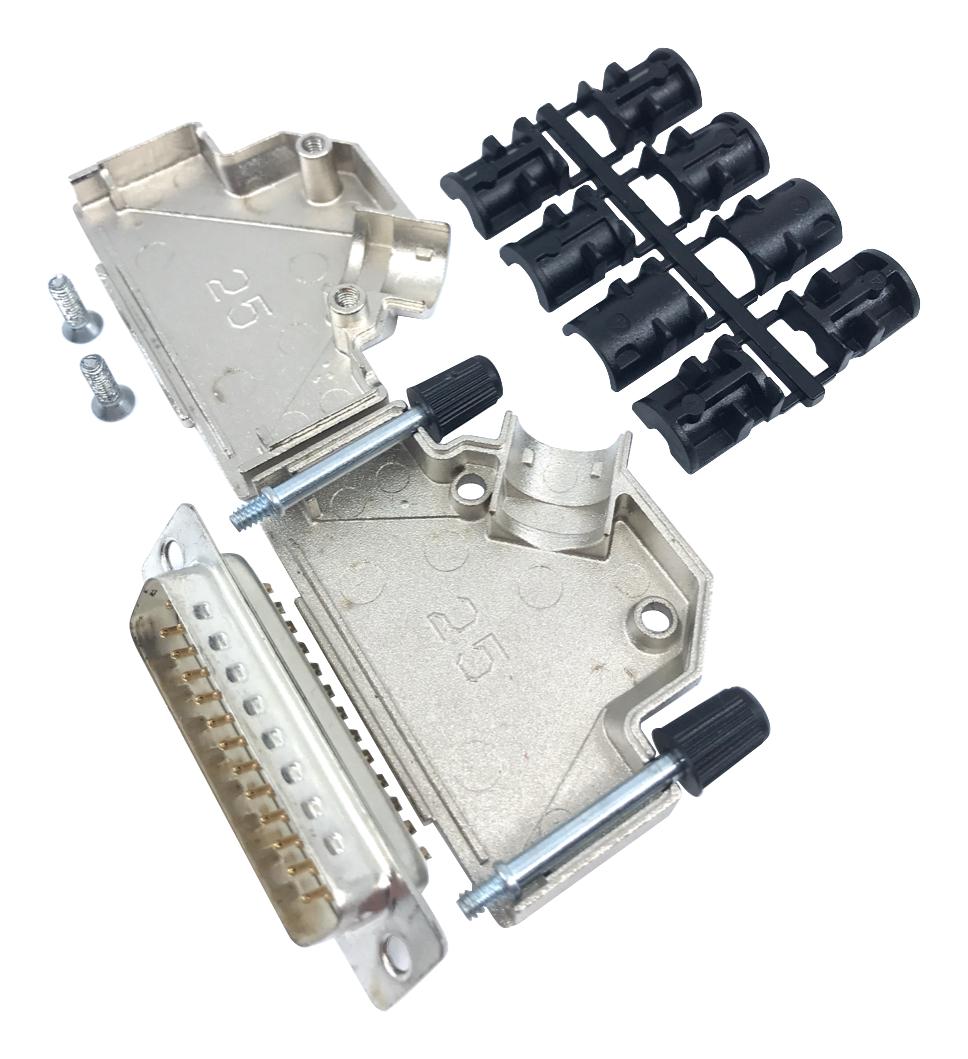

Buy the Multicomp Series 45-Degree Angled D-Sub Connectors MP002035
Purchase the Multicomp D-Sub connector with backshell today for reliable, high-quality connections in electronic equipment. Designed for easy installation, it features an angled design for space-saving applications and provides superior EMI/RFI shielding to minimize interference. Crafted from durable zinc and steel, it withstands harsh temperatures from -55°C to +105°C and supports cables ranging from 13 to 23 mm diameter. Its high-attenuation properties (>40dB) ensure effective signal integrity and reduced noise, making it ideal for professional, industrial, and communications systems needing robust, long-lasting performance.
Get Multicomp MP002035 today—built for durability and high-performance electronic connections with excellent shielding.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002035?
You can click on the BUY or RFQ button to purchase MP002035 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002035?
You can download the MP002035 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002035?
MULTICOMP PRO
