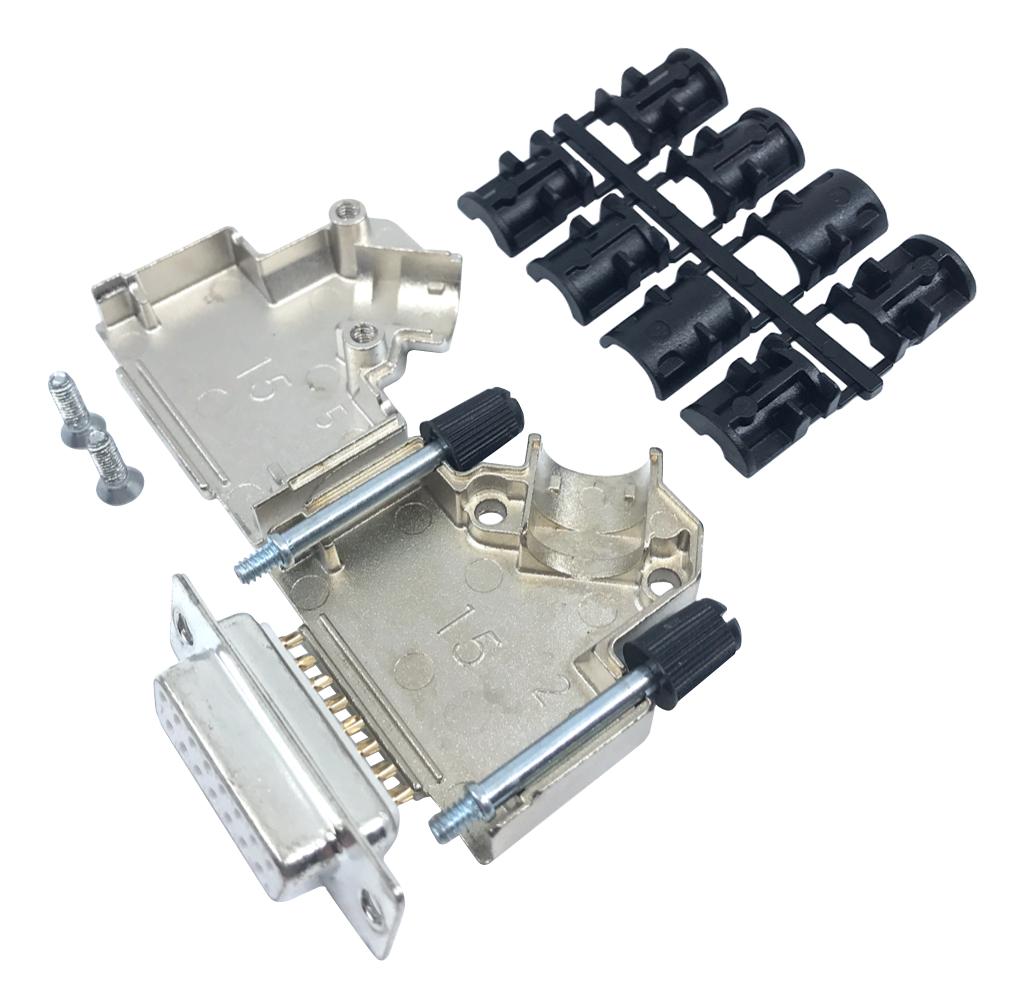

MULTICOMP PRO MP002036 angled D-Sub connector
This angled D-Sub connector with backshell offers reliable performance and EMI shielding, available in sizes 9, 15, 25, and 37. Constructed with zinc, nickel-plated shells and copper alloy contact pins with gold over nickel plating, it withstands temperatures from -55°C to +105°C. The connector features long UNC 4-40 jackscrews, a polycarbonate cable strain relief, and an angled cable outlet. It provides > 40dB attenuation between 30 MHz and 1 GHz, with resistance over 1000MO and withstand voltage of 1kV for 1 minute, certified per VDE and FCC standards.
MULTICOMP PRO MP002036 angled D-Sub connector Specifications:
- Backshell Material: Zinc, Ni-plated
- Temperature Range: -55°C to +105°C
- Cable Strain Relief: Polycarbonate UL94 V-0
- Cable Diameter: 13 to 23 mm
- Locking Screws: Long jackscrews UNC 4-40
- Assembly Screws: Taptite thread forming
- Cable Outlet: Angled
- Attenuation Factor: > 40dB between 30 MHz and 1GHz
- Insulator: PBT, UL94 V-0
- Shell: Steel, Tin-plated
- Contact Pins: Copper alloy
- Contact Plating: Gold over Nickel
- Insulator Resistance: > 1000MO
- Withstand Voltage: 1kV for 1 min
Buy the Multicomp Series Angled D-Sub Connector: MP002036
Order the Multicomp Series angled D-Sub connector MP002036 online now and ensure your electronic assemblies are protected against EMI interference. Featuring zinc shells, gold-plated contacts, and robust construction, this connector supports high-temperature ranges from -55°C to +105°C. Its angled cable outlet facilitates compact installations, while long UNC 4-40 jackscrews provide a secure fit. With > 40dB attenuation between 30 MHz and 1 GHz, resistance over 1000MO, and a withstand voltage of 1kV, it is ideal for professional electronic applications. Shop now for reliable connectivity.
Get Multicomp Series MP002036 today—built for precision and long-lasting durability with reliable EMI shielding and a robust construction.
