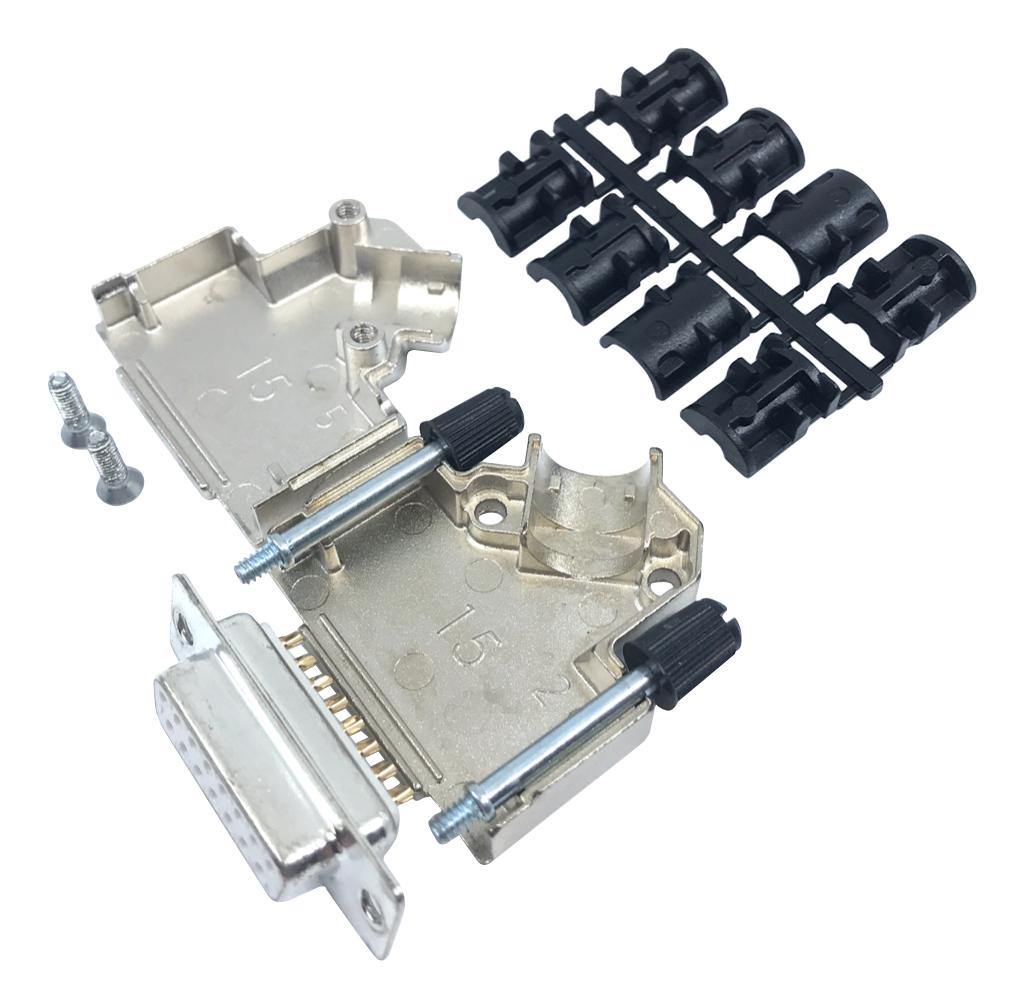

MULTICOMP PRO MP002038 D-Sub Connector with Backshell
The D-Sub connector with backshell is a reliable high-quality connection solution designed for industrial applications. Made from zinc, nickel-plated metal, it offers excellent durability and electromagnetic interference suppression. Suitable for round foil and braided cables, it features long UNC 4-40 jackscrews for secure fastening, angled cable outlet, and a temperature range of -55°C to +105°C. The connector provides high insulator resistance (>1000 MΩ), withstands 1 kV for 1 minute, with a seal of UL94 V-0 insulator material. It ensures robust, interference-free communication in demanding environments.
MULTICOMP PRO MP002038 D-Sub Connector with Backshell Specifications:
- Material Backshell: Zinc, Ni-plated
- Temperature Range: -55°C to +105°C
- Cable Strain Relief: Polycarbonate UL94 V-0
- Cable Diameter: 13 to 23 mm
- Locking Screws: Long jackscrews UNC 4-40
- Assembly Screws: Taptite thread forming
- Cable Outlet: Angled
- Attenuation Factor: > 40dB between 30 MHz and 1GHz
- Insulator: PBT, UL94 V-0
- Shell Material: Steel, Tin-plated
- Contact Material: Copper alloy
- Contact Plating: Selective Gold over Nickel
- Insulator Resistance: > 1000 MΩ
- Withstand Voltage: 1 kV for 1 min
- Connector Type: D-Sub with backshell, various sizes (DE-9, DA-15, DB-25, DC-37)
Buy the Multicomp PRO MP002038 U+2013 Reliable D-Sub Connector with Backshell for Industrial Applications
Order the Multicomp PRO D-Sub Connector with Backshell today and discover reliable, high-performance connectivity solution ideal for industrial, automation, and communications applications. Designed for durability and interference shielding, it features an angled cable outlet, long UNC jackscrews, and high-temperature tolerance. Made from zinc, steel, and high-quality insulators, it ensures excellent electrical performance and mechanical stability. Perfect for secure, interference-free connections in demanding environments. Purchase now for fast delivery and exceptional reliability to your projects.
Buy Multicomp PRO MP002038 now and experience unmatched reliability and performance with a robust angled design suitable for demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002038?
You can click on the BUY or RFQ button to purchase MP002038 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002038?
You can download the MP002038 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002038?
MULTICOMP PRO
