MULTICOMP-PRO MP002476 Sealed D-Sub Connector
The MP Sealed D-Sub Series connectors are rugged, environmentally sealed panel-mount devices suitable for demanding applications across audio, automation, process control, and communications. Fully rear potted, these connectors provide reliable protection even when unmated or without sealing caps, thanks to their IP67 sealing rating. Available in 9-pin and 15-pin configurations with screw mating and gold-plated contacts, they ensure excellent electrical performance and durability. Their robust design makes them ideal for harsh environments, ensuring stable connections in industrial and networking setups.
MULTICOMP-PRO MP002476 Sealed D-Sub Connector Specifications:
- IP Rating: IP67
- Material Housing: Thermoplastic, Black
- Contacts: Copper Alloy, Gold Plated
- Shell: Cold Roll Steel, Ni Plated
- Seal: EPDM, Black
- Suitable Cable OD: 4mm to 8mm
- Recommend Cover Torque: 6 to 7 Kgf-cm
- Recommend Gland Nut Torque: 9 to 10 Kgf-cm
- Panel Thickness: 0.8mm to 2mm
- Screw: #4-40, Ni Plated, Stainless
- Dimensions vary per configuration, with specific measurements provided in datasheets
- Designed for demanding industrial environments with sealed protection and durable contacts

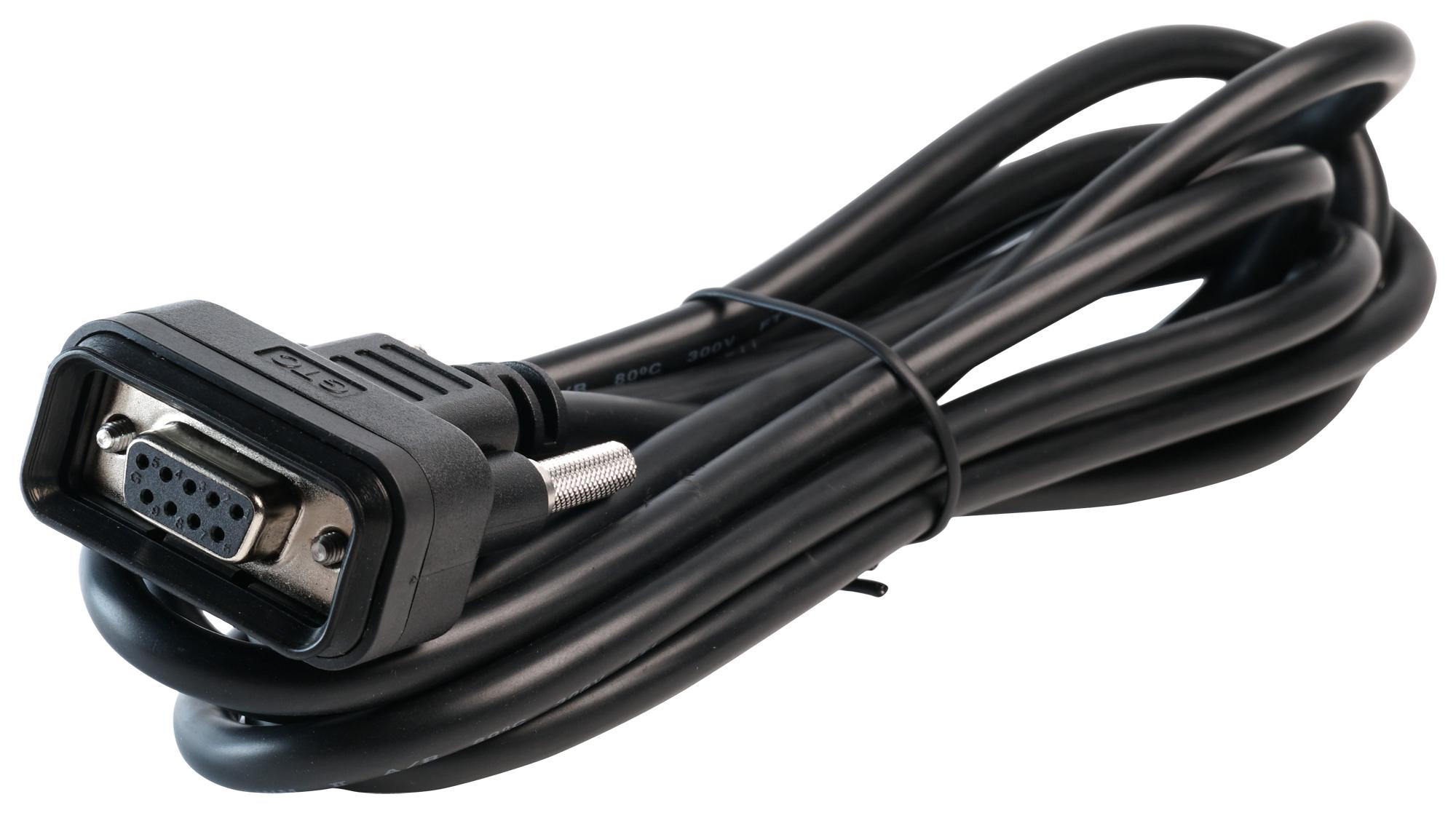

Buy the Buy Multicomp IP67 Sealed D-Sub Connector Part Number MP002476 Online
Purchase the durable and reliable Multicomp Sealed D-Sub Connector MP002476 online today. This high-quality, weatherproof connector features IP67 sealing, gold-plated contacts, and rugged thermoplastic housing, making it ideal for demanding industrial, automation, or networking environments. Its sealed design offers protection against dust and water ingress, ensuring stable, corrosion-resistant connections even in harsh conditions. Easy to install with screw mating and suitable for 4mm to 8mm cable OD, it's perfect for ensuring reliable performance in tough applications.
Get Multicomp IP67 Sealed D-Sub Connector MP002476 today—built for corrosion resistance and long-lasting durability in harsh conditions.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002476?
You can click on the BUY or RFQ button to purchase MP002476 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002476?
You can download the MP002476 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002476?
MULTICOMP-PRO
