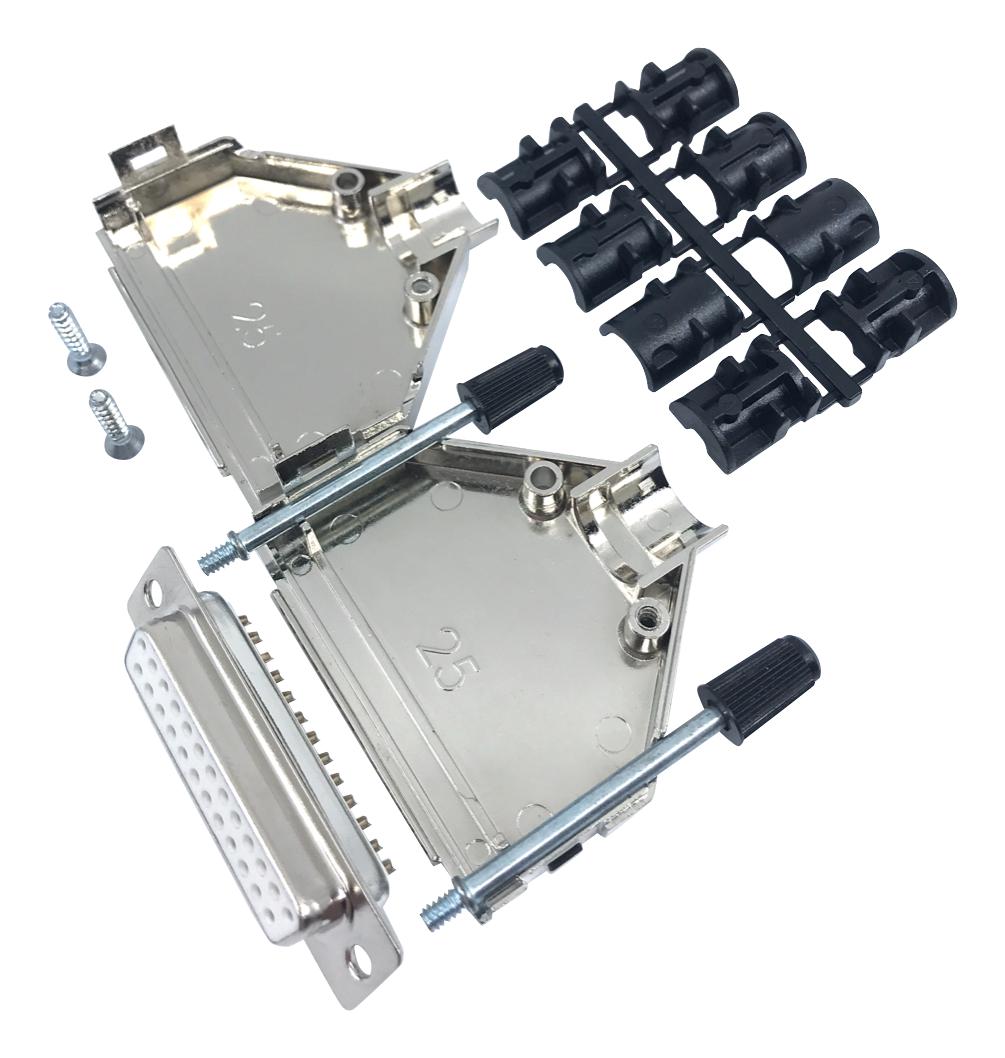

MULTICOMP PRO MP002042 D-Sub Connector
This D-Sub connector with backshell features a robust design suitable for reliable serial and data communication. Made from metalized plastic and steel, it provides excellent electromagnetic interference and RF shielding. Accepting round foil and braided cables with diameters from 3mm to 13mm, it is approved by VDE, FCC, and EU standards. The long UNC 4-40 jackscrews facilitate secure mounting, while its high insulation resistance and withstand voltage ensure durability in harsh environments. Perfect for industrial and automation applications requiring secure, interference-free connections.
MULTICOMP PRO MP002042 D-Sub Connector Specifications:
- Material: ABS, Ni-plated
- Temperature Range: -40°C to 105°C
- Cable Strain Relief: Polycarbonate, UL94 VO
- Cable Diameter: 3mm to 13mm
- Locking Screws: Long jackscrews UNC 4-40, Black
- Attenuation Factor: > 40 dB between 30 MHz and 1GHz
- Insulator: PBT, UL94 V-0
- Shell: Steel, Tin-plated
- Contact Pins: Copper alloy
- Contact Plating: Gold over Nickel
- Temperature Range (connector): -55°C to +105°C
- Insulator Resistance: > 1000MΩ
- Withstand Voltage: 1kV for 1 min
- Stamped Contacts: Class 3, 100 inserts minimum
- Dimensions: Vary by part number, approx. 34 to 69.5 mm in based length
Buy the Multicomp Series D-Sub Connector: MP002042
Order the Multicomp MP002042 D-Sub connector with backshell online today for secure, interference-free serial data connections. Manufactured with durable materials including metalized plastic and steel, this connector offers excellent EMI shielding and accepts cables from 3mm to 13mm diameter. It features long UNC 4-40 jackscrews for easy installation, high insulation resistance over 1000MΩ, and withstands voltages up to 1kV, making it ideal for industrial environments needing robust and reliable connectivity.
Buy Multicomp MP002042 now and experience reliable, interference-free electronic connections for industrial automation.
