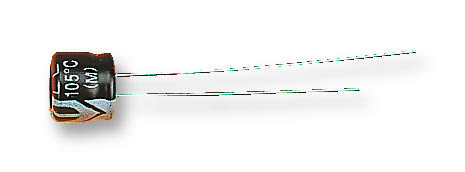

MULTICOMP PRO MCUMHR16V476M63X5 Radial Electrolytic Capacitors
Ultra miniature radial electrolytic capacitors designed for high-density electronic devices. With a body length of only 5mm, these capacitors are suitable for compact applications like automatic office machines, pocket calculators, car stereos, mini-audio sets, VCRs, cameras, CD-ROMs, and notebooks. Operating from -40°C to +85°C, they offer ratings from 6.3V to 50V DC and capacitance from 1uF to 100uF with +20% tolerance at +20°C. They feature low leakage current, excellent stability at low/high temperatures, and are solvent-proof for circuit-board cleaning processes.
MULTICOMP PRO MCUMHR16V476M63X5 Radial Electrolytic Capacitors Specifications:
- Operating temperature range: -40°C to +85°C
- Rated working voltage range: 6.3V DC to 50V DC
- Nominal capacitance range: 1uF to 100uF
- Capacitance tolerance: +20% (at +20°C, 120 Hz)
- Leakage current: | = 0.01 CV or 3 (μA) after two minutes
- Dissipation factor (tan δ): Max 0.24 at 6.3V, 0.16 at 16V, 0.12 at 35V, 0.10 at 50V
- Low temperature characteristics: -25°C / +20°C: 4μA at 6.3V, 2μA at 16V, 2μA at 35V, 2μA at 50V; -40°C / +20°C: 8μA at 6.3V, 4μA at 16V, 3μA at 35V, 3μA at 50V
- Post 1,000 hours at +85°C: Capacitance within +20% of initial value, leakage current below initial, dissipation factor within 200% of initial
- Shelf life after storage for 500 hours at +105°C: Same limits as high temperature loading
- Solvent-proof for ultrasonic cleaning and in steam, suitable for circuit-board cleaning up to 5 minutes in Freon TE, TES solvents
Buy the Multicomp Series MCUMHR16V476M63X5 Radial Electrolytic Capacitors: Reliable Power Components
Purchase your Multicomp Series radial electrolytic capacitors online today to benefit from fast delivery, high-quality components, and reliable performance in all your electronic applications. Designed for compact spaces and high-density circuit boards, these capacitors operate efficiently from -40°C to +85°C, with voltage ratings from 6.3V to 50V and capacitance values up to 100uF. Their robust design offers excellent stability, low leakage current, and solvent-proof features, making them ideal for use in automatic office equipment, consumer electronics, and automotive applications. Order now to keep your projects running smoothly with dependable, high-quality components.
Order your Multicomp Series MCUMHR16V476M63X5 radial capacitors today and ensure your high-density electronic projects have dependable, compact power components.
