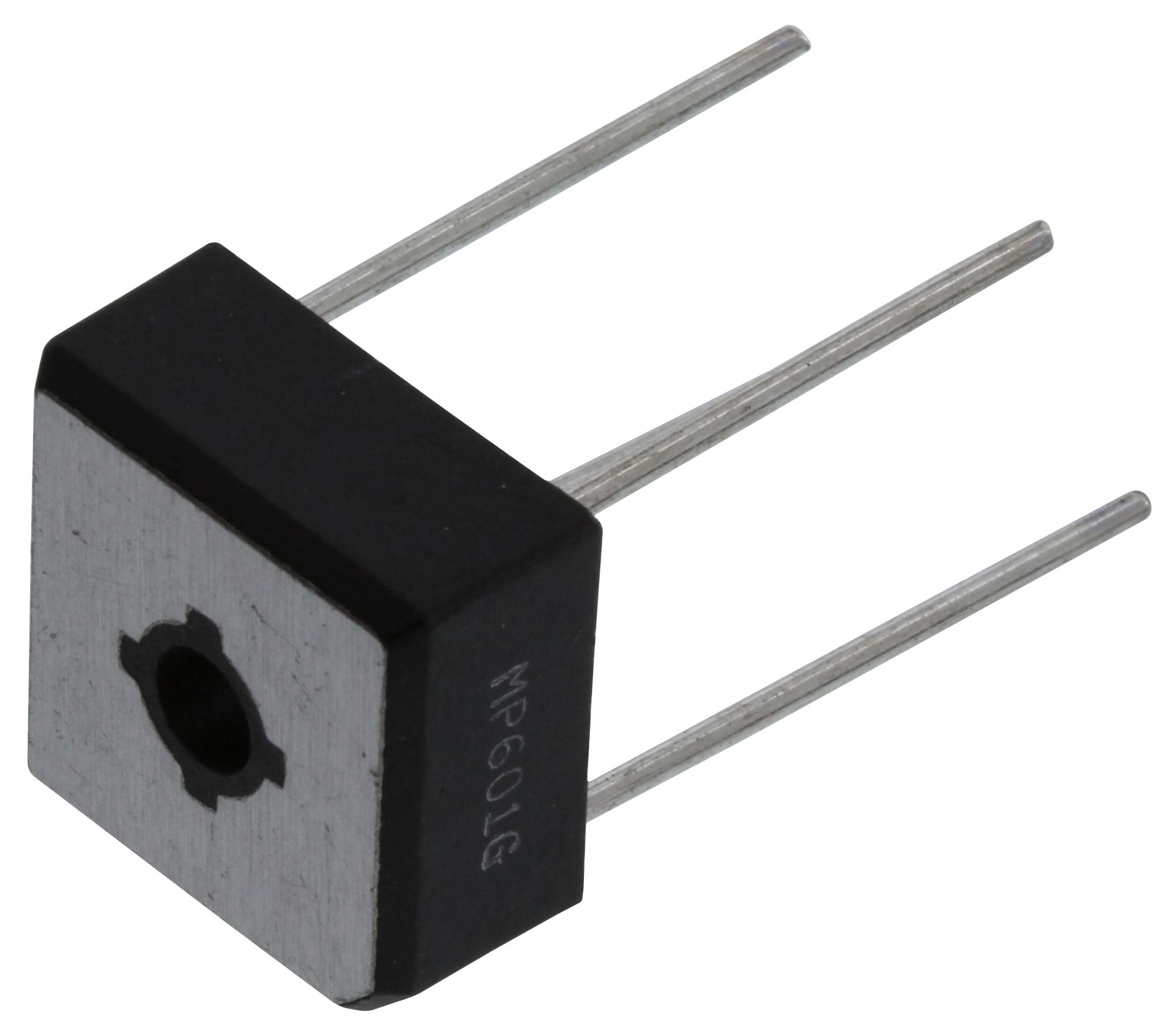

MULTICOMP PRO MP601G bridge rectifier
The MP601G is a glass passivated bridge rectifier rated at 6A and 100V, designed for reliable use in various power conversion applications. It features low forward voltage drop, surge overload capacity of 150 amperes, and compact size for easy installation. The device can be mounted in any position and operates across a temperature range of -55°C to +150°C. Suitable for rectification in single-phase AC circuits, it ensures high efficiency and durability with copper leads plated with silver, making it ideal for industrial and electronic applications requiring robust, high-current rectifiers.
MULTICOMP PRO MP601G bridge rectifier Specifications:
- Surge overload rating: 150 amperes peak
- Reverse Voltage: 50 to 600 Volts
- Forward Current: 6 Amperes
- Maximum Recurrent Peak Reverse Voltage: 50V to 600V
- Maximum RMS Bridge Input Voltage: 35V to 420V
- Maximum Forward Surge Current: 150A for 8.3ms
- Maximum Forward Voltage Drop: 1.0V at 6A
- Maximum Reverse Current: 10 pA at 25°C
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Mechanical: Copper leads with silver plating, compact size for versatile mounting
- Dimensions: Approximate length 15.9 mm / 0.626 inches, width 7.3 mm / 0.287 inches, height 6.3 mm / 0.248 inches
Buy the Farnell MP601G – Reliable Rectification for Industrial Applications
Purchase the Farnell MP601G bridge rectifier online today and enjoy expert-quality power conversion components. Designed for 6A and 100V applications, this high-efficiency rectifier features low forward voltage drop, surge overload capacity of 150 amperes, and a compact form factor. Suitable for industrial and electronic use, it operates reliably across a wide temperature range and can be installed in any position. Order now to ensure high durability, optimal performance, and quick delivery, making it ideal for your power circuits and rectification needs.
Buy Farnell MP601G now and experience unmatched reliability and high current performance in your power conversion projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP601G?
You can click on the BUY or RFQ button to purchase MP601G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP601G?
You can download the MP601G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP601G?
MULTICOMP PRO
