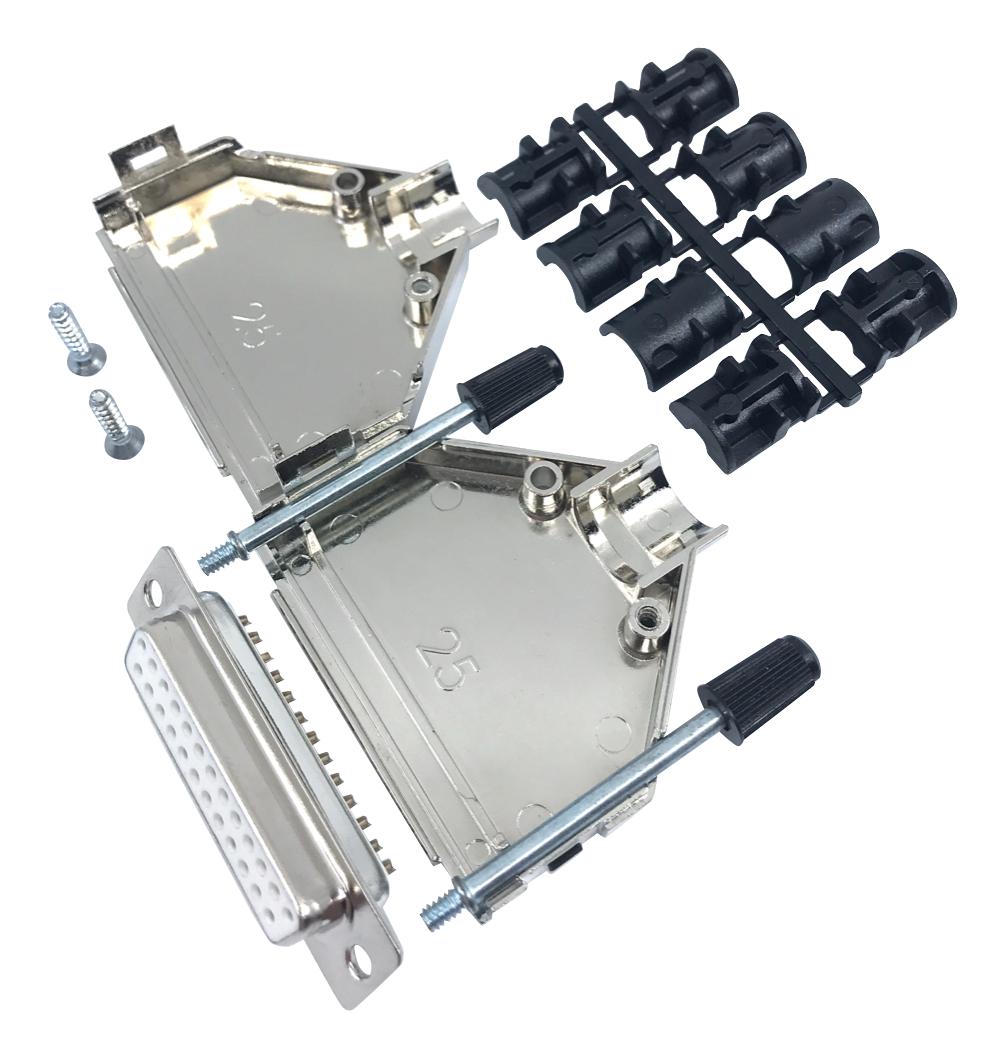

MULTICOMP PRO MP002046 D-Sub Connector
This D-Sub connector with backshell offers reliable shielding and easy installation for electronic assemblies, minimizing electromagnetic interference. Available in multiple sizes including DE-9, DA-15, DB-25, and DC-37, it features durable metalized plastic shells, long jackscrews, and accepts round foil and braided cables. The connector provides excellent signal integrity with > 40 dB attenuation between 30 MHz and 1 GHz, and withstands temperatures from -55°C to +105°C. Suitable for professional and industrial applications requiring high-quality, RoHS-compliant D-Sub connectors with robust construction and easy assembly.
MULTICOMP PRO MP002046 D-Sub Connector Specifications:
- Material: ABS, Ni-plated shell; PBT insulator, UL94 V-0; Steel, Tin-plated shell
- Temperature Range: -55°C to +105°C
- Cable Strain Relief: Polycarbonate, PC UL94 VO
- Cable Diameter: 3mm to 13mm
- Locking Screws: Long jackscrews UNC 4-40, black color, self-tapping assembly screws
- Attenuation Factor: > 40 dB between 30 MHz and 1 GHz
- Contact Pins: Copper alloy with selective gold over nickel plating
- Insulator Resistance: > 1000MΩ
- Withstand Voltage: 1kV for 1 min
- Stamped Contacts: Class 3, minimum 100 inserts
- Dimensions: Varies per model, detailed in diagram (e.g., MP002016: 34mm, MP002017: 39.3mm, MP002018: 53mm, MP002019: 69.5mm)
Buy the ACME Series Backshell: MP002046
Enhance your electronic assemblies with our top-grade D-Sub connector featuring a durable metalized plastic backshell. Designed for reliable shielding and minimal interference, this connector supports a wide range of cable types and sizes, including round foil and braided cables. Its high-performance attenuation of over 40 dB ensures signal integrity across frequencies from 30 MHz to 1 GHz. With temperature resilience from -55°C to +105°C, these connectors are ideal for industrial, commercial, and aerospace applications. Purchase online today for quick delivery and superior quality assurance.
Order your ACME Series MP002046 high-quality D-Sub connector with backshell today and ensure reliable, EMI-shielded electronic connections for your projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002046?
You can click on the BUY or RFQ button to purchase MP002046 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002046?
You can download the MP002046 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002046?
MULTICOMP PRO
