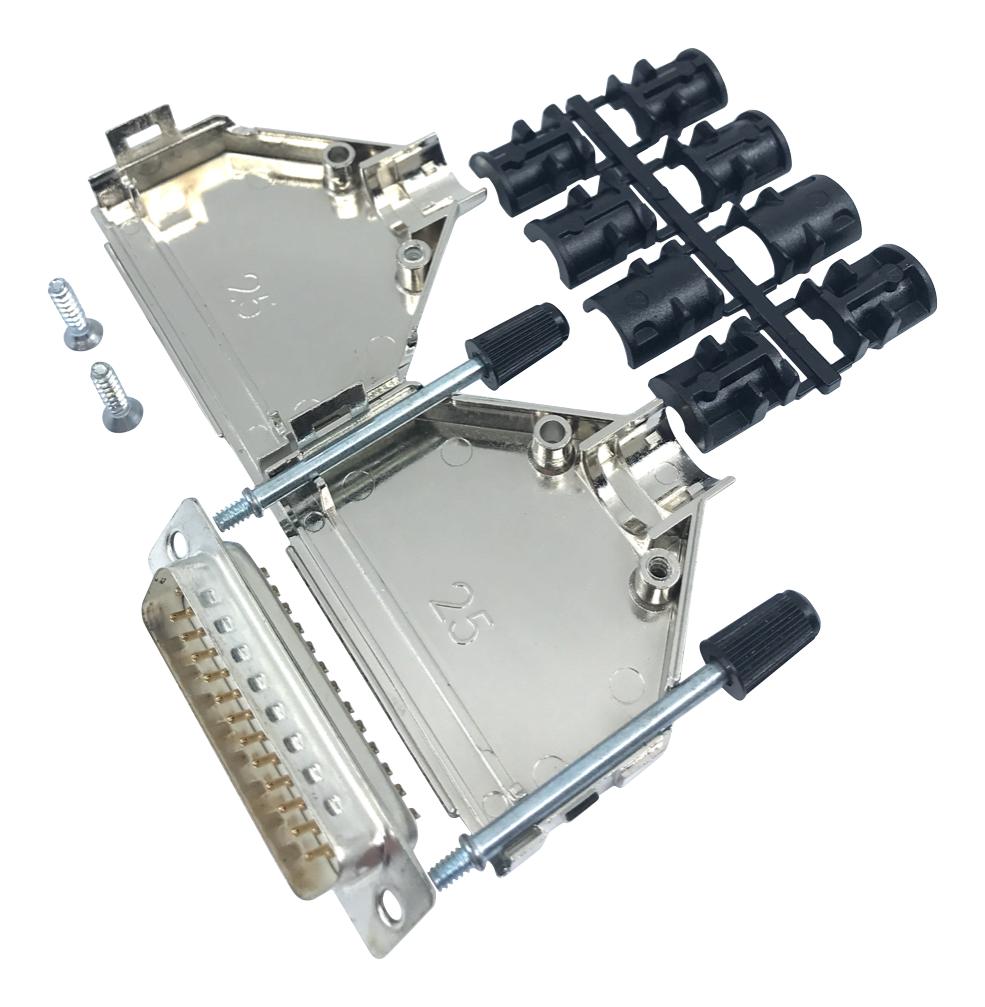

MULTICOMP PRO MP002047 D-Sub Connector with Backshell
The D-Sub Connector with backshell offers reliable electromagnetic and RF interference minimization, facilitated by high-quality material construction. The metallic backshells, available in various sizes including DE-9, DA-15, DB-25, and DC-37, are designed with corrosion-resistant steel shells and nickel-plated components for durability. They accommodate round foil and braided cables with diameters from 3mm to 13mm. The connectors feature long UNC 4-40 jackscrews, self-tapping assembly screws, and straight cable outlets. Rated for temperatures from -55°C to +105°C and with an attenuation factor over 40 dB between 30 MHz and 1 GHz, these products ensure stable, high-performance connections suitable for industrial environments.
MULTICOMP PRO MP002047 D-Sub Connector with Backshell Specifications:
- Material: ABS, Ni-plated
- Temperature Range: -40°C to 105°C
- Cable Strain Relief: Polycarbonate, UL94 VO
- Cable Diameter: 3mm to 13mm
- Locking Screws: Long jackscrews UNC 4-40, Black
- Connector Insulator: PBT, UL94 V-0
- Shell Material: Steel, Tin-plated
- Contact Pins: Copper alloy with Gold over Nickel plating
- Insulator Resistance: > 1000MΩ
- Withstand Voltage: 1kV for 1 min
- Attenuation Factor: > 40 dB between 30 MHz and 1 GHz
- Stamped Contacts: Class 3, 100 inserts minimum
- Dimensions: Vary by model, e.g., MP002017: 39.3 mm, MP002018: 69.5 mm
Buy the Multicomp MP002047 – Reliable D-Sub Connector for Industrial Applications
Order the multicomp MP002047 D-Sub connector with backshell online now for reliable, high-quality connections that excel in industrial settings. These connectors offer excellent interference shielding, a temperature range of -55°C to +105°C, and easy assembly with straight cable outlets and long UNC jackscrews. They accommodate cable diameters from 3mm to 13mm, ensuring versatility, durability, and high-performance in demanding applications. Purchase today to ensure your electrical systems operate with stability and efficiency over the long term.
Get multicomp MP002047 today—built for precision and long-lasting durability in industrial environments with high interference resilience.
