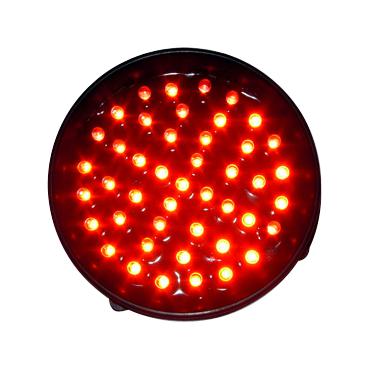

MULTICOMP PRO MP002078 LED Traffic Light Cluster
The LED Traffic Light Pixel Cluster provides high visibility with over 150 candela brightness and a 30°/30° viewing angle, suitable for traffic and signaling applications. Encapsulated in matte black, it features 45 red LEDs with a 100mm diameter, operating at 12V or 24V DC with a current of 300mA. Its IP66 rating ensures protection against dust and water, making it ideal for outdoor use. The product includes GND, VCC+, and red wiring for easy connection, and complies with RoHS standards for environmentally safe manufacturing.
MULTICOMP PRO MP002078 LED Traffic Light Cluster Specifications:
- Number of LEDs: 45
- Brightness: >150cd
- Dimensions: 100mm diameter
- Operating Voltage: 12V DC / 24V DC
- Current: 300mA
- Viewing Angle: 30°/30°
- Distance Visibility: 2500m
- Ingress Protection: IP66
- Encapsulation: Matte black
- RoHS Compliant
- Connector: VCC+, GND-, Red wire
- Operating Temperature: -20°C to +50°C
- Material: UV-resistant polycarbonate housing
Buy the Multicomp Pro MP002078 – Reliable Traffic Signal Light for Industrial Applications
Enhance traffic control systems with this high-brightness LED Traffic Light Cluster. Featuring 45 LEDs with over 150 candela brightness, a 100mm diameter, and IP66 rating for outdoor durability. Easy to connect with VCC+, GND-, and red wire terminals, and ideal for signaling in various industrial and traffic management settings. RoHS compliant, it ensures environmentally-friendly operation. Suitable for applications requiring visibility up to 2500 meters, reliably operating at 12V or 24V DC with a current of 300mA. Durable, weatherproof, and quick to install.
Buy Multicomp Pro MP002078 now and experience unmatched brightness and outdoor durability for traffic signaling projects.
