MULTICOMP-PRO MP002259 Inductive Proximity Sensor

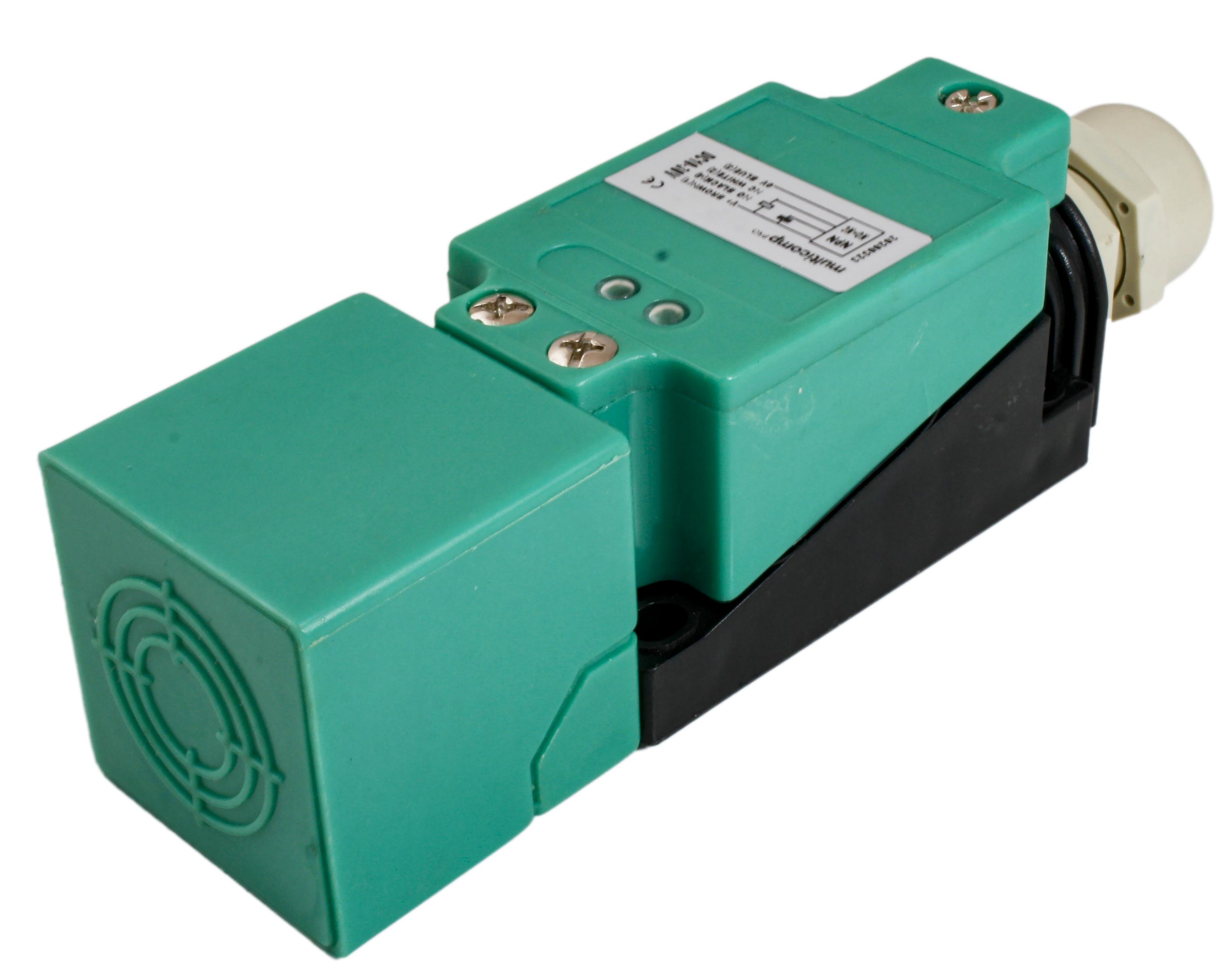

This inductive proximity sensor features a compact 40mm square plastic housing with a shielded sensing distance of 22.5mm and a mounting distance of 25mm. It operates on a wide voltage range of 10V to 30V DC or 90V to 250V AC, with options for NPN or PNP outputs, and can handle currents up to 300mA. It offers water resistance with IP67 rating, protection against over-current, short circuits, and polarity reversal. Ideal for industrial applications such as measuring, counting, and position detection across various industries.
MULTICOMP-PRO MP002259 Inductive Proximity Sensor Specifications:
- Housing Size: 40mm x 40mm x 120mm
- Mounting Distance: 25mm shielded
- Sensing Distance: 22.5mm shielded
- Power Supply: 10V-30V DC / 90V-250V AC
- Current Output: 200mA (DC), 300mA (AC)
- Frequency: 150Hz (DC 3/2 wires), 20Hz (AC 2 wires)
- Temperature Range: 1-20°C to 70°C
- Protection: IP67 water-resistant
- Polarity Reversal: Yes
- Short Circuit Protection: 3 wires: Yes, 2 wires: No
- Installation: Suitable for use in metal-surrounded environments with recommended mounting distances
- Output Types: NPN NO, NPN NC, PNP NO, PNP NC, AC NO, AC NC
- Material: Plastic housing with water-resistant features
Buy the Buy Multicomp Pro Inductive Proximity Sensor Part Number MP002259 Online
Enhance your automation setup with the reliable and water-resistant inductive proximity sensor from Multicomp Pro. Featuring a compact 40mm square plastic housing, it offers precise sensing with a shielded range of 22.5mm and a mounting distance of 25mm. Compatible with various voltage supplies from 10V to 250V AC/DC and supporting both NPN and PNP outputs, this sensor is perfect for industrial measurement, counting, and position detection in manufacturing, chemical, and light industries. Its IP67 protection ensures durability in harsh environments, making it a valuable addition to your automation tools.
Buy Multicomp Pro MP002259 now and experience reliable, water-resistant detection suitable for industrial automation and metal object sensing.
