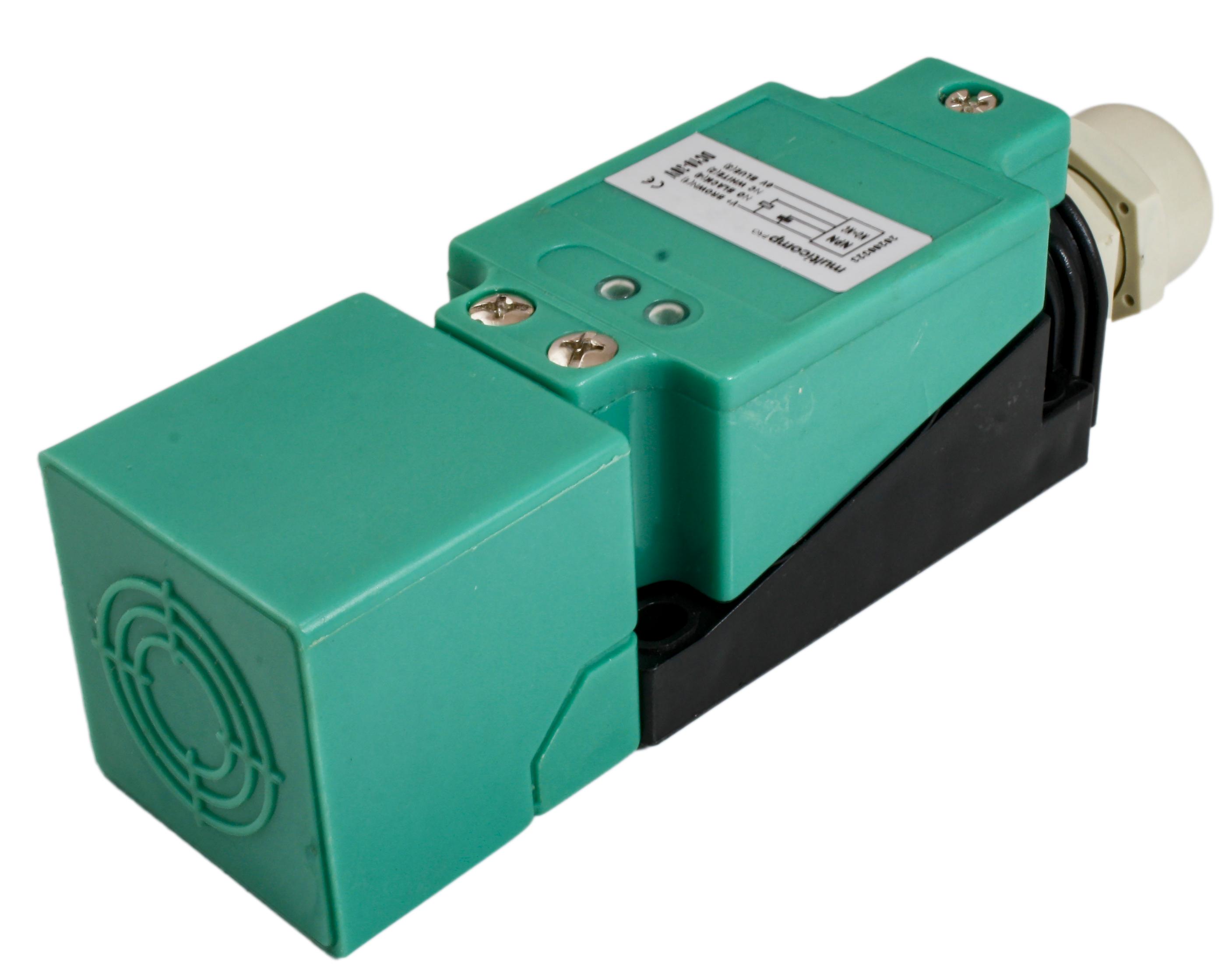

MULTICOMP-PRO MP002262 Inductive Proximity Sensor
The inductive proximity sensor features a 40mm square plastic housing with a protected IP67 water-resistant design. It is suitable for detecting ferrous metals with a sensing distance of 22.5mm and a shielded mounting distance of 25mm. The sensor operates on a voltage range of 10V to 30V DC or 90V to 250V AC, and it provides current outputs of 200mA or 300mA. With short circuit and polarity reversal protections, it is ideal for industrial automation, measuring, counting, and positioning applications. Easy to install and highly reliable, it performs in temperatures from 1°C to 70°C.
MULTICOMP-PRO MP002262 Inductive Proximity Sensor Specifications:
- Housing: 40mm square plastic
- Protection Rating: IP67 water-resistant
- Sensing Distance: 22.5mm shielded
- Mounting Distance: 25mm shielded
- Power Supply: 10V-30V DC / 90V-250V AC
- Current Output: 200mA (DC), 300mA (AC)
- Operating Temperature: 1°C to 70°C
- Output Type: NPN / PNP
- Configuration: 3-wire, 4-wire
- Protection: Against polarity reversal, short circuit protected
- Frequency: 150Hz (DC), 75Hz (DC), 20Hz (AC)
Buy the Buy Multicomp Pro Inductive Proximity Sensor Part Number MP002262 Online
Purchase the Multicomp Pro inductive proximity sensor online today for dependable ferrous metal detection in industrial environments. Its IP67 rated water resistance ensures durability against moisture and dust, while the shielded sensing distance of 22.5mm offers accurate positioning. Compatible with a wide voltage range from 10V to 30V DC and 90V to 250V AC, it features short circuit and polarity protection, making it suitable for automation, measuring, and counting tasks. Easy to install and built for long-term use, the sensor guarantees reliable performance in diverse industrial applications.
Get Multicomp Pro MP002262 today—built for industrial reliability, precise detection, and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002262?
You can click on the BUY or RFQ button to purchase MP002262 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002262?
You can download the MP002262 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002262?
MULTICOMP-PRO
