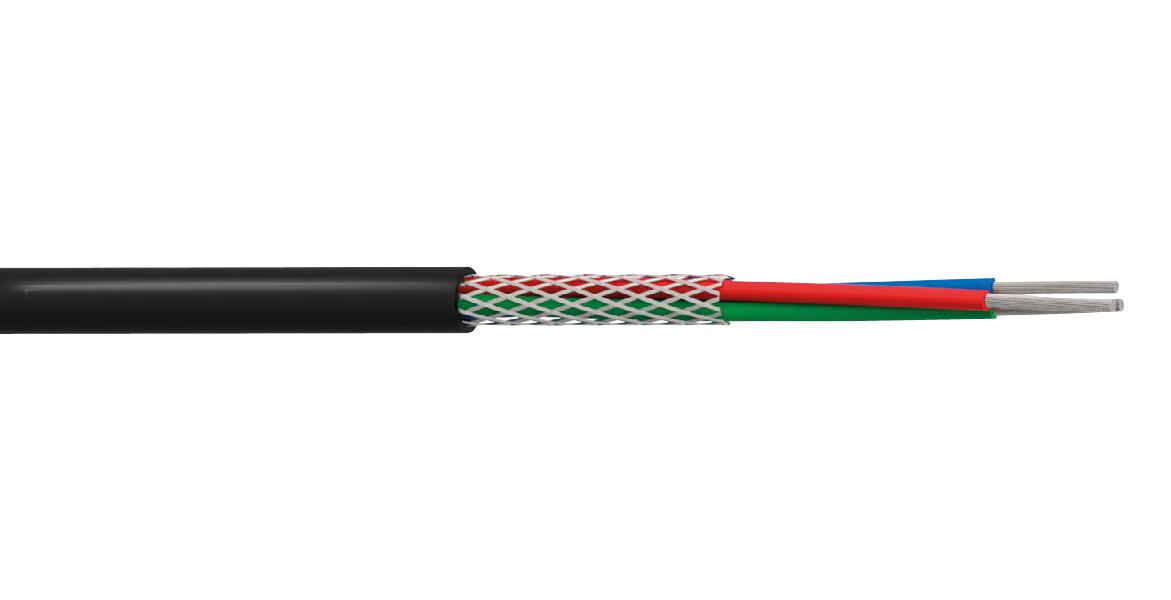

MULTICOMP PRO MP002399 Multicore Cables
These multicore flexible cables are designed for high-density wiring in aircraft, process control systems, computers, and military equipment. They comply with Defence Standard 61-12 Part 5 and RoHS. Featuring tinned copper conductors, PVC insulation and sheath, and copper wire braids for screening, they are available in various colors and sizes, with voltage ratings up to 440V r.m.s. at frequencies up to 1.6kHz. Suitable for critical electronic applications requiring reliable and insulated multicore cabling, they ensure durability and safety in demanding environments.
MULTICOMP PRO MP002399 Multicore Cables Specifications:
- Voltage Rating: 440V r.m.s. at frequencies up to 1.6kHz
- Conductor Material: Class 5 flexible tinned copper
- Conductor Diameter: 0.5mm (16/0.2mm)
- Insulation & Sheath Material: PVC (Polyvinyl Chloride)
- Screen: Tinned Copper Wire Braid (TCWB)
- Sheath Colour: Black, Grey
- Current Carrying Capacity: 2.5 Amps
- Temperature Rating: Fixed -30°C to +70°C, Flexed -15°C to +70°C
- Minimum Bending Radius: 7.5 x overall diameter
- Dimensions: Nominal overall diameter varies by size, with weights from 31.97 kg/km to 244 kg/km
- Construction: Circular PVC insulated and sheathed, with optional screening depending on series
Buy the Multicore Cables Series Defence Standard 61-12 Part 5: MP002399
Order multicore cables MP002399 online today to ensure reliable, high-quality wiring for aerospace, military, and industrial applications. These cables feature PVC insulation and sheaths, tinned copper conductors, and are compliant with Defence Standard 61-12 Part 5, providing excellent insulation and durability. Perfect for high-density wiring, they support demanding environments with temperature ratings up to 70°C and voltages up to 440V. Experience the convenience of online purchasing with fast delivery, guaranteed quality, and technical support, making your projects safer and more efficient.
Buy multicore cables MP002399 now and experience unmatched reliability and performance in high-density wiring applications.
