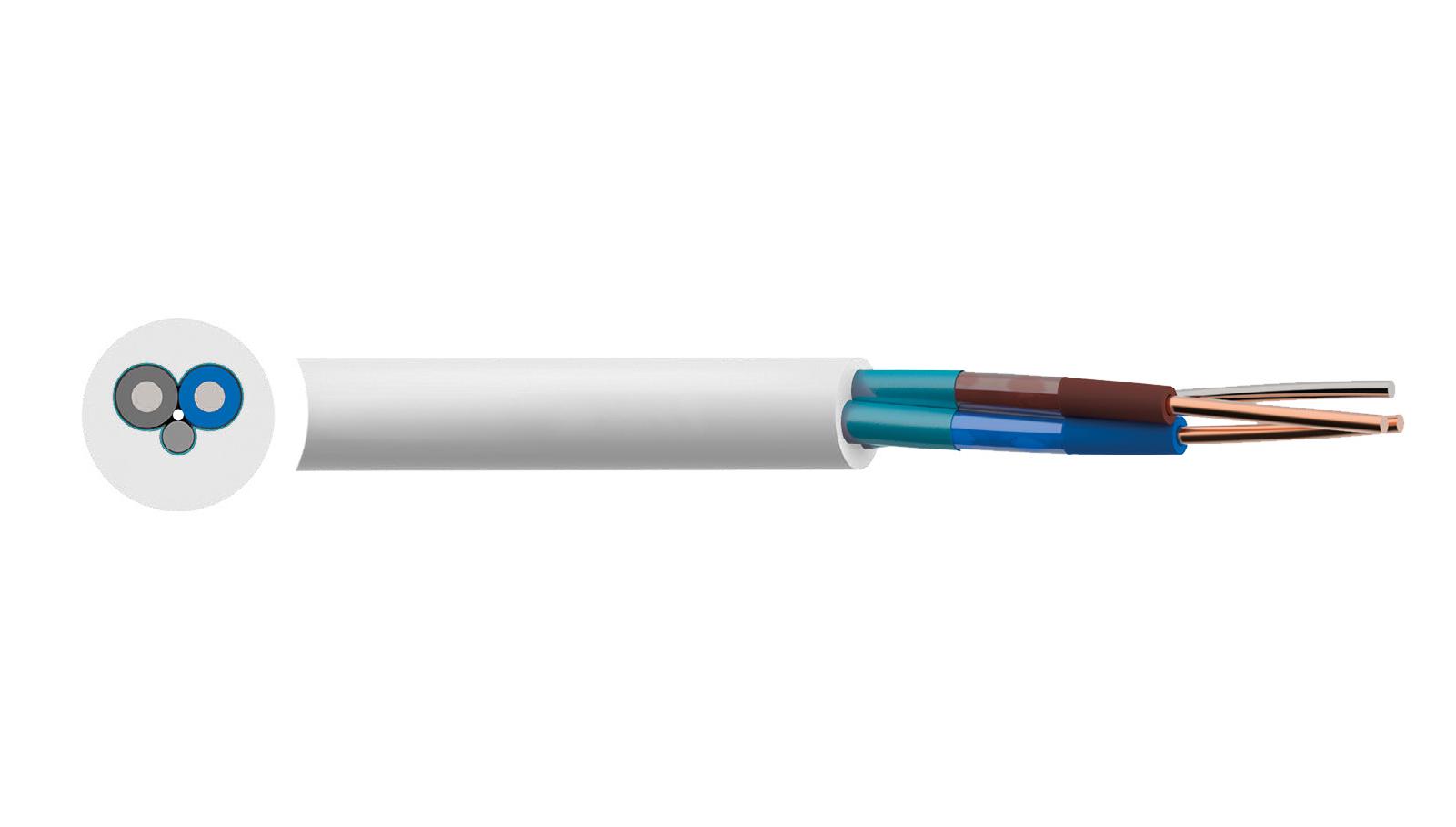

MULTICOMP-PRO MP002411 fire resistant multicore cable
This fire-resistant multicore cable with solid conductors is designed for use in fire alarm, emergency lighting, and fire detection circuits. It maintains functionality during fire conditions, ensuring safety and compliance with standards like BS 7629-1 and BS EN/IEC 60754-1/2. Its construction features high-performance fire-resistant silicone rubber insulation, aluminum/polyester tape screening, and a low smoke zero halogen (LSZH) outer sheath in red or white. Suitable for wiring in building safety systems, it offers voltage ratings of 300V/500V, temperature tolerance from -40°C to +90°C, and minimal bending radius for flexible installation.
MULTICOMP-PRO MP002411 fire resistant multicore cable Specifications:
- Voltage Rating Uo/U: 300V / 500V
- Temperature Rating: -40°C to +90°C
- Minimum Bending Radius: 6 x overall diameter
- Conductor: 1.5mm² or 2.5mm² Class 1 Solid Conductor
- Insulation: High-performance fire-resistant silicone rubber
- Overall Screen: Aluminium/polyester tape (AI/PET)
- Outer Sheath: LSZH (Low Smoke Zero Halogen), Red & White
- Core Identification: Blue, Brown, Bare Earth / Black, Grey (for 3 cores), Blue, Brown, Black, Grey (for 4 cores)
- Voltage Rating: 300V / 500V
- Cross-Sectional Area: 1.5mm², 2.5mm²
- Conductor Resistance at 20°C: 12.1 Ω/km (1.5mm²), 7.41 Ω/km (2.5mm²)
- Current Rating: 24A (1.5mm², 2 cores), 33A (2.5mm², 2 cores)
- Voltage Drop (clipped direct): 30 mV/A/m (1.5mm², 3 & 4 cores), 18 mV/A/m (2.5mm², 3 & 4 cores)
Buy the Multicomp Series Fire Resistant Cables: MP002411
Enhance your electrical safety with our fire resistant multicore cable designed for critical fire alarm and emergency systems. Featuring silicone insulation and LSZH outer sheath, it ensures operation in fire conditions while meeting standards like BS 7629-1. Whether in 1.5mm² or 2.5mm² variants, these cables are ideal for building safety wiring. Easy to install with minimal bending radius, they provide reliable performance. Purchase online today for safe, compliant, and dependable fire safety wiring in commercial or residential buildings.
Buy Multicomp fire resistant multicore cable MP002411 now and experience unmatched safety and durability in fire alarm installations.
