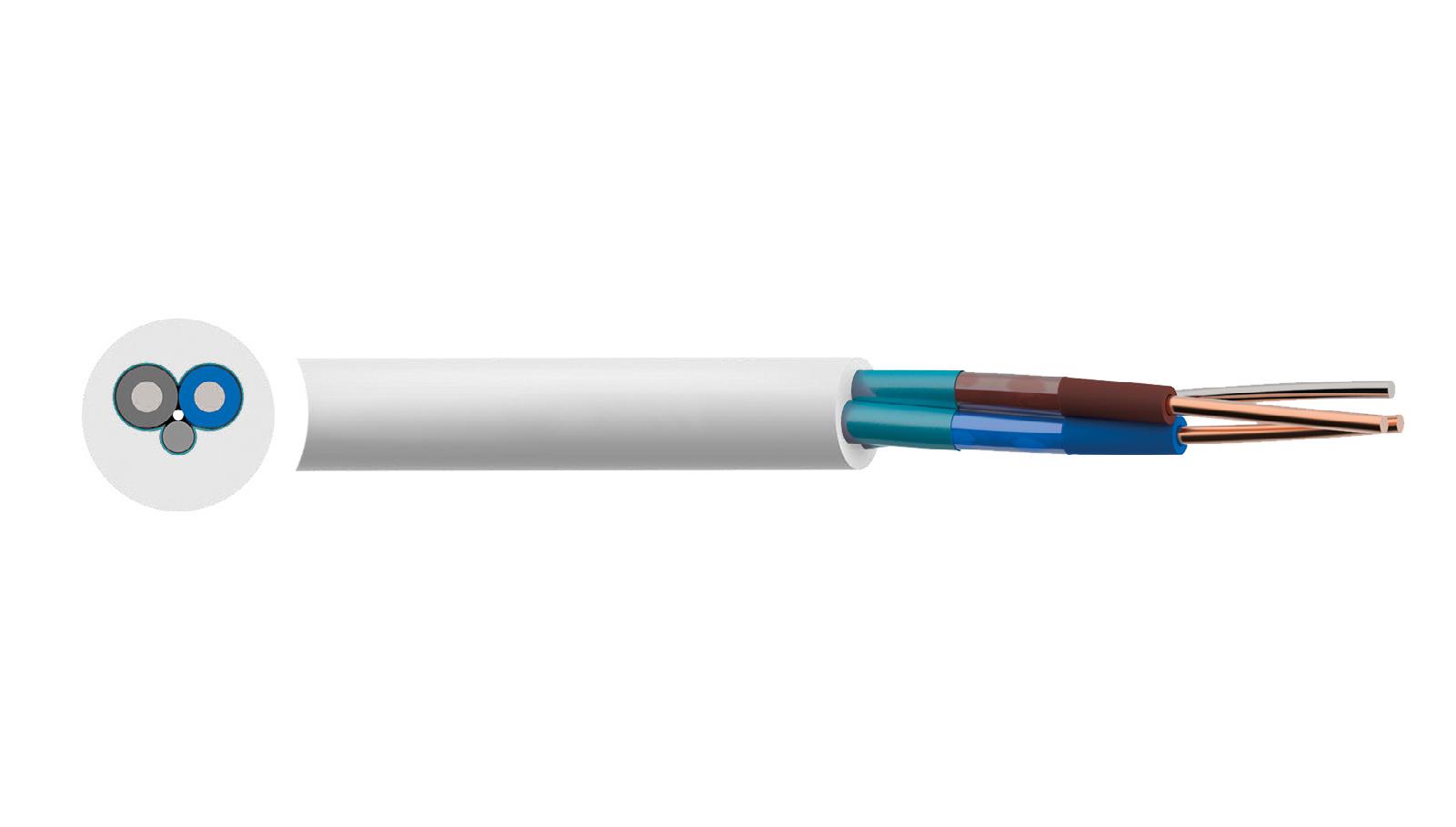

MULTICOMP PRO MP002422 fire-resistant multicore cable
This fire-resistant multicore cable features a robust construction with a high-performance silicone rubber insulation, suitable for critical fire detection, alarm, and emergency lighting circuits. It complies with rigorous standards including BS 7629-1 and BS 5839-1, ensuring safety and reliability in hazardous environments. Available in 1.5mm² and 2.5mm² cross-sectional areas, with solid conductors, and LSZH outer sheath in red or white. Designed to operate at 300V/500V, it maintains flexibility with a minimum bending radius of 6 times overall diameter, offering excellent fire resilience and electrical performance.
MULTICOMP PRO MP002422 fire-resistant multicore cable Specifications:
- Voltage Rating: 300V / 500V
- Temperature Rating: -40°C to +90°C
- Conductor: Class 1 Solid Conductor, 1.5mm² or 2.5mm²
- Insulation: High-performance fire-resistant silicone rubber
- Outer Sheath: LSZH, Red & White
- Minimum Bending Radius: 6 x overall diameter
- Construction: 2, 3, or 4 cores with core identification (Blue, Brown, Black, Grey, Bare Earth)
- Screen: Aluminium/Polyester Tape
- Standards & Approvals: BS 7629-1, BS 5839-1, BS EN/IEC 60754-1/2, BS EN 61034-2, BS EN 50200-PH30, PH60, PH90, PH120, BS 6387, BS 5266-1, BS 8519, BS EN 60228
- Resistance: conductor at 20°C 12.1-74.1 μΩ·km, insulation resistance 110-190 MΩ·km
- Current Capacity: 24A for 1.5mm², 33A for 2.5mm² in conduit or cable tray
- Voltage Drop: 18-30 mV/A/m
Buy the Multicomp MP002422 – Reliable Fire-Resistant Multicore Cables for Industrial Applications
Order the fire-resistant multicore cable today to ensure safety and compliance in critical fire alarm and emergency lighting systems. With high-performance silicone insulation, LSZH outer sheath, and solid conductors, this cable offers exceptional fire resistance, durability, and electrical reliability. Available in red or white in 1.5mm² or 2.5mm² options, it meets strict standards and approvals. Perfect for hazardous environments requiring resilient cables, purchase online now for fast delivery and peace of mind in safety-critical applications.
Get Multicomp MP002422 today—built for fire safety and electrical durability in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002422?
You can click on the BUY or RFQ button to purchase MP002422 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002422?
You can download the MP002422 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002422?
MULTICOMP PRO
