MULTICOMP PRO PP002417 Hook-Up Wire

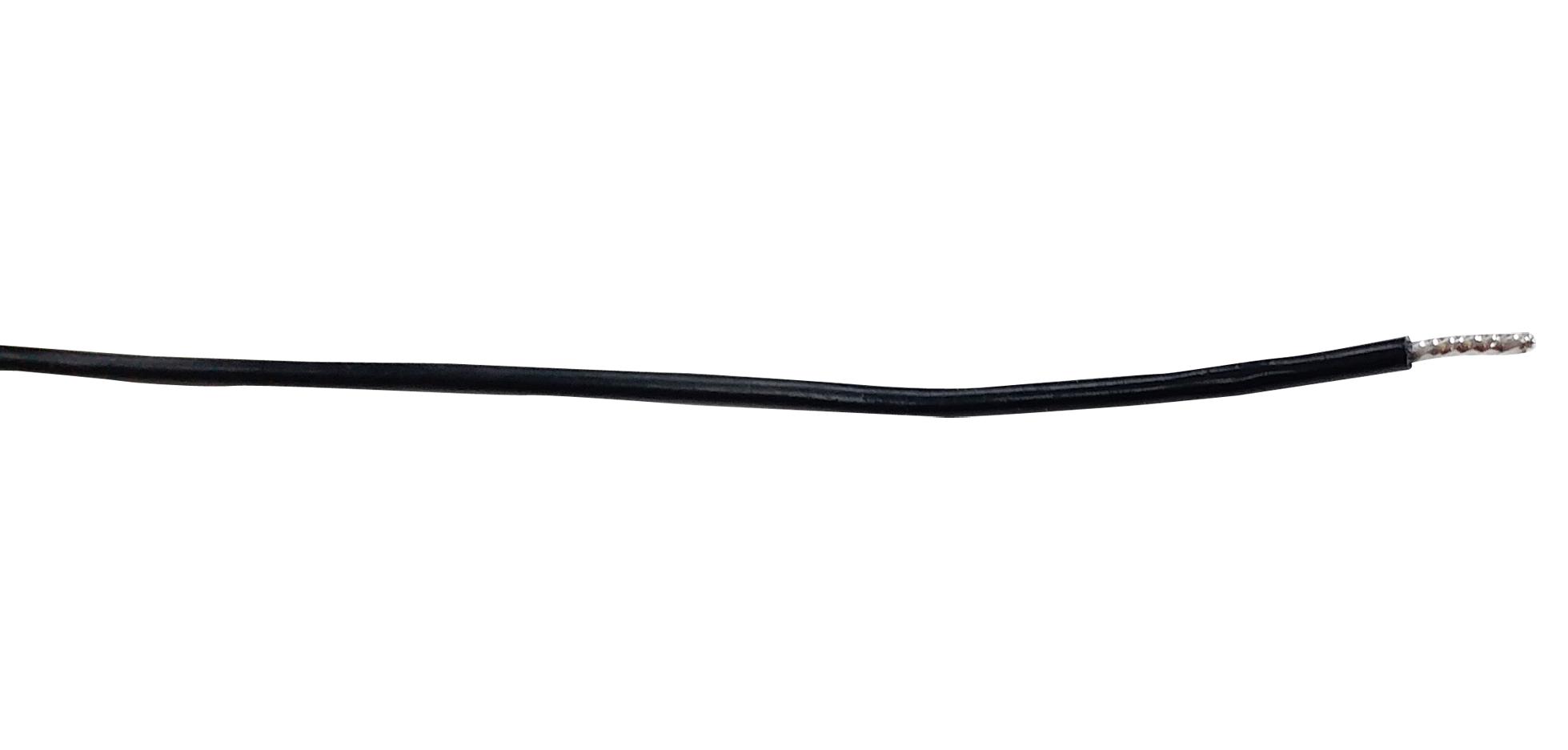

This UL1571 style stranded hook-up wire is designed for electrical interconnections in various industrial and electronic applications. Featuring tinned copper conductors and PVC insulation rated at 280°C, it provides excellent flexibility and durability. The wire is suitable for low-voltage circuits up to 30V and is available in multiple colors, including black, blue, brown, green, red, purple, white, yellow, and grey. Offered in reel lengths of 305 meters or per meter, it ensures reliable performance for wiring harnesses, control panels, and electronic devices with UL recognition for safety compliance.
MULTICOMP PRO PP002417 Hook-Up Wire Specifications:
- Conductor Material: Tinned Copper
- Insulation Material: PVC
- Rated Temperature: 280°C
- Rated Voltage: 30V
- Wire Gauge Sizes: 26 AWG to 30 AWG
- Number of Strands: 7 each for sizes 26 and 28 AWG, 7 for 30 AWG
- Conductor Diameter: 0.49 mm (26 AWG), 0.39 mm (28 AWG), 0.31 mm (30 AWG)
- Insulation Diameter: 1 mm (26 & 28 AWG), 0.9 mm (30 AWG)
- Available Lengths: 305 meters reel or per meter
- Operating Temperature Range: up to 280°C
- UL Recognized: File No. E352035
- Color Options: Black, Blue, Brown, Green, Red, Purple, White, Yellow, Grey
Buy the Farnell PP002417 U+2013 Reliable Hook-Up Wire for Industrial Applications
Discover the high-quality stranded hook-up wire available from Farnell, perfect for low-voltage electrical connections in industrial, control, and electronic devices. Featuring tinned copper conductors with PVC insulation rated at 280°C, it ensures excellent flexibility, durability, and safety. Offered in reel lengths of 305 meters or per meter, this UL-recognized wire supports a wide range of wiring applications, including harnesses, control panels, and electronic assemblies. Trust Farnell for reliable, compliant wiring solutions to enhance your project's performance and safety.
Buy Farnell PP002417 stranded hook-up wire now and enjoy reliable electrical connections in your industrial or electronics projects with UL recognition.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP002417?
You can click on the BUY or RFQ button to purchase PP002417 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002417?
You can download the PP002417 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP002417?
MULTICOMP PRO
