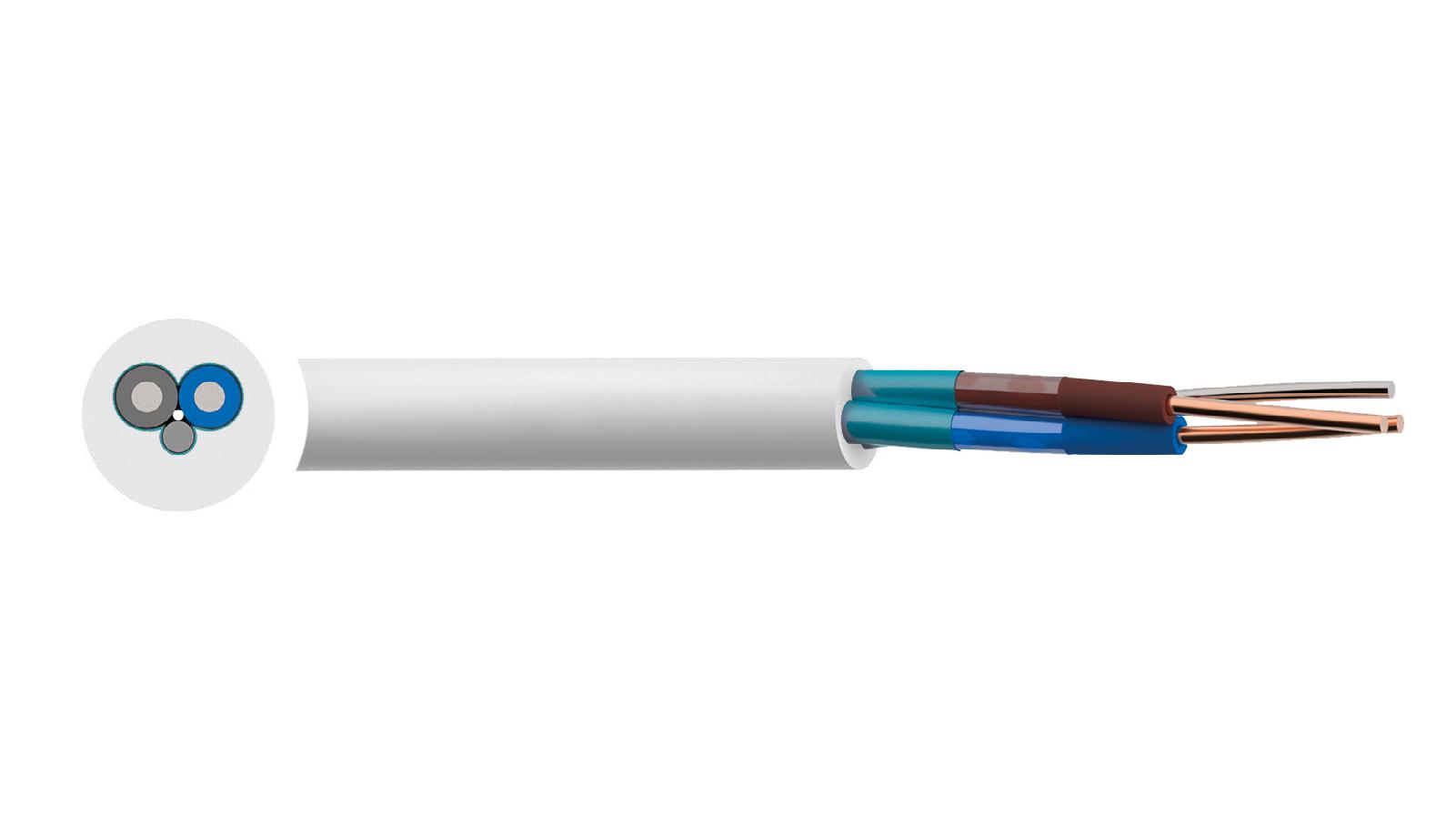

MULTICOMP PRO MP002424 Fire Resistant Multicore Cable
Enhanced fire-resistant multicore cables designed for critical fire detection, alarm, and emergency lighting systems. These cables maintain operation during fires, ensuring safety during evacuations. Constructed with Class 1 solid conductors ranging from 1.5mm² to 2.5mm², insulated with mica/glass fire-resistant tape, and covered with high-performance silicone rubber. Equipped with aluminium/polyester tape screening, tinned copper protective conductors, and LSZH outer sheaths for low smoke emissions. Suitable for varied core configurations with color coding, these cables meet multiple international standards, including BS EN IEC 60754 and BS 5266, and are BASEC certified, ensuring high safety and performance in building fire safety systems.
MULTICOMP PRO MP002424 Fire Resistant Multicore Cable Specifications:
- Voltage Rating: 300V / 500V
- Temperature Rating: -40°C to +90°C
- Core configurations: 2, 3, 4 cores plus earth
- Conductor: Class 1 Solid, 1.5mm² to 2.5mm²
- Insulation: Mica/Glass fire resistant tape with silicone rubber
- Screen: Aluminium/Polyester tape
- Protective Conductor: Tinned copper
- Outer Sheath: LSZH (Low Smoke Zero Halogen)
- Minimum Bending Radius: 6 x overall diameter
- Standards: BS 7629-1, BS 5839-1, BS EN/IEC 60754-1/2, BS EN 61034-2, BS EN 50200-PH30, PH60, PH90, PH120, BS 6387, BS 5266-1, BS 8519, BS 8434-2, BS EN 60228
- Testing & Certification: BASEC approved
- Sheath Color: Red & White
- Nominal Cross-sectional Area: 1.5mm², 2.5mm²
- Overall Diameter: Approx. 8.8mm (1.5mm²) to 10.3mm (2.5mm²)
- Weight: 105 kg/km (1.5mm²) to 165 kg/km (2.5mm²)
Buy the Multicomp MP002424 – Reliable Fire Resistant Cable for Industrial Applications
Purchase Multicomp fire-resistant multicore cables today for dependable operation in emergency fire safety systems. Designed for critical applications including fire alarms, voice alarms, and emergency lighting circuits, these cables ensure operational integrity during fires. Featuring solid conductors, mica/glass insulation, high-performance silicone rubber, and LSZH sheath, they meet strict safety standards and hold BASEC approval. With various core configurations and color coding, these cables provide flexible, reliable, and compliant solutions for building safety and fire protection, ensuring peace of mind in critical environments.
Get Multicomp MP002424 today—built for fire safety, durability, and reliable performance in critical emergency systems.
