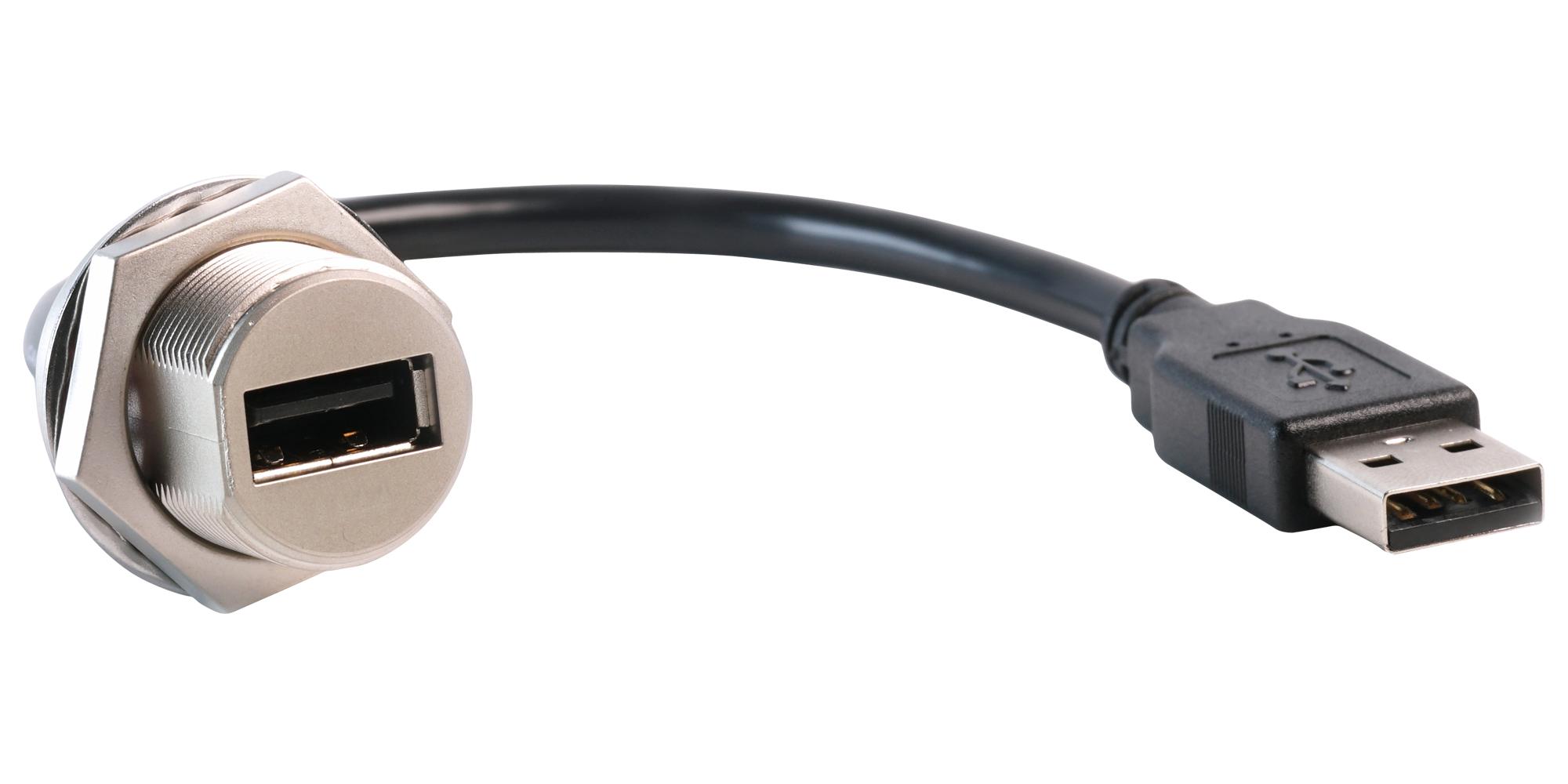

MULTICOMP PRO MP002430 USB Type A Connector
The MP USB sealed metal connector range features robust, environmentally sealed panel-mount connectors rated IP68, suitable for demanding applications. These connectors are fully rear potted for added protection, even when unmated or without the sealing cap. Available with DIP terminations or pre-wired with USB plugs or sockets, they fit a 16mm cut-out and utilize USB Type A 2.0 connections. The connectors have threaded mated coupling, gold-plated contacts for reliable connections, and are ideal for use in audio, automation and process control, as well as communication and networking applications.
MULTICOMP PRO MP002430 USB Type A Connector Specifications:
- IP Rating: IP68
- Panel Thickness: 0.8mm to 6mm
- Recommend Torque: 19 to 20Kgf-cm
- Housing Material: Zinc Alloy, Nickel Plated
- Contact Material: Copper Alloy, Gold Plated
- Cable: UL2725, 28AWG+24AWG, OD=5mm
- Housing (Plug): Thermoplastic, Black
- Shell (Plug): Cold Roll Steel, Nickel Plated
- Dust Cap Material: Copper Alloy, Ni Plated
- Dust Cap Chain: SUS 304
- Dimensions: Fits 16mm cut-out, length around 200mm (cable option)
Buy the Multicomp Pro MP002430 – Reliable USB Type A Sealed Connectors for Industrial Applications
Enhance your industrial connectivity with the durable, IP68-rated USB Type A connector range. These fully sealed, metal-bodied connectors are perfect for harsh environments. Fully rear potted for maximum protection, they support USB 2.0 connections with gold-plated contacts for reliable data transfer. Easy to install, fitting standard 16mm cut-outs, and available with pre-wired options or DIP terminations, they’re suitable for automation, audio, and communication systems. Trust in these rugged connectors for secure, long-lasting connections in demanding settings.
Buy Multicomp Pro MP002430 now and experience unmatched reliability and performance for demanding industrial, communication, and automation needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002430?
You can click on the BUY or RFQ button to purchase MP002430 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002430?
You can download the MP002430 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002430?
MULTICOMP PRO
