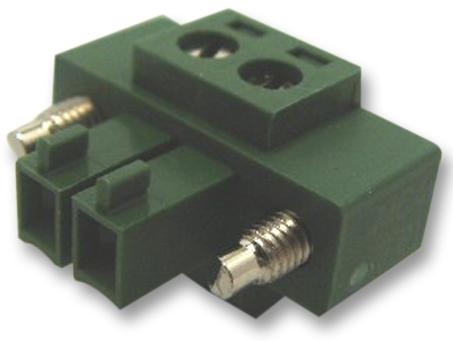

MULTICOMP PRO MC421381008 pluggable terminal block
This pluggable terminal block with flanges is designed for secure electrical connections, offering various ways from 2 to 12 based on the configuration. It features a pitch of 3.81mm (0.15 inches), rated voltage of 300 VAC, and a rated current of 10A, suitable for a range of electronic and industrial applications. Constructed from polyamide 66 with brass cage clamps and phosphor bronze contacts, it operates effectively within -40°C to +105°C. Easy to install, it ensures reliable and efficient wiring management for control panels and automation systems.
MULTICOMP PRO MC421381008 pluggable terminal block Specifications:
- Rated Voltage: 300 VAC
- Rated Current: 10A
- Wire Size: 26AWG to 16AWG (0.2mm to 1.5mm)
- Housing Material: Polyamide 66
- Cage Clamp Material: Brass, Ni Plated
- Contact Material: Phosphor Bronze, Tin Plated
- Screw Size: M2, Steel, Ni Plated
- Operating Temperature Range: -40°C to +105°C
- Torque: 3 Ib-Inch
- Pitch: 3.81mm (0.15 Inches)
Buy the Multicomp Series Locking Plugs: MC421381008
Purchase the Multicomp MC421381008 pluggable terminal block online today and enhance your wiring efficiency. Its durable polyamide housing, brass cage clamp, and tin-plated contacts ensure long-term reliable performance. With a pitch of 3.81mm and rated up to 300VAC and 10A, it is ideal for control panels, automation, and industrial applications. Its easy-to-install design with secure locking features provides a dependable connection solution for various electronic systems. Order now for quick delivery and seamless integration.
Buy Multicomp MC421381008 now and experience reliable secure connections for your industrial wiring needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC421381008?
You can click on the BUY or RFQ button to purchase MC421381008 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC421381008?
You can download the MC421381008 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC421381008?
MULTICOMP PRO
