MULTICOMP PRO MP002438 USB Connector
The MP USB sealed metal connectors and adaptors are engineered for demanding environments, offering IP68 protection against dust and water ingress. These panel-mount connectors are fully rear potted, enhancing durability even when unmated or sealed with the cap removed. They come with options including DIP terminations and pre-wired USB plugs or sockets, with a 16mm panel cut-out fit. Featuring threaded mating and gold-plated contacts, they are ideal for audio, automation, process control, communications, and networking applications, ensuring reliable, high-performance connections in harsh conditions.
MULTICOMP PRO MP002438 USB Connector Specifications:
- IP Rating: IP68
- Panel Thickness: 0.8mm to 6mm
- Recommend Torque: 19 to 20Kgf-cm
- Housing Material: Zinc Alloy, Ni Plated
- Receptacle Material: Copper Alloy, Au Plated
- Shell Material: Stainless Steel, Non Finish
- O-Ring Material: Silicone, Red
- Dimensions: 16mm panel cut-out diameter, detailed in datasheet
- Contact Type: USB 3.0, Au Plated
- Cable Assembly: UL2725, 200mm length, black, 5.5mm OD

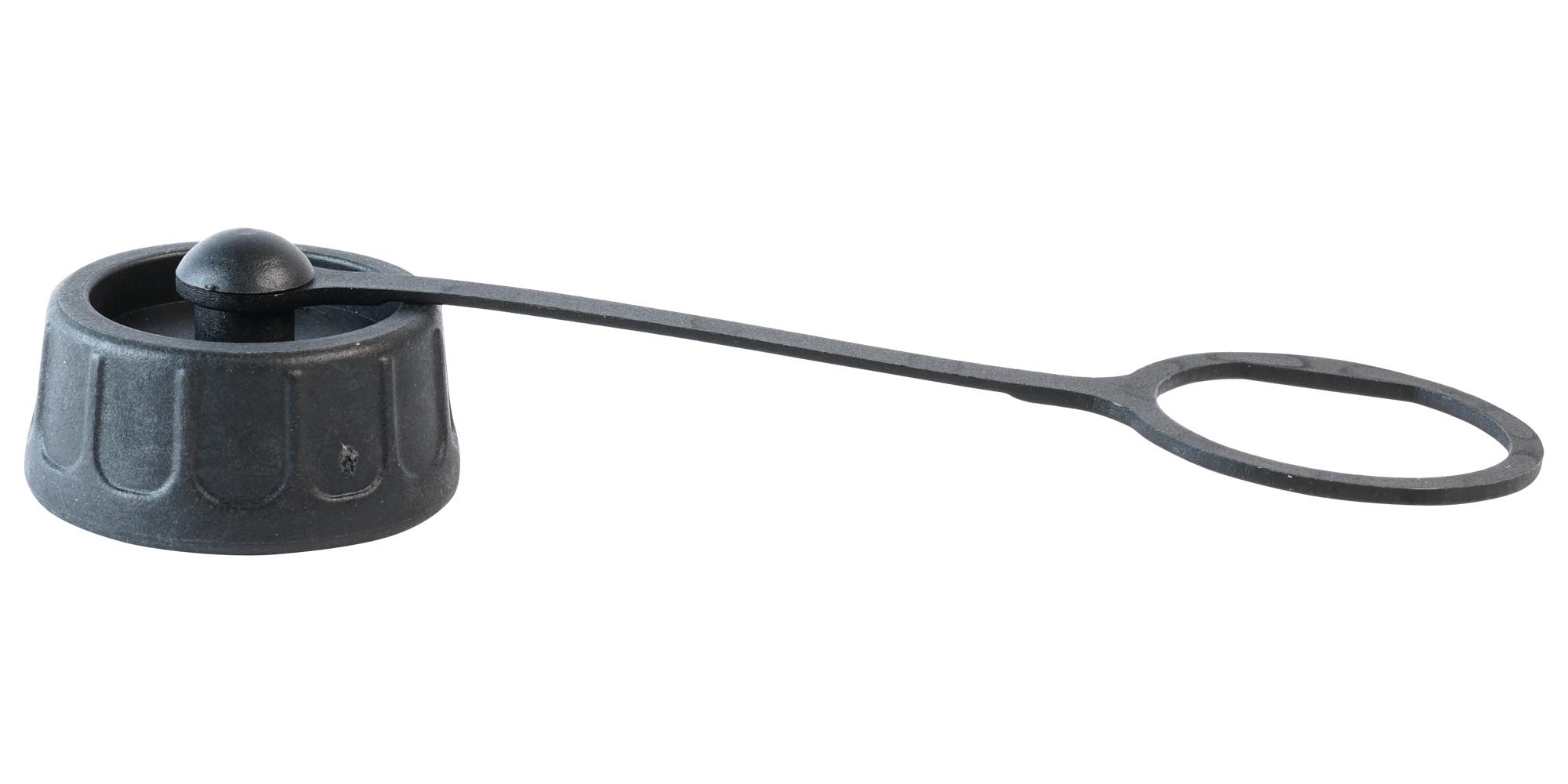

- Dust Cap Material: Thermal Plastic, Black
- Seal: Environmental IP68 rated
- Threaded Mating: Yes, 13/16”-28 UN
- Temperature rating: Suitable for industrial environments
Buy the MultiComp IP68 Sealed USB Connector – Reliable USB Type A for Industrial Applications
Purchase the MultiComp MP002438 USB sealed connector online today and enjoy reliable, waterproof connections suitable for demanding industrial environments. Designed with IP68 protection, it features gold-plated contacts, robust zinc alloy housing, and a 16mm panel cut-out fit, making it ideal for automation, networking, and communication systems. Fully rear potted for durability, it supports DIP terminations and pre-wired configurations. Ensure your project benefits from high-quality, environmentally sealed USB connections that stand up to dust, water, and harsh conditions. Order now for fast delivery and technical support.
Buy MultiComp MP002438 sealed USB connector now and ensure reliable, waterproof connectivity for industrial and automation projects.
