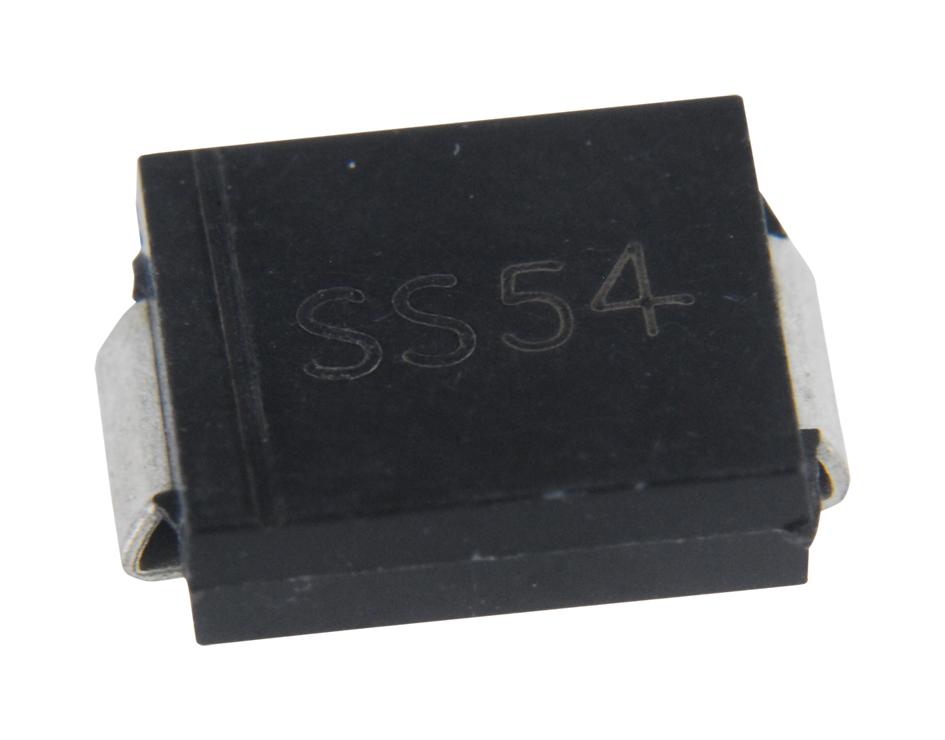

MULTICOMP PRO SS54 Schottky Barrier Rectifier
The SS54 is a Schottky Barrier Rectifier Diode designed for low voltage and high-frequency applications such as inverters, freewheeling, and polarity protection. It features a surface-mount package, a metal-semiconductor junction with a guard ring, and epitaxial construction. The diode offers a low forward voltage drop and high current capability, making it suitable for power management applications. This component supports a reverse voltage of 40V and a forward current of 5A, with a plastic casing rated for UL flammability class 94-0, ideal for compact, reliable electronic circuits.
MULTICOMP PRO SS54 Schottky Barrier Rectifier Specifications:
- Reverse Voltage : 40V
- Forward Current : 5 Amperes
- Case : Moulded plastic
- Polarity : Colour band denotes cathode
- Weight : 0.007 oz, 0.21 g
- Maximum Recurrent Peak Reverse Voltage : 40V
- Maximum RMS Voltage : 40V
- Maximum DC Blocking Voltage : 40V
- Maximum Average Forward Rectified Current : 5A at TL = 95°C
- Peak Forward Surge Current : 8.3 ms Single Half Sine-wave
- Max. Forward Voltage at 5A DC : 0.55V
- Max. DC Reverse Current at 25°C : 50 μA
- Operating Temperature Range : -55°C to +125°C
- Storage Temperature Range : -55°C to +150°C
- Typical Junction Capacitance : 3 pF at 1 MHz
- Thermal Resistance (junction to ambient): Data available externally
Buy the Buy Multicomp Schottky Barrier Rectifier Part Number SS54 Online
Purchase the Multicomp SS54 Schottky Barrier Rectifier diode online now to secure a high-performance component crucial for low voltage, high-frequency applications. With a reverse voltage of 40V and a forward current of 5A, this diode features a durable plastic moulded case, UL flammability classification 94-0, and epitaxial construction for enhanced reliability. Its low forward voltage drop and high current handling capacity make it perfect for inverters, freewheeling, and polarity protection circuits, providing your projects with trusted power efficiency and stability.
Order your Multicomp SS54 Schottky Rectifier Diode today and ensure high-efficiency power management in your electronic circuits with reliable switching performance.
