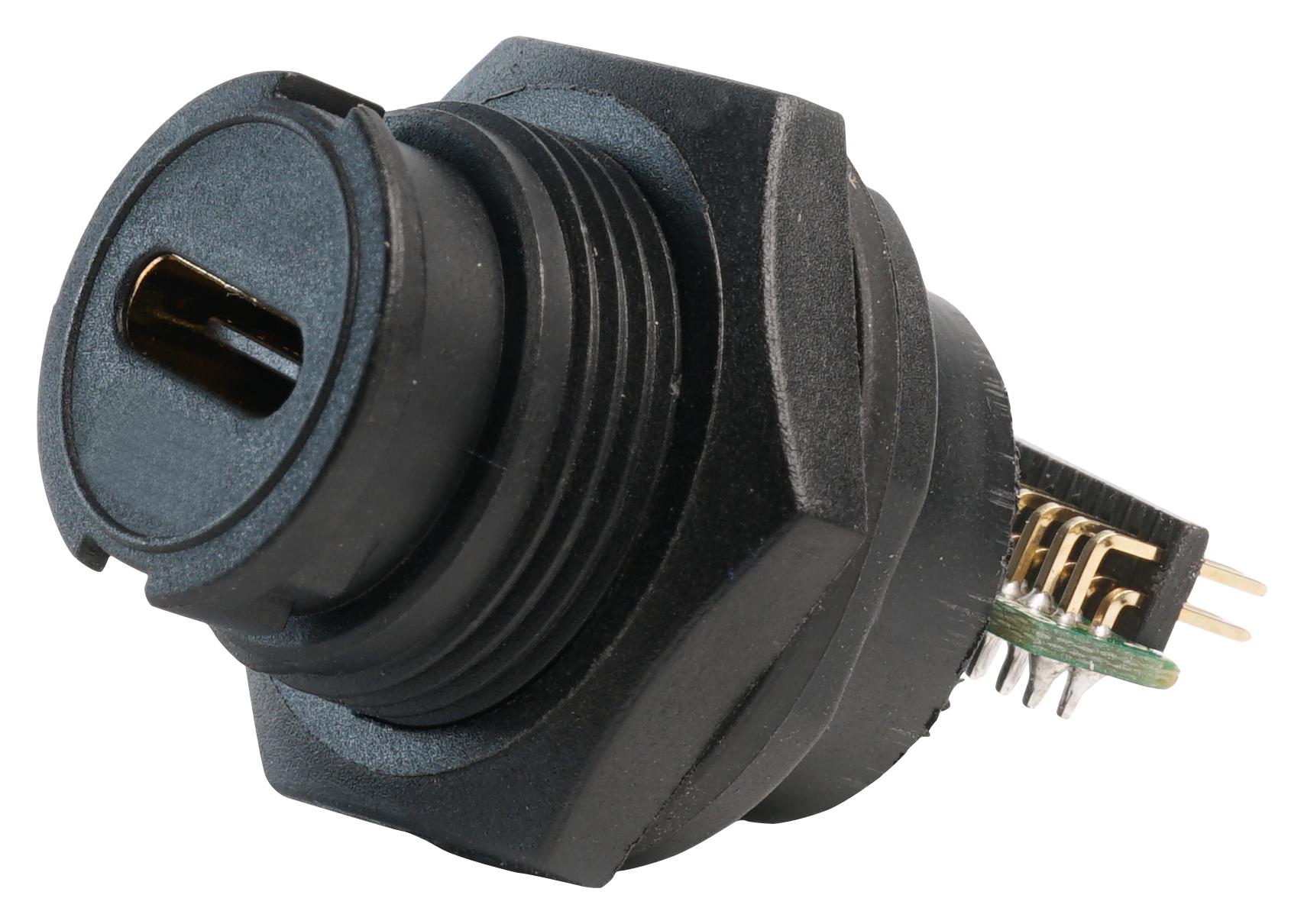

MULTICOMP PRO MP002444 USB Type C Sealed Connector
The MP USB sealed plastic connector range offers robust, IP67-rated environmentally sealed panel-mount connectors suitable for demanding environments. Featuring rear potted design, gold-plated contacts, and bayonet-style mating, these connectors are perfect for audio, automation, process control, and communication applications. They support panel thicknesses from 0.8mm to 3mm and are available with DIP or pre-wired USB Type C 3.1 plugs and sockets. Designed for 16mm panel cut-outs, they ensure reliable, secure connections even in harsh conditions, ideal for industrial and networking use.
MULTICOMP PRO MP002444 USB Type C Sealed Connector Specifications:
- IP Rating: IP67 for dust and water resistance
- Panel Thickness: 0.8mm to 3mm
- Mating Style: Bayonet
- Material: Thermoplastic housing, stainless steel shell
- Contacts: Copper alloy, Au 30u" plated
- Connector Types: USB Type C male and female Solder Type
- Dimensions: Suitable for 16mm panel cut-out
- Seal: Fully rear potted, environmentally sealed
- Rated for demanding industrial applications
- Compatible with USB 3.1 specifications, supporting high data transfer rates
- Finish: Gold plating on contacts and shell for corrosion resistance
- Supports IP67 environmental protection, reliable in harsh conditions
- Cable Options: Pre-wired assembly or panel mount with male or female sockets
- Temperature Range: Compatible with operational temperatures in industrial environments
Buy the multicomp Series IP67 USB Type C Sealed Connector: MP002444
Purchase the multicomp IP67 sealed USB Type C connector MP002444 online today. Designed for rugged industrial applications, it provides superior environmental sealing, secure bayonet mounting, and gold-plated contacts for optimal performance. Whether you need a pre-wired cable assembly or panel-mount options, this high-quality connector ensures dependable connections in challenging conditions. Its IP67 rating guarantees dust and water resistance, making it ideal for automation, communications, and process control systems. Experience convenience and reliability with fast online ordering today.
Buy multicomp IP67 USB Type C Sealed Connector MP002444 now and experience unmatched reliability and high-performance data transfer for demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002444?
You can click on the BUY or RFQ button to purchase MP002444 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002444?
You can download the MP002444 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002444?
MULTICOMP PRO
