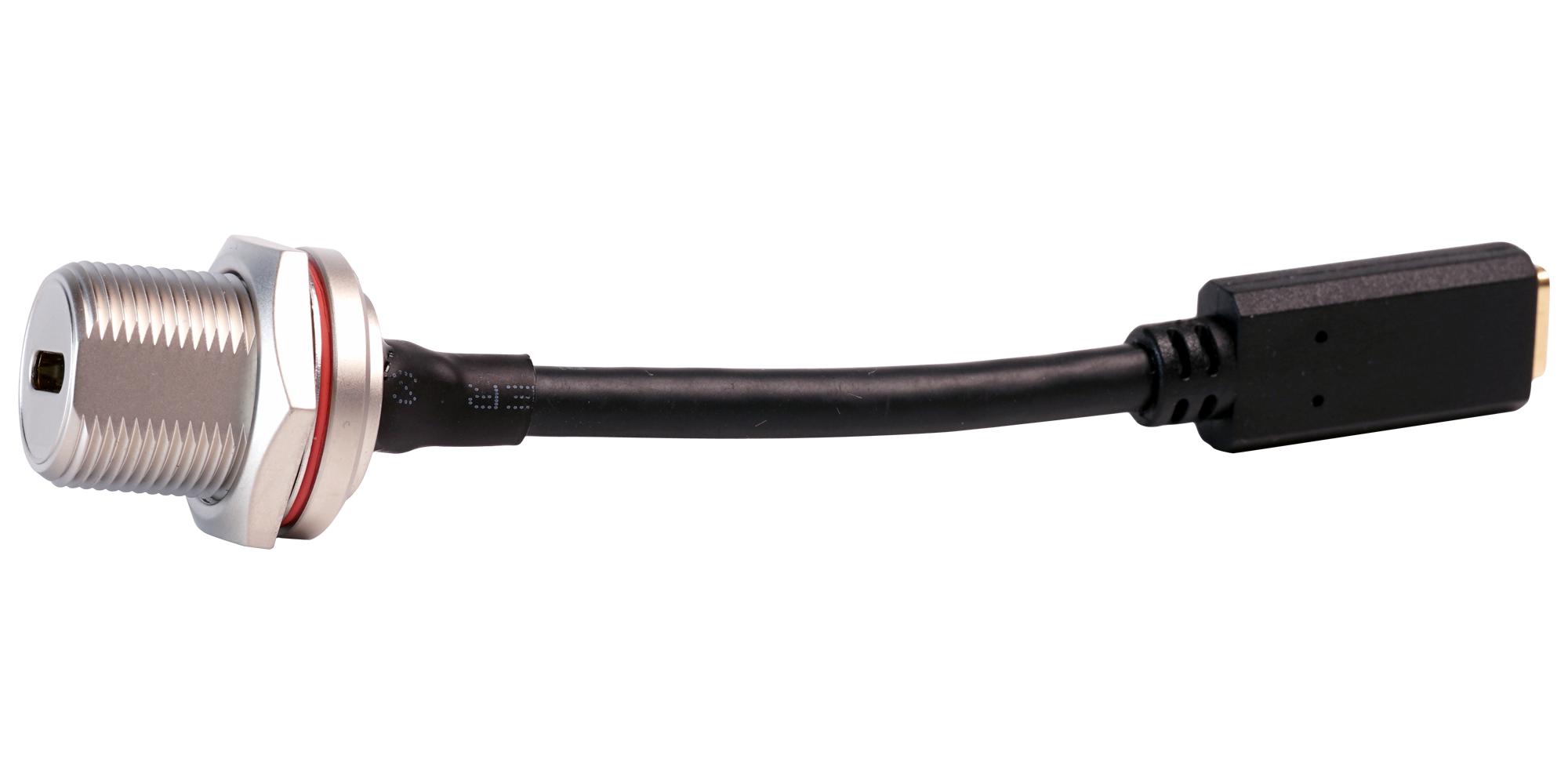

MULTICOMP PRO MP002450 USB Type C Sealed Connector
The MP USB sealed metal connectors and adaptors are robust and designed for demanding environments. These panel-mount connectors are environmentally sealed to IP68, ensuring protection even when unmated or without a sealing cap. They are fully rear potted, providing additional durability. Available with DIP terminations or pre-wired with a USB Type C 3.0 plug or socket, they feature a 16mm mounting hole, threaded mating for secure connection, and gold-plated contacts for optimal conductivity. Suitable for applications in audio, automation and process control, and communications and networking.
MULTICOMP PRO MP002450 USB Type C Sealed Connector Specifications:
- IP Rating: IP68
- Housing Material: Zinc Alloy
- Housing Finish: Nickel Plated
- O-Ring: Silicone, Red
- Dimensions: 16mm mounting hole
- Connector: USB Type C 3.1, Copper Alloy contacts, Au plated
- Shell: Stainless Steel, Au plated
- Cable Jacket: Black Thermoplastic (TPE), OD 4.8mm
- Operating Temperature: -55°C to +105°C
- Panel Thickness: 0.8mm to 6mm
- Recommended Torque: 119 to 20Kgf-cm
- Environmental Sealing: IP68
- Durability: Fully rear potted
- Other: Includes sealing cap, metal chain, and metal screw cap
- Applications: Industrial equipment, automation systems, communication, and networking
Buy the Reliable USB Type C – IP68 Sealed Connectors for Industrial Applications
Purchase the reliable and durable USB Type C sealed connectors online. Designed for demanding industrial environments, these IP68 rated connectors feature metal housing, gold-plated contacts, and secure threaded mounting. Fully rear potted and environmentally sealed, they provide excellent protection and longevity. Suitable for automation, communications, and networking applications, ensuring optimal conductivity and rugged performance. Order now for quick delivery and ensure your projects benefit from high-quality, industrial-grade USB connectors that are tested and compliant with IP68 standards.
Get Multicomp USB Type C IP68 sealed connectors today—built for durability and secure connections in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002450?
You can click on the BUY or RFQ button to purchase MP002450 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002450?
You can download the MP002450 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002450?
MULTICOMP PRO
