MULTICOMP-PRO MP002466 HDMI Sealed Connector

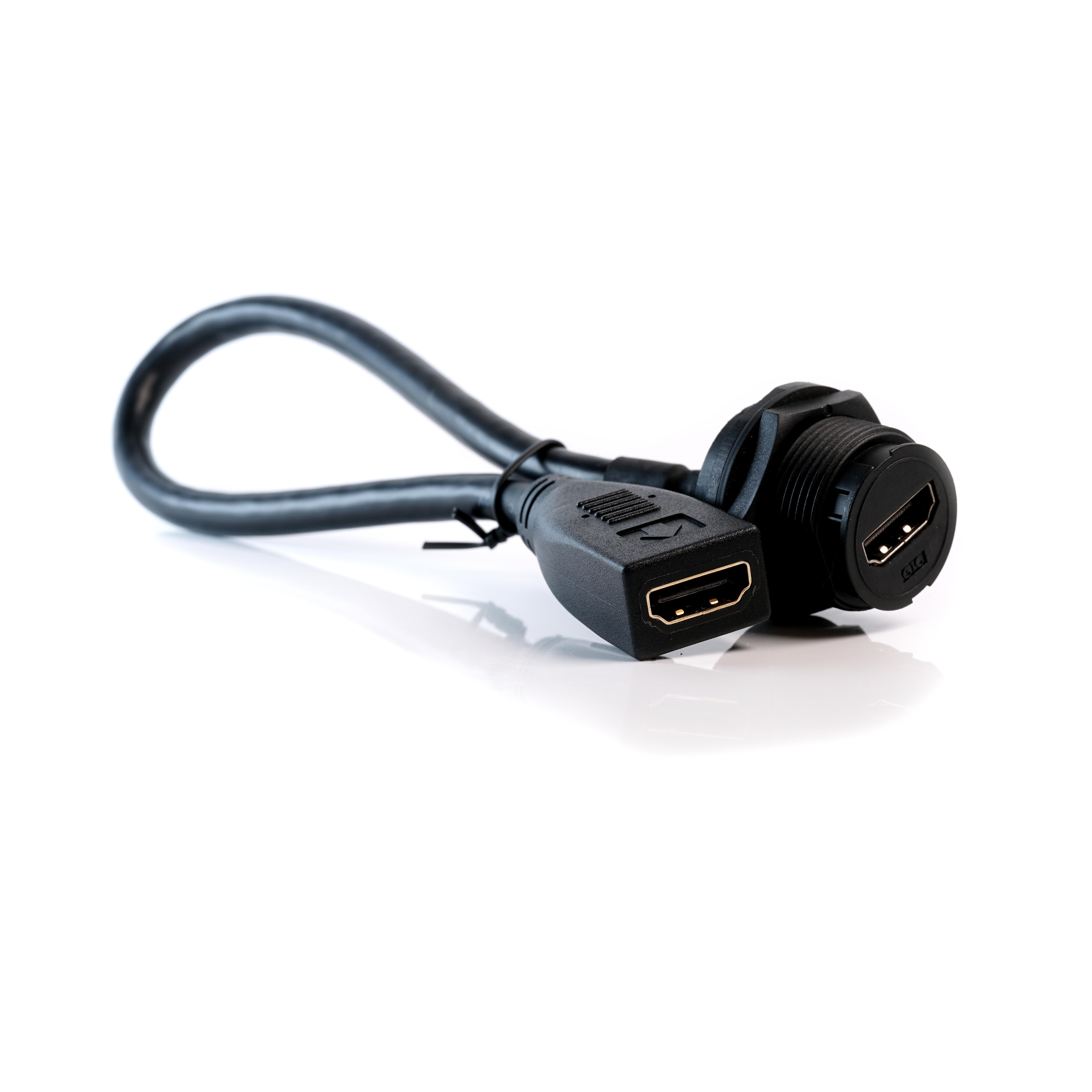

The MP plastic sealed HDMI connectors are robust, environmentally sealed connectors designed for demanding applications. Rated IP67, these panel-mount connectors feature bayonet mating and are fully rear potted to provide protection even when unmated or without a sealing cap. They are available with DIP terminations or pre-wired with HDMI plug or socket options. The connectors fit a 20.75mm cut-out and feature gold-plated contacts for enhanced durability and signal integrity. Suitable for use in automation, industrial, marine, medical, and AV systems ensuring reliability in harsh environments.
MULTICOMP-PRO MP002466 HDMI Sealed Connector Specifications:
- IP Rating: IP67
- Recommend Panel Thickness: 0.8mm to 6mm
- Recommend Torque: 119 to 20Kgf-cm
- Housing Material: Thermoplastic, Colour: Black
- Contacts: Copper Alloy, Finish: Au Plated
- Shell: Copper Alloy, Finish: Ni Plated
- Cable Diameter: OD=7.3mm
- Connector Type: HDMI 19P Female IDC
- Dimensions: Fit 20.75mm panel cut-out
- Suitable for: Automation, industrial, marine, medical, AV applications
- Construction: Fully rear potted, sealed for environmental protection
- Mounting: Panel-mount with bayonet locking
Buy the Multicomp Series HDMI: MP002466 19P Female IDC with Sealed IP67
Purchase the Multicomp IP67 HDMI sealed connector now to ensure reliable, high-quality signal transmission in harsh environments. Fully rear potted with robust thermoplastic housing and gold-plated contacts, it offers exceptional durability and environmental sealing. Perfect for automation, industrial, marine, medical, and AV applications. Easy panel mounting with a 20.75mm cut-out, designed for demanding settings requiring durable and protected HDMI connections. Buy online now to experience top-tier performance and immediate delivery for your projects.
Get Multicomp MP002466 HDMI sealed connector today—built for rugged industrial and demanding high-quality signal applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MP002466?
You can click on the BUY or RFQ button to purchase MP002466 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002466?
You can download the MP002466 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MP002466?
MULTICOMP-PRO
